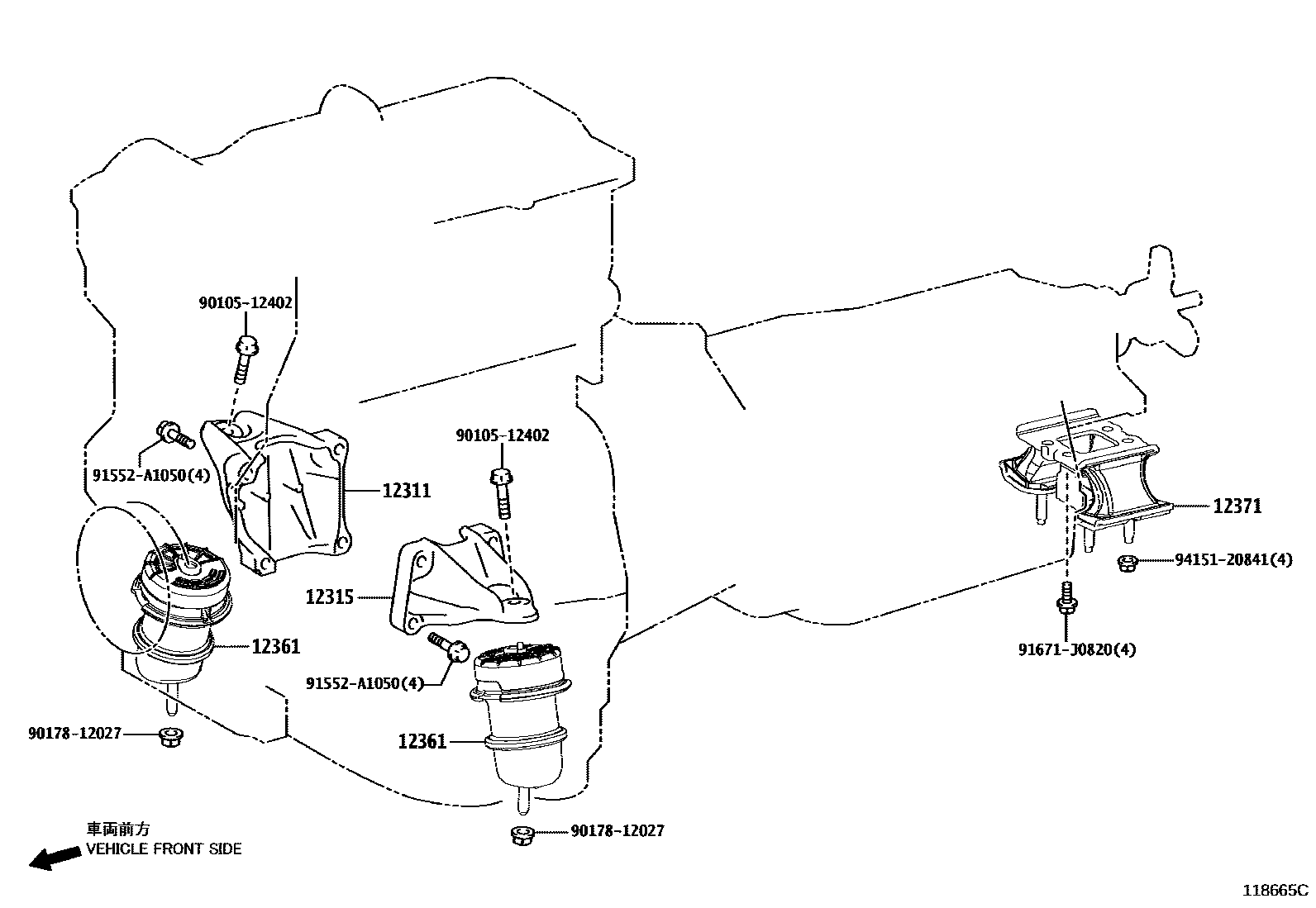

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31040i2GRFXE..GWL10201510-201809

main12311-31050i2GRFSE..GRL15201201-201510

main12311-36100i2ARFSE..AWL10201309-201510

main12311-36130i8ARFTS..ARL10201510-201809

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-31010i2GRFXE..GWL10201510-201809

main12302-31020i2GRFSE..GRL15201201-201510

main12315-31180i2GRFKS..GRL16201510-201809

main12315-36020i2ARFSE..AWL10201309-201510

main12315-36040i8ARFTS..ARL10201510-201809

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31310×2i2GRFXE,4GRFSE..GRL11,GWL10201203-201510

main12361-31320×2i2GRFSE..GRL15201201-201510

main12361-31321×2i2GRFKS..GRL16201706-201809

main12361-31430×2i2GRFXE..GWL10201510-201809

main12361-36140×2i2ARFSE..AWL10201309-201510

main12361-36141×2i2ARFSE..AWL10201706-201809

main12361-36220×2i8ARFTS..ARL10201510-201809

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31270i4GRFSE..GRL11201203-201510

main12371-31280i2GRFXE..GWL10201510-201809

main12371-31290i2GRFSE..GRL15201201-201508

main12371-31291i2GRFKS..GRL16201510-201809

9010512402

main90105-12402

9017812027

main90178-12027

91552A1050

main91552-A1050

91671J0820

main91671-J0820

9415120841

main94151-20841

9 parts on this diagram · 5 diagrams in section
