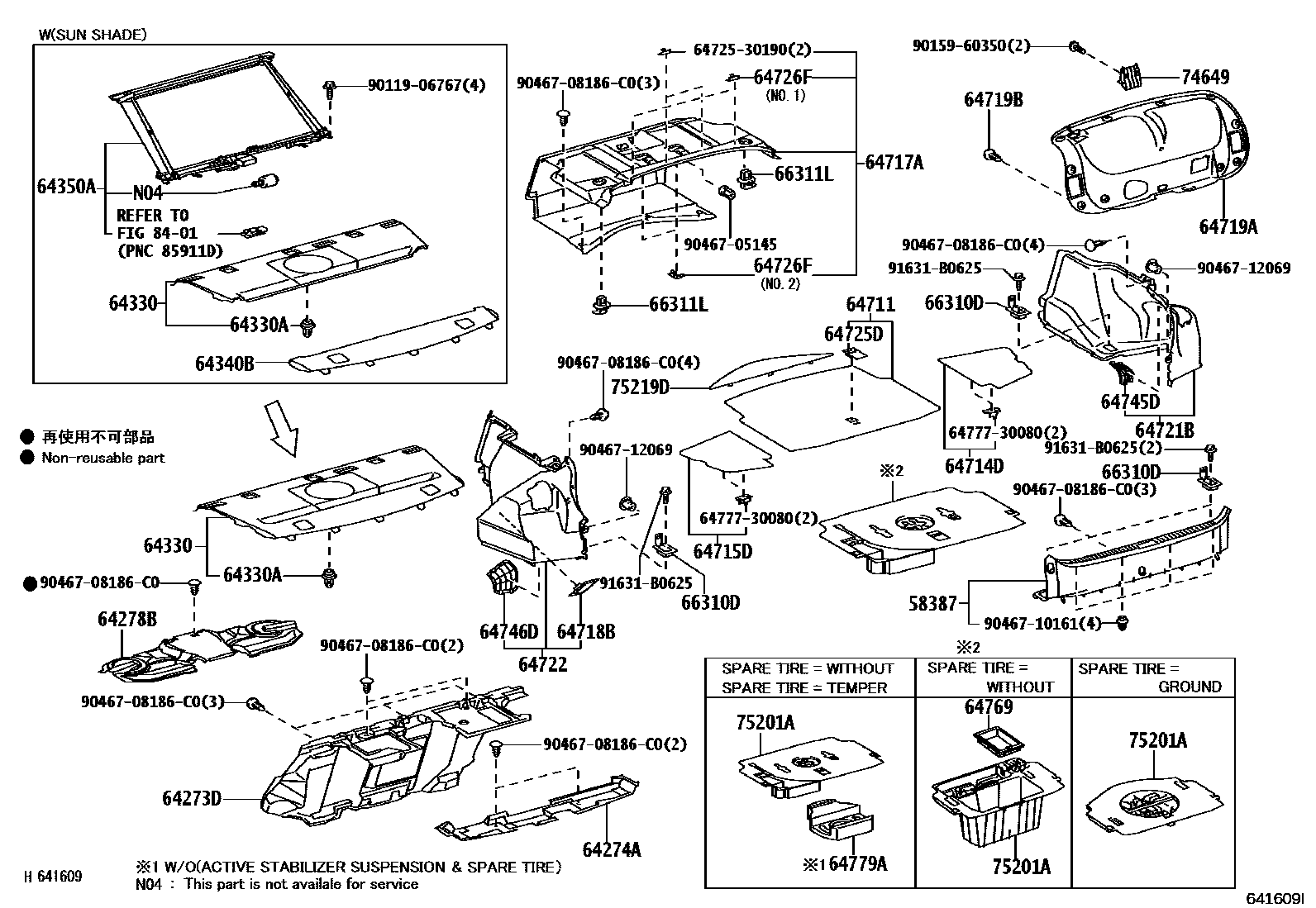

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
64273DPAD, ROOM PARTITION, NO.1
64274APAD, ROOM PARTITION, NO.2
64278BPAD, ROOM PARTITION, NO.3
64330PANEL ASSY, PACKAGE TRAY TRIM
IVORY,TRIM0#
IVORY,TRIM0#
GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,IVORY,TRIM0#
AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,IVORY,TRIM0#
AUDIO-AM/FM/LW,CASSETTE,DVD CHANGER,*MAR,IVORY,TRIM0#
AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,IVORY,TRIM0#
IVORY,TRIM0#
AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,GRAY,TRIM1#
GRAY,TRIM1#
AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
BLACK,TRIM2#
AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM2#
AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR,BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
64350ASHADE ASSY, REAR WINDOW
64711MAT, LUGGAGE COMPARTMENT FLOOR
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,1#,2#
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
NO.1
BLACK,TRIM0#,1#,2#,NO.2
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM0#,1#,2#
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM0#,1#,2#
64769CASE SUB-ASSY, TOOL BAG
main64769-30010
64779ASTOPPER, SPARE WHEEL COVER
66310DHOOK ASSY, ROPE
sub66310-30011
66311LHOOK,ROPE
BLACK,TRIM0#,1#,2#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
BLACK,TRIM0#,1#,2#
75201ABOX, TOOL
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)&TIRE & DISC WHEEL-245/40R18 RUN FLATSUMMER TIRE 8J
sub75201-30062
sub28899-31120
sub75201-30081
RUSSIA SPEC
75219DBOARD, TOOL BOX
8401
6472530190RETAINER, LUGGAGE COMPARTMENT COVER, NO.1
main64725-30190
6477730080CLAMP, SPARE WHEEL COVER
main64777-30080
9011906767
main90119-06767
9015960350
main90159-60350
9046705145
main90467-05145
9046708186C0
main90467-08186C0
9046710161
main90467-10161
9046712069
main90467-12069
91631B0625
main91631-B0625
38 parts on this diagram · 1 diagram in section
