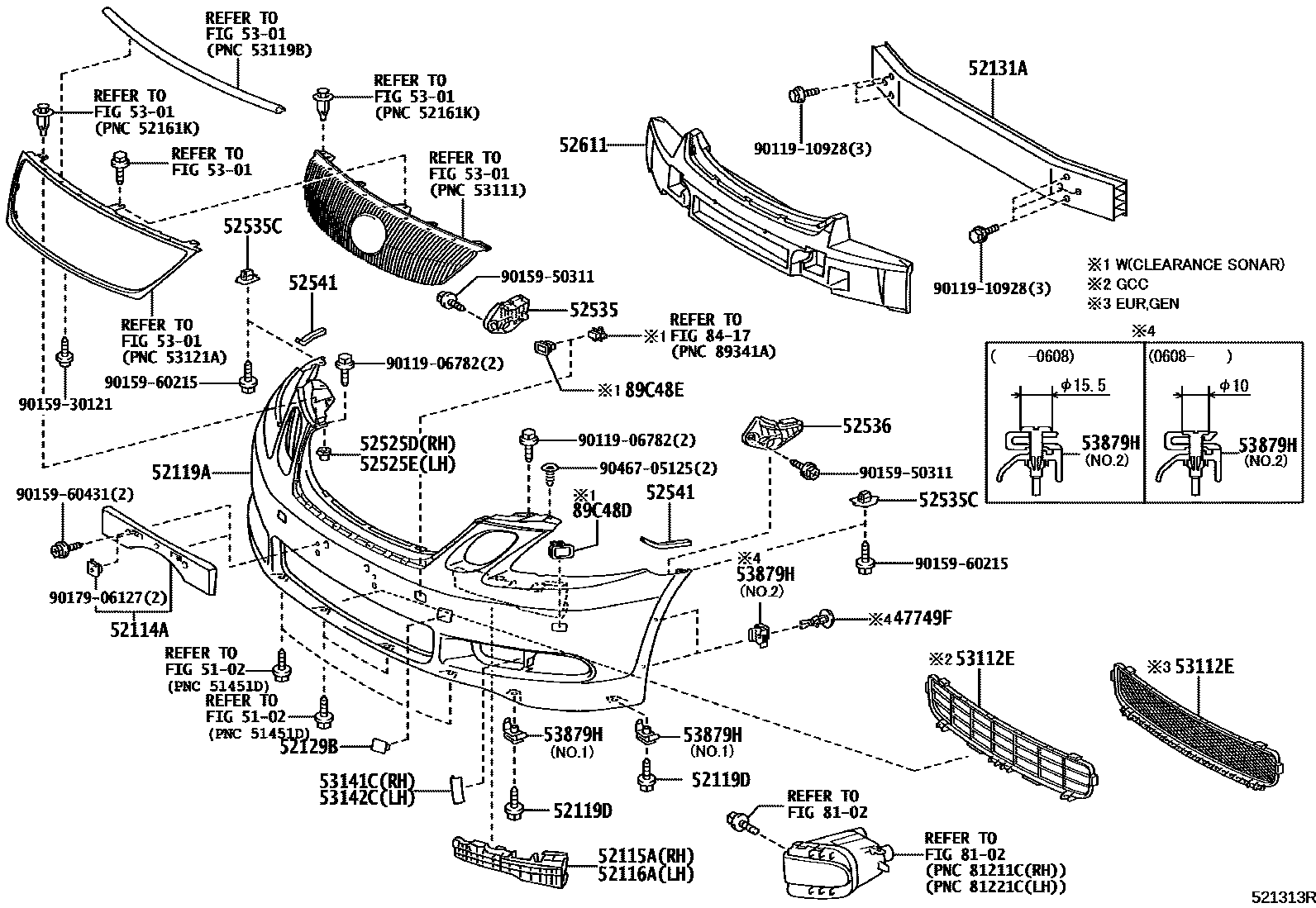

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
5102SUSPENSION CROSSMEMBER & UNDER COVER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
CHINA SPEC
CHINA SPEC
PHILIPPINE SPEC
PHILIPPINE SPEC
CHINA SPEC
AUSTRALIA SPEC
NEW ZEALAND SPEC
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,NEW ZEALAND SPEC
PAINT REQ.
PAINT REQ.,AUSTRALIA SPEC
52119DSCREW, NO.1
52129BCOVER, FRONT BUMPER, LOWER
52131AREINFORCEMENT, FRONT BUMPER
52525DRETAINER, FRONT BUMPER BRACKET, RH
52525ERETAINER, FRONT BUMPER BRACKET, LH
52535RETAINER, FRONT BUMPER SIDE, RH
52535CRETAINER, FRONT BUMPER SIDE
52536RETAINER, FRONT BUMPER SIDE, LH
52541PROTECTOR, FRONT BUMPER
52611ABSORBER, FRONT BUMPER ENERGY
5301RADIATOR GRILLE
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,PHILIPPINE SPEC&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,CHINA SPEC&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.
NO PAINT REQ.,AUSTRALIA SPEC
NO PAINT REQ.,AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.
NO PAINT REQ.,NEW ZEALAND SPEC
NO PAINT REQ.,NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH
53141CGARNISH, RADIATOR GRILLE
53142CGARNISH, RADIATOR GRILLE, NO.2
53879HRETAINER, FRONT FENDER LINER
NO.1
NO.2
NO.2
8102FOG LAMP
8417CLEARANCE & BACK SONAR
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,212
RED MC.CS.,3R1
BEIGE ME.,4T1
JADE GREEN ME.,6V0
PREMIUM LT.BLUE.,8T9
DK.BLUE MC. CC.,8U0
89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,212
RED MC.CS.,3R1
BEIGE ME.,4T1
JADE GREEN ME.,6V0
PREMIUM LT.BLUE.,8T9
DK.BLUE MC. CC.,8U0
9011906782
main90119-06782
9011910928
main90119-10928
9015930121
main90159-30121
9015950311
main90159-50311
9015960215
main90159-60215
9015960431
main90159-60431
9017906127
main90179-06127
9046705125
main90467-05125
33 parts on this diagram · 2 diagrams in section
