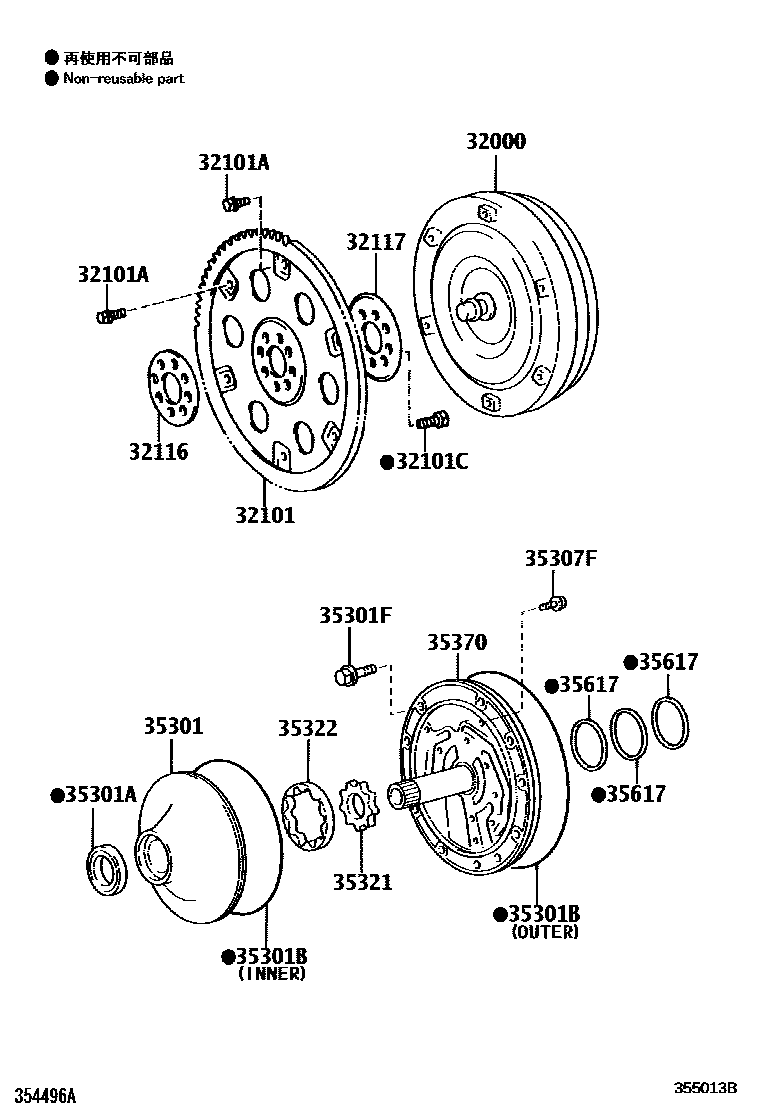

Toyota LEXUS GS30/35/43/460332 — TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
35307FBOLT (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
35322GEAR, FRONT OIL PUMP DRIVEN
15 parts on this diagram · 3 diagrams in section
TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) for Toyota LEXUS GS30/35/43/460332
This section contains 21 genuine Toyota parts for the TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) system of the Toyota LEXUS GS30/35/43/460332. Key components include: CONVERTER ASSY, TORQUE, GEAR SUB-ASSY, DRIVE PLATE & RING, BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING), BOLT, HEXAGON(FOR DRIVE PLATE SETTING), SPACER, DRIVE PLATE, FRONT.
