Toyota LEXUS GS30/35/43/460332 — MANIFOLD

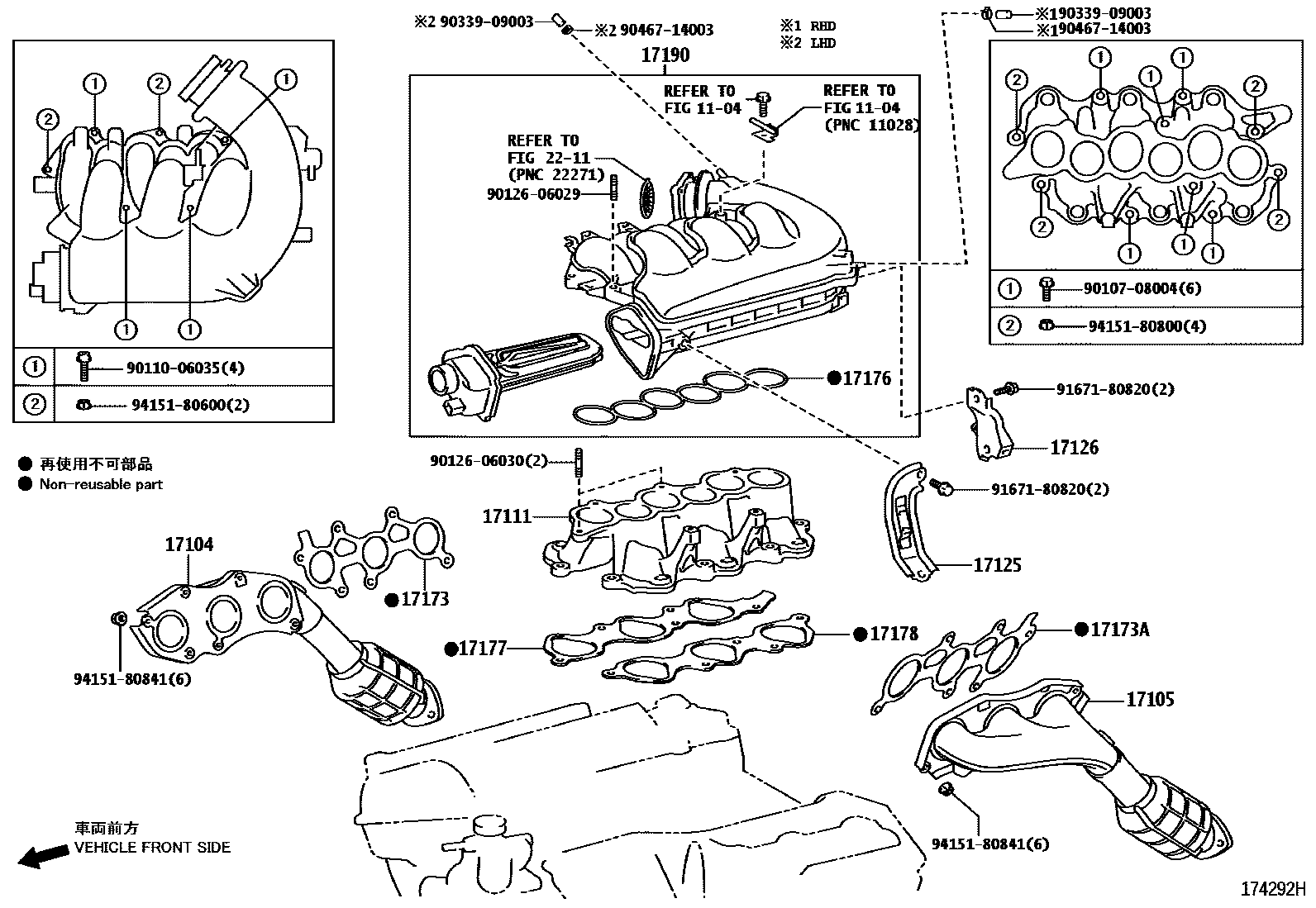

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

17104MANIFOLD SUB-ASSY, EXHAUST, RH

17105MANIFOLD SUB-ASSY, EXHAUST, LH

17111MANIFOLD, INTAKE

17125STAY, SURGE TANK, NO.1

17126STAY, SURGE TANK, NO.2

17173GASKET, EXHAUST MANIFOLD TO HEAD

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

17190TANK ASSY, INTAKE AIR SURGE

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9010708004

9011006035

9012606029

9012606030

9033909003

9046714003

9167180820

9415180600

9415180800

9415180841

23 parts on this diagram · 5 diagrams in section

MANIFOLD for Toyota LEXUS GS30/35/43/460332

This section contains 63 genuine Toyota parts for the MANIFOLD system of the Toyota LEXUS GS30/35/43/460332. Key components include: CYLINDER HEAD, COVER, ENGINE, NO.1, VACUUM PIPING, MANIFOLD SUB-ASSY, INTAKE, UPPER, MANIFOLD SUB-ASSY, EXHAUST, RH.
