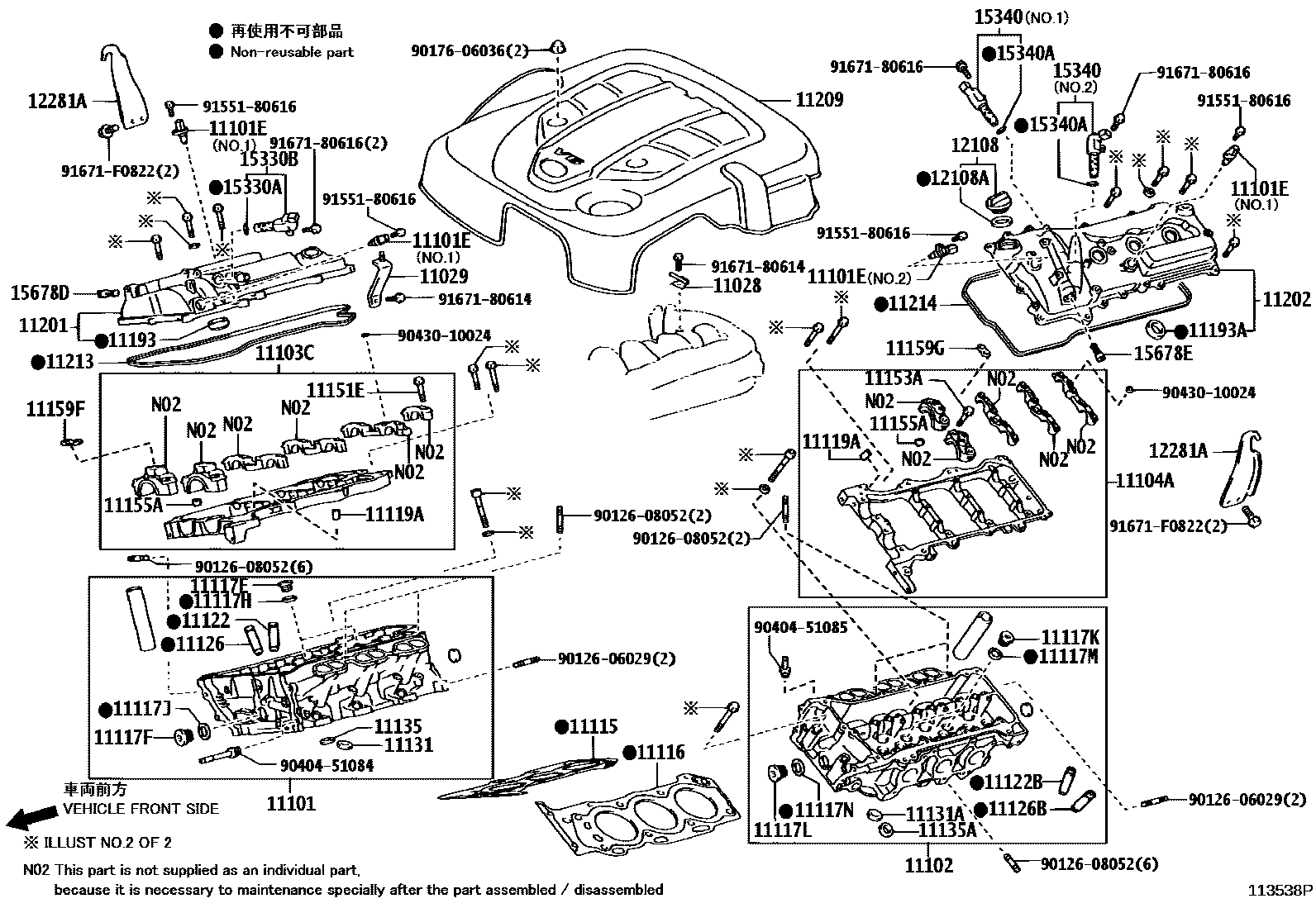

CYLINDER HEAD
11028BRACKET SUB-ASSY, V-BANK COVER, NO.2
11029BRACKET SUB-ASSY, V-BANK COVER
11101HEAD SUB-ASSY, CYLINDER
sub11101-39526
sub11101-39527
sub11101-39566
sub11101-39567
sub11101-39607
sub11101-39608
sub11101-39656
sub11101-39657
sub11101-39666
sub11101-39668
11101ESENSOR, CAM POSITION
NO.1:REFER ILLUST.
NO.1
NO.2:REFER ILLUST.
NO.2
11102HEAD, CYLINDER, LH
sub11102-39047
sub11102-39048
sub11102-39117
sub11102-39118
sub11102-39127
sub11102-39128
sub11102-39186
sub11102-39187
sub11102-39196
sub11102-39198
11103CHOUSING SUB-ASSY, CAMSHAFT, RH
sub11103-31011
sub11103-31012
sub11103-31021
sub11103-31022
sub11103-31031
sub11103-31032
sub11103-38021
11104AHOUSING SUB-ASSY, CAMSHAFT, LH
sub11104-31021
sub11104-31022
sub11104-31042
sub11104-31034
sub11104-31043
11116GASKET, CYLINDER HEAD, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11117KPLUG, W/HEAD STRAIGHT SCREW, LH NO.1
11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2
11117MGASKET(FOR WATER HOLE NO.2)
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11119APIN, STRAIGHT, NO.1
L=13.8,OD=5.0
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11131ASEAT, INTAKE VALVE, NO.2
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
11135ASEAT, EXHAUST VALVE, NO.2
STD
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
11151EBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
11153ABOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
11155APIN, RING W/HEAD
11159FGASKET, CAMSHAFT BEARING CAP OIL HOLE, RH
NO.1
NO.2
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
NO.1
NO.2
11193GASKET, SPARK PLUG TUBE
11193AGASKET, SPARK PLUG TUBE, LH
11201COVER SUB-ASSY, CYLINDER HEAD
sub11201-31231
sub11201-31232
sub11201-31241
sub11201-31242
sub11201-38061
sub11201-50041
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15330BVALVE ASSY, CAM TIMING OIL CONTROL, RH
15340VALVE ASSY, CAM TIMING OIL CONTROL, LH
NO.1
NO.1
NO.2
15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678DFILTER, OIL CONTROL VALVE, RH
15678EFILTER, OIL CONTROL VALVE, LH
9012606029
main90126-06029
9012608052
main90126-08052
9017606036
main90176-06036
9040451084
main90404-51084
9040451085
main90404-51085
9043010024
main90430-10024
9155180616
main91551-80616
9167180614
main91671-80614
9167180616
main91671-80616
91671F0822
main91671-F0822
57 parts on this diagram · 10 diagrams in section
