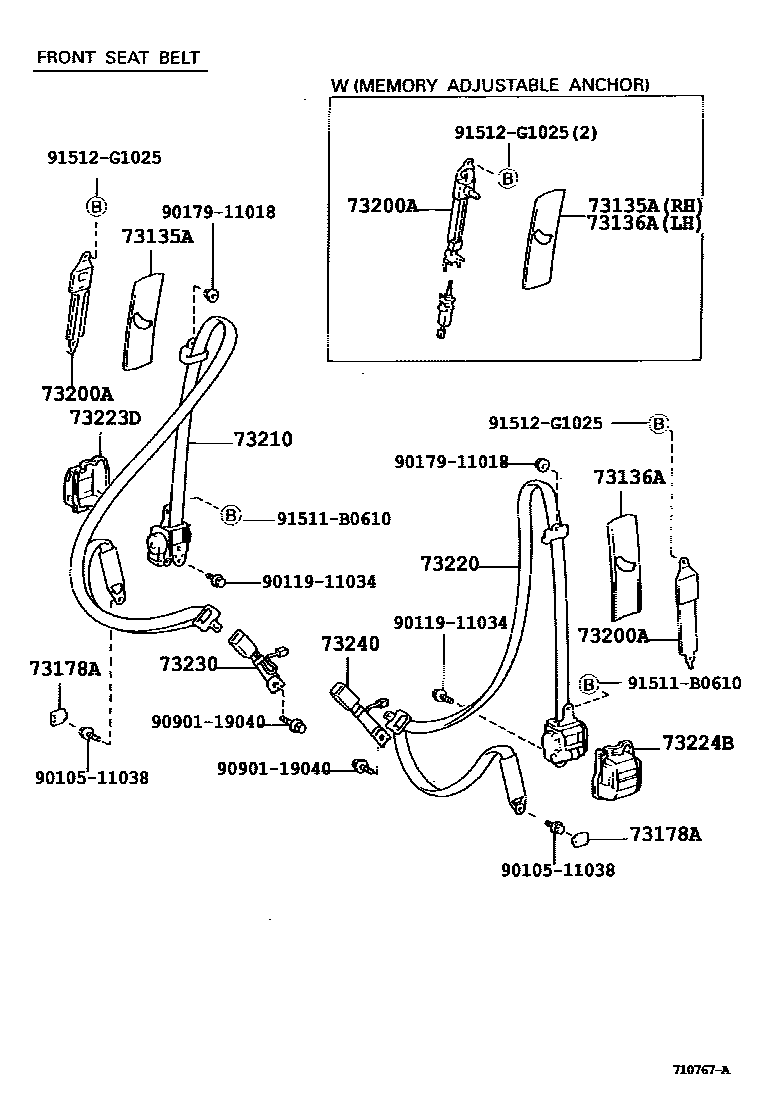

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73135-30040-A0iJZS160,UZS161199708-200501

IVORY,TRIM0#

sub73135-30040

main73135-30040-B0iUZS161;JZS160..ARL,GCC199708-200501

MD.CHARCOAL,TRIM1#,2#

sub73135-30040

main73135-30040-B0iJZS160..EUR199708-200007

MD.CHARCOAL,TRIM1#,22,23,24,25,26

sub73135-30040

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73136-30010-A0iJZS160,UZS161199708-200501

IVORY,TRIM0#

sub73136-30010

main73136-30010-B0iUZS161;JZS160..ARL,GCC199708-200501

MD.CHARCOAL,TRIM1#,2#

sub73136-30010

main73136-30010-B0iJZS160..EUR199708-200007

MD.CHARCOAL,TRIM1#,22,23,24,25,26

sub73136-30010

73178ACAP, SEAT BELT ANCHOR COVER

main73178-50010-A1iJZS160,UZS161199708-200501

IVORY,TRIM0#

sub73178-50010

main73178-50010-B3iJZS160,UZS161199708-200501

MD.CHARCOAL,TRIM1#

sub73178-50010

main73178-50010-C0iJZS160..EUR199708-200007

BLACK,TRIM22,23,24,25,26

sub73178-50010

main73178-50010-C0iUZS161;JZS160..ARL,GCC199708-200501

BLACK,TRIM2#

sub73178-50010

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-30070iJZS160,UZS161199708

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-30820iJZS160199906-199907

sub73210-30821

main73210-30820-A1iJZS160199708-199906

IVORY,TRIM0#

sub73210-30821

main73210-30820-B1iJZS160199708-199906

SHADOW GRAY,TRIM1#

sub73210-30821

main73210-30820-C2iJZS160..EUR199808-199906

BLACK,TRIM2#

sub73210-30821

main73210-30820-C2iJZS160..EUR199808-199906

BLACK,TRIM22,23,24,25,26

sub73210-30821

main73210-30821-A1iJZS160199907-200007

IVORY,TRIM0#

sub73210-30821

main73210-30821-B1iJZS160199907-200007

SHADOW GRAY,TRIM1#

sub73210-30821

main73210-30821-C2iJZS160..ARL,GCC199907-200007

BLACK,TRIM22,23,24,25,26

sub73210-30821

main73210-30821-C2iJZS160..ARL,GCC199907-200007

BLACK,TRIM2#

sub73210-30821

main73210-30850-A0iJZS160,UZS161200007-200107

IVORY,TRIM0#

sub73210-30851

main73210-30850-B0iJZS160,UZS161200007-200107

GRAY,TRIM1#

sub73210-30851

main73210-30850-C0iJZS160,UZS161200007-200107

BLACK,TRIM2#

sub73210-30851

main73210-30851-A0iJZS160,UZS161200107-200501

IVORY,TRIM0#

sub73210-30851

main73210-30851-B0iJZS160,UZS161200107-200501

GRAY,TRIM1#

sub73210-30851

main73210-30851-C0iJZS160,UZS161200107-200501

BLACK,TRIM2#

sub73210-30851

main73210-30880-B0iJZS160..LHD..EUR200303-200408

CHINA SPEC,GRAY,TRIM1#

sub73210-30881

main73210-30881-B0iJZS160..LHD..EUR200409-200501

CHINA SPEC,GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-30760iJZS160199906-199907

sub73220-30761

main73220-30760-A1iJZS160199708-199906

IVORY,TRIM0#

sub73220-30761

main73220-30760-B1iJZS160199708-199906

SHADOW GRAY,TRIM1#

sub73220-30761

main73220-30760-C2iJZS160..ARL,GCC199708-199906

BLACK,TRIM2#

sub73220-30761

main73220-30760-C2iJZS160..ARL,GCC199708-199906

BLACK,TRIM22,23,24,25,26

sub73220-30761

main73220-30761-A1iJZS160199907-200007

IVORY,TRIM0#

sub73220-30761

main73220-30761-B1iJZS160199907-200007

SHADOW GRAY,TRIM1#

sub73220-30761

main73220-30761-C2iJZS160..EUR199907-200007

BLACK,TRIM22,23,24,25,26

sub73220-30761

main73220-30761-C2iJZS160..ARL,GCC199907-200007

BLACK,TRIM2#

sub73220-30761

main73220-30800-A0iJZS160,UZS161200007-200107

IVORY,TRIM0#

sub73220-30801

main73220-30800-B0iJZS160,UZS161200007-200107

GRAY,TRIM1#

sub73220-30801

main73220-30800-C0iJZS160,UZS161200007-200107

BLACK,TRIM2#

sub73220-30801

main73220-30801-A0iJZS160,UZS161200107-200501

IVORY,TRIM0#

sub73220-30801

main73220-30801-B0iJZS160,UZS161200107-200501

GRAY,TRIM1#

sub73220-30801

main73220-30801-C0iJZS160,UZS161200107-200501

BLACK,TRIM2#

sub73220-30801

main73220-30840-B0iJZS160..LHD..EUR200303-200408

CHINA SPEC,GRAY,TRIM1#

sub73220-30841

main73220-30841-B0iJZS160..LHD..EUR200409-200501

CHINA SPEC,GRAY,TRIM1#

73223COVER, SEAT BELT RETRACTOR

main73223-30020iJZS160,UZS161199708-200501

73223DCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-30030iJZS160,UZS161199708-200501

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-30020iJZS160,UZS161199708-200501

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-30770-A0iJZS160199708-200007

IVORY,TRIM0#

sub73230-30760

main73230-30770-B1iJZS160199708-200007

DK. CHACOAL,TRIM1#

sub73230-30760

main73230-30770-C0iJZS160..ARL,GCC199708-200007

BLACK,TRIM2#

sub73230-30760

main73230-30770-C0iJZS160..ARL,GCC199708-200007

BLACK,TRIM22,23,24,25,26

sub73230-30760

main73230-30830-A0iJZS160,UZS161..LHD200007-200501

IVORY,TRIM0#

sub73230-30830

main73230-30830-B0iJZS160..LHD..EUR200007-200501

DK.CHARCOAL,TRIM1#

sub73230-30830

main73230-30830-C0iJZS160,UZS161..LHD200007-200501

BLACK,TRIM2#

sub73230-30830

main73230-30840-A0iJZS160,UZS161..RHD200007-200501

IVORY,TRIM0#

sub73230-30840

main73230-30840-B0iJZS160,UZS161..RHD200007-200501

DK.CHARCOAL,TRIM1#

sub73230-30840

main73230-30840-C0iJZS160,UZS161..RHD200007-200501

BLACK,TRIM2#

sub73230-30840

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-30770-A0iJZS160199708-200007

IVORY,TRIM0#

sub73230-30760

main73230-30770-B1iJZS160199708-200007

DK. CHACOAL,TRIM1#

sub73230-30760

main73230-30770-C0iJZS160..ARL,GCC199708-200007

BLACK,TRIM2#

sub73230-30760

main73230-30770-C0iJZS160..ARL,GCC199708-200007

BLACK,TRIM22,23,24,25,26

sub73230-30760

main73230-30830-A0iJZS160,UZS161..RHD200007-200501

IVORY,TRIM0#

sub73230-30830

main73230-30830-B0iJZS160,UZS161..RHD200007-200501

DK.CHARCOAL,TRIM1#

sub73230-30830

main73230-30830-C0iJZS160,UZS161..RHD200007-200501

BLACK,TRIM2#

sub73230-30830

main73230-30840-A0iJZS160..LHD..EUR200007-200501

IVORY,TRIM0#

sub73230-30840

main73230-30840-B0iJZS160..LHD..EUR200007-200501

DK.CHARCOAL,TRIM1#

sub73230-30840

main73230-30840-C0iJZS160,UZS161..LHD200007-200501

BLACK,TRIM2#

sub73230-30840

9010511038

main90105-11038

9011911034

main90119-11034

9017911018

main90179-11018

9090119040

main90901-19040

91511B0610

main91511-B0610

91512G1025

main91512-G1025

17 parts on this diagram · 2 diagrams in section
