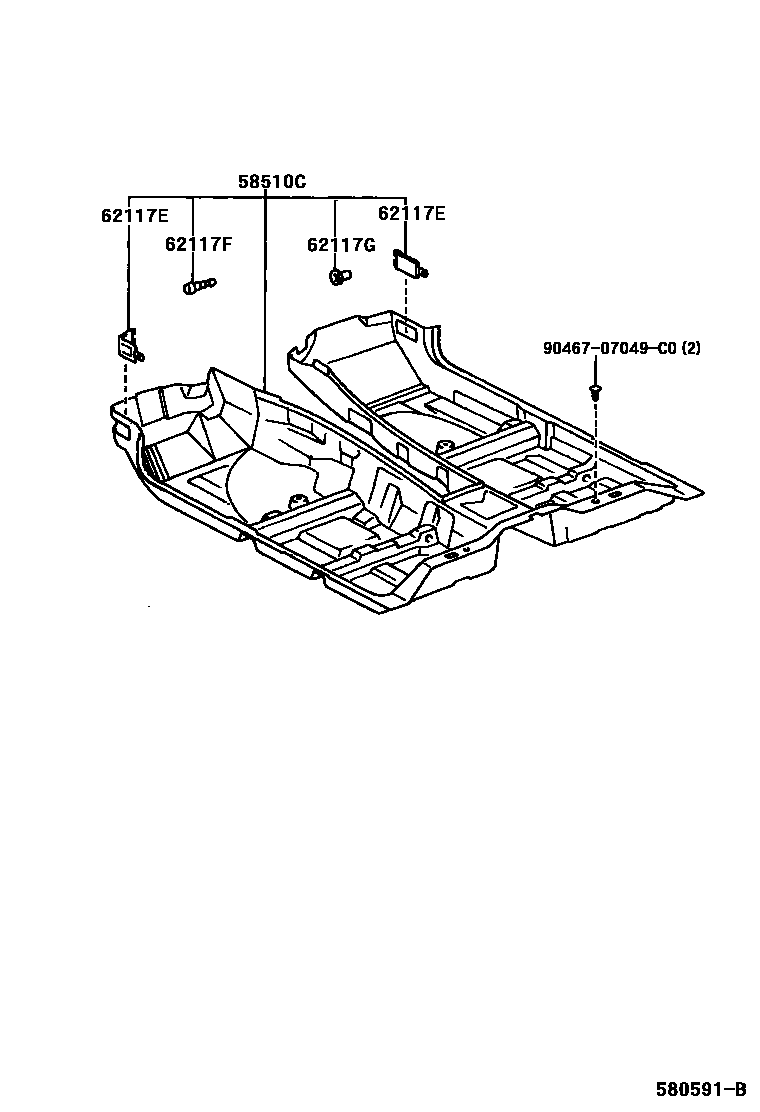

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58500-30020-A0iJZS160,UZS161..LHD200107-200501

IVORY,TRIM0#

main58500-30020-B0iJZS160,UZS161..LHD200107-200501

MEDIUM CHACOAL,TRIM1#

main58500-30020-C0iJZS160,UZS161..LHD200107-200501

BLACK,TRIM2#

main58500-30030-A0iJZS160,UZS161..RHD200107-200501

IVORY,TRIM0#

main58500-30030-B0iJZS160,UZS161..RHD200107-200501

MEDIUM CHACOAL,TRIM1#

main58500-30030-C0iJZS160,UZS161..RHD200107-200501

BLACK,TRIM2#

main58510-3K540-A0iJZS160,UZS161..LHD200007-200107

IVORY,TRIM0#

main58510-3K540-B0iJZS160,UZS161..LHD200007-200107

MEDIUM CHACOAL,TRIM1#

main58510-3K540-C0iJZS160,UZS161..LHD200007-200107

BLACK,TRIM2#

main58510-3K550-A0iJZS160,UZS161..RHD200007-200107

IVORY,TRIM0#

main58510-3K550-B0iJZS160,UZS161..RHD200007-200107

MEDIUM CHACOAL,TRIM1#

main58510-3K550-C0iJZS160,UZS161..RHD200007-200107

BLACK,TRIM2#

main58510-3K670-A0iJZS160..LHD199708-200007

IVORY,TRIM0#

main58510-3K670-B0iJZS160..LHD199708-200007

MEDIUM CHARCOAL,TRIM1#

main58510-3K670-C0iJZS160..GCC; JZS160..LHD..EUR199708-200007

BLACK,TRIM2#; BLACK,TRIM22,23,24,25,26

main58510-3K680-A0iJZS160..RHD199708-200007

IVORY,TRIM0#

main58510-3K680-B0iJZS160..RHD199708-200007

MEDIUM CHARCOAL,TRIM1#

main58510-3K680-C0iJZS160..ARL; JZS160..RHD..EUR199708-200007

BLACK,TRIM2#; BLACK,TRIM22,23,24,25,26

62117ECOVER, COWL SIDE TRIM SERVICE HOLE

main62117-30150iJZS160..RHD199708-200007

RH

main62117-30151iJZS160,UZS161..RHD200007-200107

RH

main62117-30152iJZS160,UZS161..RHD200107

RH

main62117-30160iJZS160,UZS161..RHD199708-200107

LH

main62117-30161iJZS160,UZS161..RHD200107

LH

main62117-30170iJZS160,UZS161..LHD199708-200107

RH

main62117-30171iJZS160,UZS161..LHD200107

RH

main62117-30180iJZS160..LHD199708-200007

LH

main62117-30181iJZS160,UZS161..LHD200007-200107

LH

main62117-30182iJZS160,UZS161..LHD200107

LH

62117FCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-05015-11×2iJZS160..ARL,GCC; JZS160..EUR199708-200007

BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,1#,22,23,24,25,26

main90467-05015-C0×2iJZS160,UZS161200008

BLACK,TRIM0#,1#,2#

62117GCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-08031-11×2iJZS160..ARL,GCC; JZS160..EUR199708-200007

BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,1#,22,23,24,25,26

main90467-08031-C0×2iJZS160,UZS161200008

BLACK,TRIM0#,1#,2#

9046707049C0

main90467-07049C0

5 parts on this diagram · 1 diagram in section
