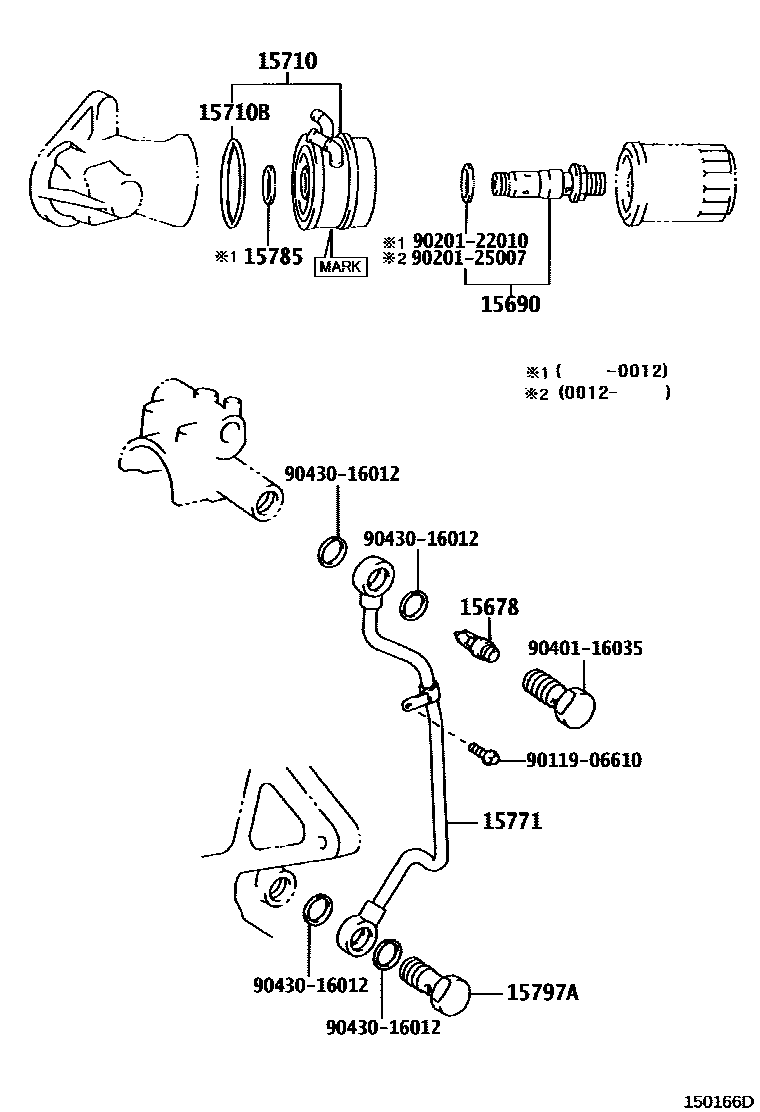

ENGINE OIL COOLER

0001 1 0002 1

15678FILTER, OIL CONTROL VALVE

main15678-46010i2JZGE..JZS160199708-199907

main15678-46020i2JZGE..JZS160199907-200501

15690VALVE ASSY, OIL COOLER RELIEF

main15690-46010i2JZGE..JZS160199708-200012

main15695-88410i3UZFE..UZS161200007-200501

main15695-88411i2JZGE..JZS160200012-200501

15710COOLER ASSY, OIL

main15710-46030i2JZGE..JZS160199708-200012

MARK = 4603

main15710-46040i2JZGE..JZS160200012-200501

MARK = 4604

main15710-50011i3UZFE..UZS161200007-200501

15710BRING, O(FOR OIL COOLER)

main90301-61004i2JZGE..JZS160199708-200012

main90301-67004i2JZGE..JZS160200012-200501

15771PIPE, OIL, NO.1

main15771-46010i2JZGE..JZS160199708-200501

15785GASKET, OIL COOLER

main15785-35010i2JZGE..JZS160199708-200012

15797ABOLT, OIL CHECK VALVE

main15797-46010i2JZGE..JZS160199708-200501

9011906610

main90119-06610

9020122010

main90201-22010

9020125007

main90201-25007

9040116035

main90401-16035

9043016012

main90430-16012

12 parts on this diagram · 2 diagrams in section
