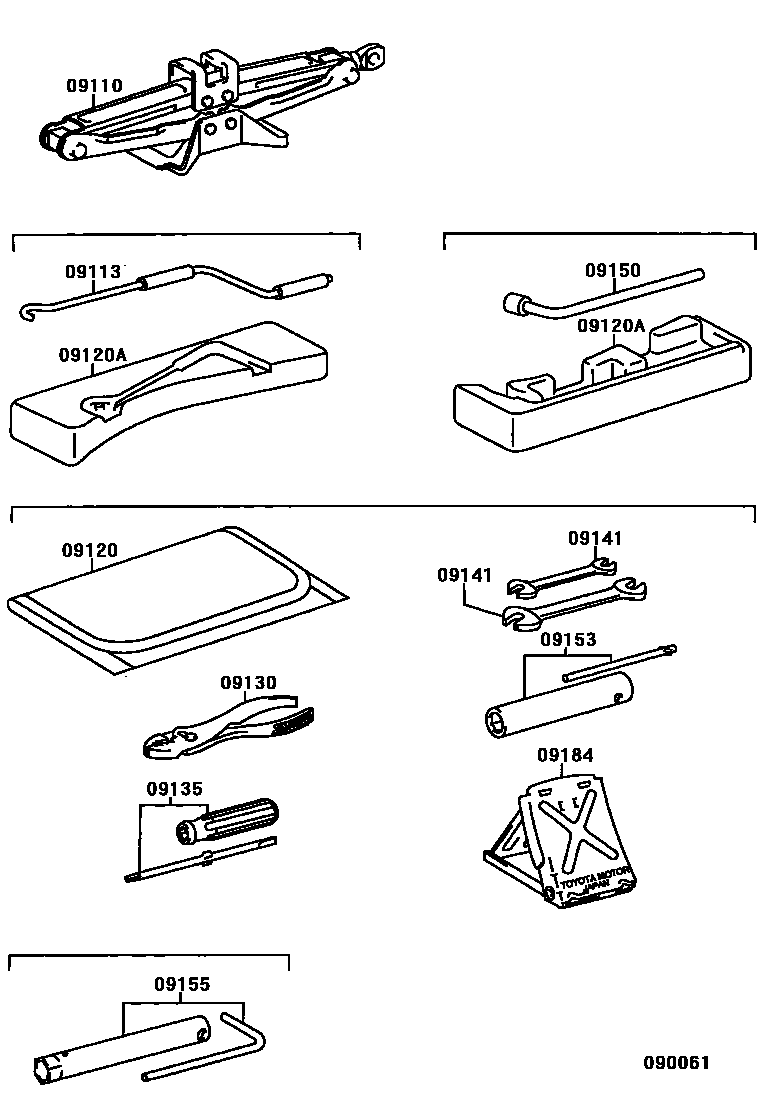

STANDARD TOOL

09110JACK ASSY

main09111-24071iJZS160..ARL200309

main09111-30120iJZS160,UZS161..EUR,GCC199708-200107

main09111-30130iJZS160..ARL199708-200107

main09111-50050iJZS160,UZS161..EUR,GCC200107-200112

sub09111-50051

main09111-50051iJZS160,UZS161..EUR,GCC200112

sub09111-76011

main09111-50060iJZS160..ARL200107-200112

sub09111-50061

main09111-50061iJZS160..ARL200112-200309

sub09110-76011

09113HANDLE, JACK

main09113-14030iJZS160199708-199909

main09113-22020iJZS160,UZS161199909

09120BAG, TOOL

main09120-24010iJZS160,UZS161199708

09120ACASE, TOOL

main09120-30090iJZS160199708-199909

FOR JACK HANDLE

main09120-30100iJZS160199708-199909

FOR HUB NUT BOX WRENCH

09130PLIERS

main09130-50030iJZS160,UZS161199708

09135DRIVER, SCREW

main09135-50040iJZS160,UZS161199708

09141SPANNER

main09141-50050iJZS160,UZS161199708

8 X 10

main09141-50060iJZS160,UZS161199708

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50010iJZS160,UZS161199708

sub09150-53010

09153WRENCH, REAR COMBINATION LAMP

main09153-74030iJZS160,UZS161..EUR199708-200501

09155WRENCH, SPARK PLUG

main09155-46010iJZS160..GCC199908-200107

main09155-74010iJZS160..GCC199708-199908

09184STOPPER, WHEEL

main09184-00010iJZS160,UZS161199708-200501

11 parts on this diagram · 1 diagram in section
