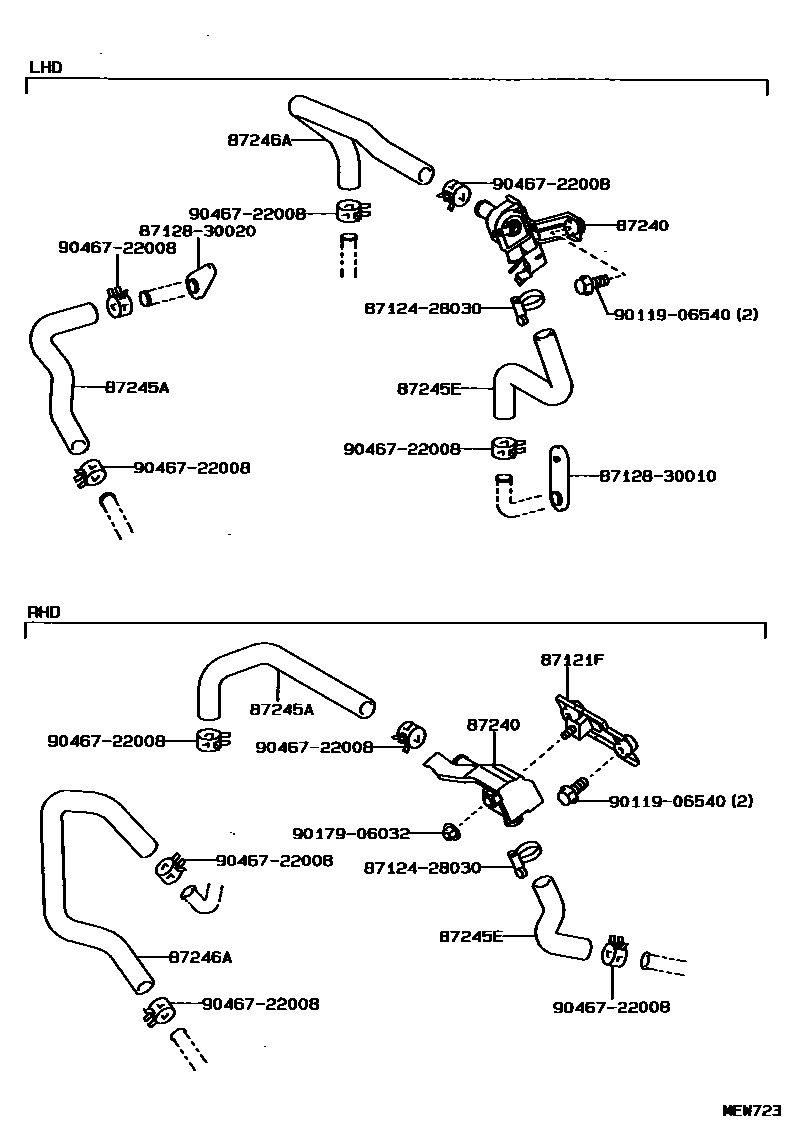

Toyota LEXUS GS300 — HEATING & AIR CONDITIONING - WATER PIPING
87121FBRACKET, HEATER
87245AHOSE, HEATER WATER, INLET A
87245EHOSE, HEATER WATER, INLET E
87246AHOSE, HEATER WATER, OUTLET A
8712428030CLAMP, HEATER
8712830010GROMMET, HEATER
8712830020GROMMET, HEATER
9011906540
9017906032
9046722008
11 parts on this diagram · 1 diagram in section
HEATING & AIR CONDITIONING - WATER PIPING for Toyota LEXUS GS300
This section contains 11 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota LEXUS GS300. Key components include: BRACKET, HEATER, VALVE ASSY, HEATER WATER, HOSE, HEATER WATER, INLET A, HOSE, HEATER WATER, INLET E, HOSE, HEATER WATER, OUTLET A.
