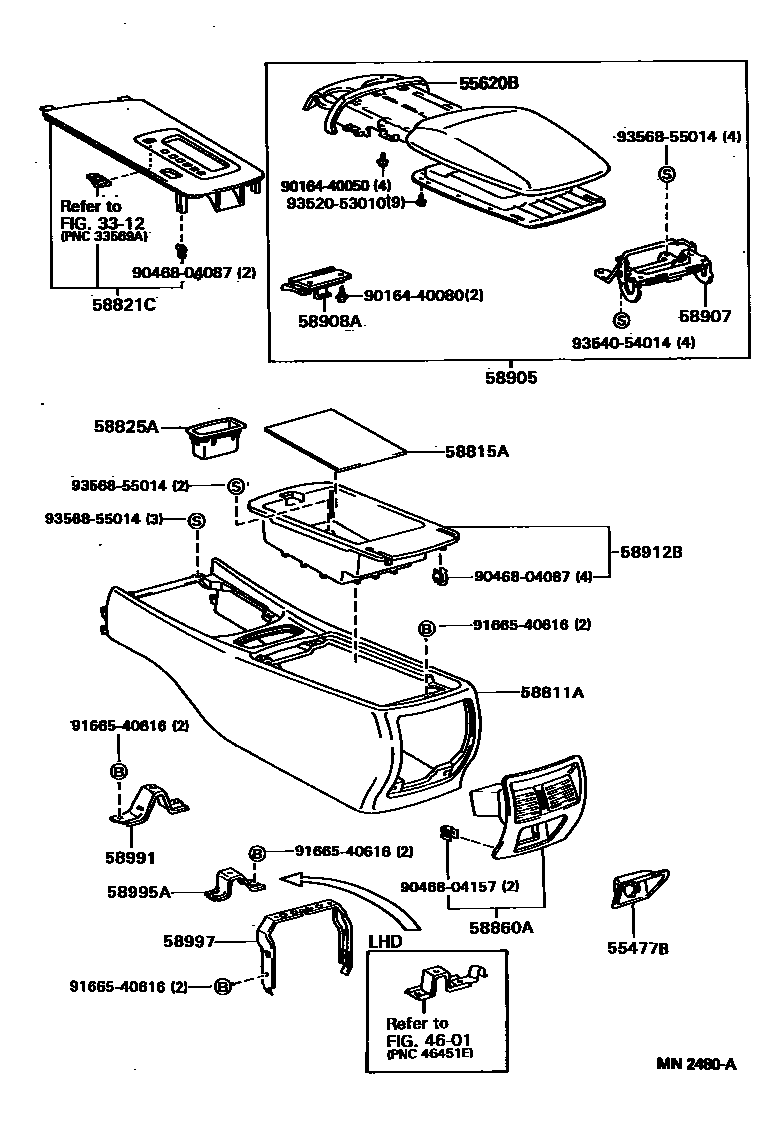

CONSOLE BOX & BRACKET
3312
4601
55477BBEZEL, CIGARETTE LIGHTER HOLE
55620BHOLDER, INSTRUMENT PANEL CUP
IVORY,TRIM0#
GRAY,TRIM1#
LI.SPRUCE,TRIM6#
IVORY,TRIM0#
GRAY,TRIM1#
LI.SPRUCE,TRIM6#
IVORY,TRIM0#
MD.GRAY,TRIM1#
SPRUCE,TRIM6#
58811ABOX, CONSOLE, FRONT
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
SPRUCE GRAY,TRIM6#
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
LI.SPRUCE,TRIM6#
58815ACARPET, CONSOLE BOX
58821CPANEL, CONSOLE, UPPER
58825APOCKET, CONSOLE BOX
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
SPRUCE GRAY,TRIM6#
58860AREGISTER ASSY, CONSOLE BOX
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
GRAY,TRIM1#
GRAY,TRIM1#
FABRIC SEAT SPEC(UK),MD.GRAY,TRIM1#
W(LEATHER SEAT),IVORY,TRIM0#
GRAY,TRIM1#
W(LEATHER SEAT),LI.SPRUCE,TRIM6#
W(LEATHER SEAT),IVORY,TRIM0#
GRAY,TRIM1#
LI.SPRUCE,TRIM6#
W(LEATHER SEAT),IVORY,TRIM0#
GRAY,TRIM1#
W(LEATHER SEAT),LI. SPRUCE,TRIM6#
W(LEATHER SEAT),IVORY,TRIM0#
W(LEATHER SEAT),MD.GRAY,TRIM1#
W(LEATHER SEAT),SPRUCE,TRIM6#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58912BBOX, REAR CONSOLE, LOWER
SHADOW GRAY,TRIM1#
SABLE,TRIM0#
SPRUCE GRAY,TRIM6#
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
9016440050
main90164-40050
9016440080
main90164-40080
9046804087
main90468-04087
9046804157
main90468-04157
9166540616
main91665-40616
9352053010
main93520-53010
9354054014
main93540-54014
9356855014
main93568-55014
24 parts on this diagram · 1 diagram in section
