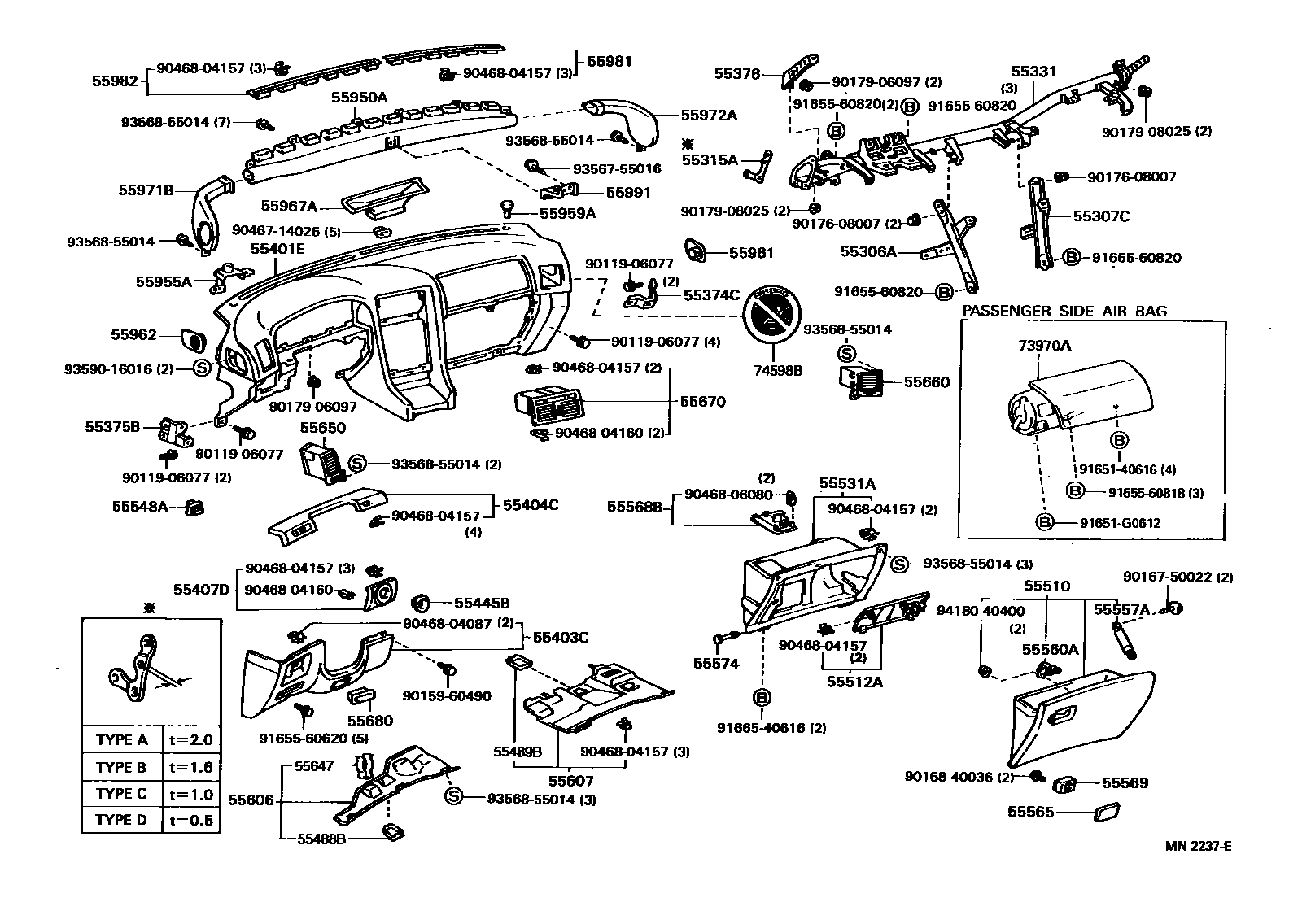

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-30200iJZS147..RHD199308-199708

main55306-30230iJZS147..LHD199303-199708

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-30140iJZS147..RHD199308-199708

main55307-30180iJZS147..LHD199303-199708

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-30050iJZS147..RHD199308-199708

TYPE A

main55315-30060iJZS147..RHD199308-199708

TYPE B

main55315-30070iJZS147..RHD199308-199708

TYPE C

main55315-30080iJZS147..RHD199308-199708

TYPE D

main55315-30090iJZS147..LHD199303-199708

TYPE A

main55315-30100iJZS147..LHD199303-199708

TYPE B

main55315-30110iJZS147..LHD199303-199708

TYPE C

main55315-30120iJZS147..LHD199303-199708

TYPE D

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-30090iJZS147..LHD199303-199708

main55330-30100iJZS147..RHD199308-199708

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-30151iJZS147..RHD199308-199708

main55374-30170iJZS147..LHD199303-199708

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-30061iJZS147..RHD199308-199708

main55375-30070iJZS147..LHD199303-199708

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-30120iJZS147..RHD199308-199708

main55376-30130iJZS147..LHD199303-199708

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-30390-B0iJZS147..LHD199303-199708

SHADOW GRAY,TRIM1#

main55401-30390-E0iJZS147..LHD199303-199708

SABLE,TRIM0#

main55401-30390-G0iJZS147..LHD199303-199708

SPRUCE GRAY,TRIM6#

main55401-30430-B0iJZS147..RHD199308-199708

SHADOW GRAY,TRIM1#

main55401-30430-E0iJZS147..RHD199308-199708

SABLE,TRIM0#

main55401-30430-G0iJZS147..RHD199308-199708

SPRUCE GRAY,TRIM6#

55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55403-30030-A0iJZS147..LHD199303-199708

IVORY,TRIM0#

main55403-30030-B0iJZS147..LHD199303-199708

GRAY,TRIM1#

main55403-30030-G0iJZS147..LHD199303-199708

LI.SPRUCE,TRIM6#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-30740iJZS147..GCC199608-199708

main55404-30750iJZS147..GCC199303-199608

main55404-30760iJZS147..RHD199308-199507

main55404-30770iJZS147..LHD..EUR199508-199708

main55404-30790iJZS147..RHD199508-199708

55407DPAD SUB-ASSY, INSTRUMENT PANEL, END

main55407-30060-A0iJZS147..LHD199303-199708

IVORY,TRIM0#

main55407-30060-B0iJZS147..LHD199303-199708

GRAY,TRIM1#

main55407-30060-G0iJZS147..LHD199303-199708

LI.SPRUCE,TRIM6#

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-30170-A0iJZS147..LHD199303-199708

IVORY,TRIM0#

main55445-30170-B0iJZS147..LHD199303-199708

GRAY,TRIM1#

main55445-30170-G0iJZS147..LHD199303-199708

LI.SPRUCE,TRIM6#

main55445-30171-A0iJZS147..RHD199308-199708

IVORY,TRIM0#

sub55445-30160

main55445-30171-B0iJZS147..RHD199308-199708

GRAY,TRIM1#

sub55445-30160

main55445-30171-G0iJZS147..RHD199308-199708

LI.SPRUCE,TRIM6#

sub55445-30160

55488BLENS, FRONT FOOT LAMP, NO.1

main55488-50010iJZS147199303-199708

55489BLENS, FRONT FOOT LAMP, NO.2

main55489-50010iJZS147199303-199708

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-30120-A0iJZS147..RHD199308-199708

IVORY,TRIM0#

main55501-30120-B0iJZS147..RHD199308-199708

GRAY,TRIM1#

main55501-30120-G0iJZS147..RHD199308-199708

LI.SPRUCE,TRIM6#

main55501-30130-A0iJZS147..LHD199303-199708

IVORY,TRIM0#

main55501-30130-B0iJZS147..LHD199303-199708

GRAY,TRIM1#

main55501-30130-G0iJZS147..LHD199303-199708

LI.SPRUCE,TRIM6#

55512APLATE, GLOVE COMPARTMENT

main55512-30090iJZS147..RHD199308-199708

main55512-30100iJZS147..LHD199303-199708

55531APANEL, GLOVE COMPARTMENT, NO.1

main55531-30181iJZS147..RHD199308-199708

main55531-30190iJZS147..LHD199303-199708

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-30110iJZS147..GCC199303-199508

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-30010iJZS147..RHD199308-199708

main55557-30050iJZS147..LHD199303-199708

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-30010iJZS147..RHD199308-199708

main55560-33010iJZS147..LHD199303-199708

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-50010-A0iJZS147199303-199708

IVORY,TRIM0#

main55565-50010-B0iJZS147199303-199708

GRAY,TRIM1#

main55565-50010-G0iJZS147199303-199708

LI.SPRUCE,TRIM6#

55568BPLATE, GLOVE COMPARTMENT DOOR FINISH

main55568-30060iJZS147..LHD199303-199708

main55568-30070iJZS147..RHD199308-199708

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-50010-A0iJZS147199303-199708

IVORY,TRIM0#

main55569-50010-B0iJZS147199303-199708

GRAY,TRIM1#

main55569-50010-G0iJZS147199303-199708

LI.SPRUCE,TRIM6#

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010iJZS147..LHD199303-199708

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-30160iJZS147..RHD199308-199708

main55606-30170iJZS147..LHD199303-199508

main55606-30180iJZS147..LHD199508-199708

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-30170iJZS147..LHD199303-199708

main55607-30190iJZS147..RHD199308-199708

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-22010iJZS147199303-199708

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-30180-B0iJZS147..RHD199308-199708

SHADOW GRAY,TRIM1#

main55650-30180-E0iJZS147..RHD199308-199708

SABLE,TRIM0#

main55650-30180-G0iJZS147..RHD199308-199708

SPRUCE GRAY,TRIM6#

main55650-30190-B0iJZS147..LHD199303-199708

SHADOW GRAY,TRIM1#

main55650-30190-E0iJZS147..LHD199303-199708

SABLE,TRIM0#

main55650-30190-G0iJZS147..LHD199303-199708

SPRUCE GRAY,TRIM6#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-30280-B0iJZS147199303-199308

SHADOW GRAY,TRIM1#

main55660-30280-E0iJZS147199303-199308

SABLE,TRIM0#

main55660-30280-G0iJZS147199303-199308

SPRUCE GRAY,TRIM6#

main55660-30290-B0iJZS147..RHD199308-199708

SHADOW GRAY,TRIM1#

main55660-30290-E0iJZS147..RHD199308-199708

SABLE,TRIM0#

main55660-30290-G0iJZS147..RHD199308-199708

SPRUCE GRAY,TRIM6#

main55660-30310-B0iJZS147..LHD199308-199708

SHADOW GRAY,TRIM1#

main55660-30310-E0iJZS147..LHD199308-199708

SABLE,TRIM0#

main55660-30310-G0iJZS147..LHD199308-199708

SPRUCE GRAY,TRIM6#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-30230iJZS147..GCC199303-199708

main55670-30260iJZS147..RHD199308-199608

sub55670-30200

main55670-30261iJZS147..RHD199608-199708

sub55670-30200

main55670-30270iJZS147..LHD..EUR199308-199708

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-89101-B1iJZS147199303-199708

SHADOW GRAY,TRIM1#

sub55680-17050

main55680-89101-E0iJZS147199303-199708

SABLE,TRIM0#

sub55680-17050

main55680-89101-G0iJZS147199303-199708

SPRUCE,TRIM6#

sub55680-17050

55950ANOZZLE ASSY, DEFROSTER

main55950-30100iJZS147..RHD199308-199708

main55950-30110iJZS147..LHD199303-199708

55955APLATE, DEFROSTER NOZZLE OPENING, NO.1

main55955-30040iJZS147..RHD199308-199708

main55956-30030iJZS147..LHD..EUR199308-199708

55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-30050iJZS147..EUR199308-199708

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-30090-B0iJZS147199303-199708

SHADOW GRAY,TRIM1#

main55961-30090-E0iJZS147199303-199708

SABLE,TRIM0#

main55961-30090-G0iJZS147199303-199708

SPRUCE GRAY,TRIM6#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-30070-B0iJZS147199303-199708

SHADOW GRAY,TRIM1#

main55962-30070-E0iJZS147199303-199708

SABLE,TRIM0#

main55962-30070-G0iJZS147199303-199708

SPRUCE GRAY,TRIM6#

55967ANOZZLE, DEFROSTER, LOWER

main55967-30030iJZS147199303-199708

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-30090iJZS147..RHD199308-199708

main55971-30100iJZS147..LHD199303-199708

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-30090iJZS147..RHD199308-199708

main55972-30100iJZS147..LHD199303-199708

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30060iJZS147..RHD199308-199708

main55981-30070iJZS147..LHD199303-199708

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-30060iJZS147..RHD199308-199708

main55982-30070iJZS147..LHD199303-199708

55991BRACKET, DEFROSTER DUCT, NO.1

main55991-30040iJZS147199303-199708

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-0W010-B0iJZS147199303-199308

GRAY,TRIM1#

sub73960-0W050

sub50540-30010

sub90179-06125

sub90269-04040

main73970-0W010-E0iJZS147199303-199308

SABLE,TRIM0#

sub73960-0W050

sub50540-30010

sub90179-06125

sub90269-04040

main73970-0W010-G0iJZS147199303-199308

LI.SPRUCE,TRIM6#

sub73960-0W050

sub50540-30010

sub90179-06125

sub90269-04040

main73970-39045-B0iJZS147..GCC199308-199708

SHADOW GRAY,TRIM1#

sub73960-0W050

sub50540-30010

sub90179-06125

sub90269-04040

main73970-39045-E0iJZS147..GCC199308-199708

SABLE,TRIM0#

sub73960-0W050

sub50540-30010

sub90179-06125

sub90269-04040

main73970-39045-G0iJZS147..GCC199308-199708

LI.SPRUCE,TRIM6#

sub73960-0W050

sub50540-30010

sub90179-06125

sub90269-04040

main73970-39055-B0iJZS147..LHD..EUR199308-199708

SHADOW GRAY,TRIM1#

sub73960-0W050

sub50540-30050

sub90179-06125

sub90269-04040

main73970-39055-E0iJZS147..LHD..EUR199308-199708

SABLE,TRIM0#

sub73960-0W050

sub50540-30050

sub90179-06125

sub90269-04040

main73970-39055-G0iJZS147..LHD..EUR199308-199708

LI.SPRUCE,TRIM6#

sub73960-0W050

sub50540-30050

sub90179-06125

sub90269-04040

main73970-39065-B0iJZS147..RHD199308-199708

SHADOW GRAY,TRIM1#

sub73960-0W060

sub50540-30020

sub90179-06125

sub90269-04040

main73970-39065-E0iJZS147..RHD199308-199708

SABLE,TRIM0#

sub73960-0W060

sub50540-30020

sub90179-06125

sub90269-04040

main73970-39065-G0iJZS147..RHD199308-199708

LI.SPRUCE,TRIM6#

sub73960-0W060

sub50540-30020

sub90179-06125

sub90269-04040

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-30040iJZS147199508-199708

9011906077

main90119-06077

9015960490

main90159-60490

9016750022

main90167-50022

9016840036

main90168-40036

9017608007

main90176-08007

9017906097

main90179-06097

9017908025

main90179-08025

9046714026

main90467-14026

9046804087

main90468-04087

9046804157

main90468-04157

9046804160

main90468-04160

9046806080

main90468-06080

9165140616

main91651-40616

91651G0612

main91651-G0612

9165560620

main91655-60620

9165560818

main91655-60818

9165560820

main91655-60820

9166540616

main91665-40616

9356755016

main93567-55016

9356855014

main93568-55014

9359016016

main93590-16016

9418040400

main94180-40400
