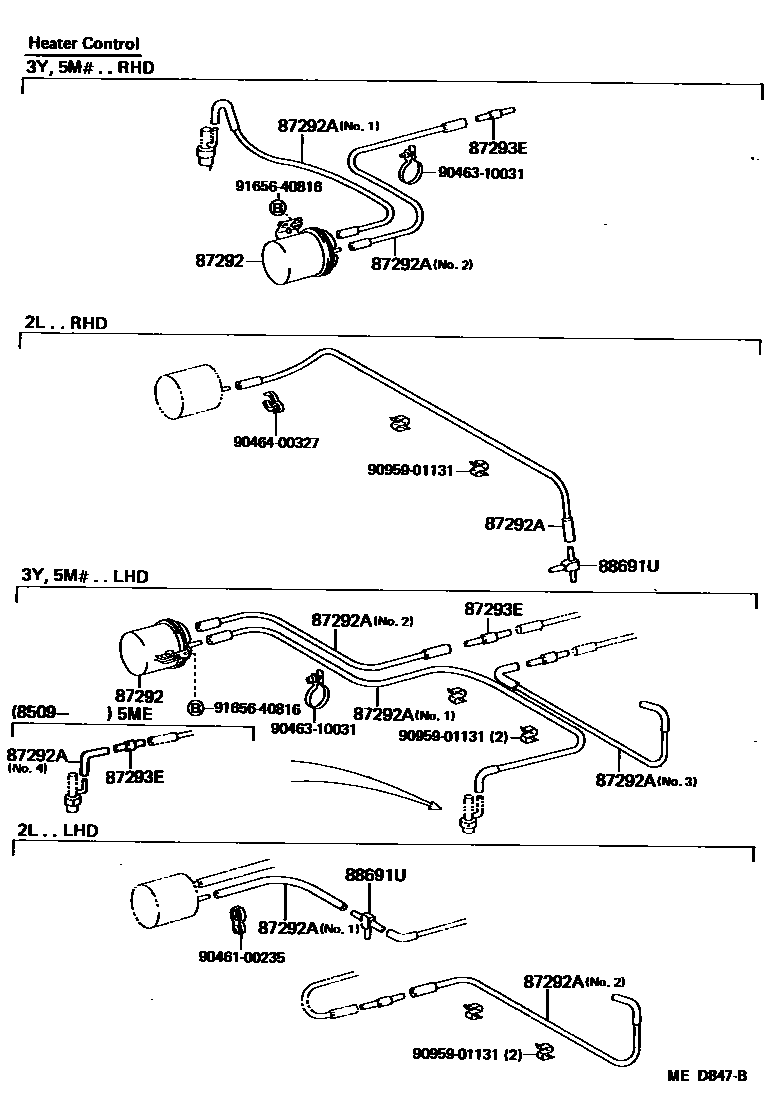

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

87292TANK, VACUUM

main87292-30290iMS122,YS120..RHD..(SAL,STD)198308-198708

main87292-30300iMS122,123,YS120..LHD..(DLX,SAL,STD)198308-198708

87292AHOSE, VACUUM TANK

main90445-06032iLS120..LHD198308-198708

NO.1

main90447-04001iMS122,YS120..RHD..(SAL,STD)198308-198708

NO.1

main90447-04002iMS122,123,YS120..LHD..(DLX,SAL,STD)198308-198708

NO.1

main90447-04003iMS122,123,YS120..DLX,SAL,STD198308-198708

NO.2

main90447-04004iLS120..RHD..(4F,5F)198308-198708

main90447-04007iMS122,123,YS120..LHD..(SAL,STD)198308-198708

NO.3

main90447-04007iMS122,123,YS120..LHD..(SAL,STD)198308-198708

NO.2

main95411-10130iMS122..HT198509-198708

NO.4,*H,L=100

87293EUNION, HOSE

main90405-04001iMS123..LHD;MS122..LHD..ROY;MS122,YS120..SAL,STD198308-198708

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-30540iMS123,125..EUG,GEN,SAA198308-198509

main88690-30550iYS120198308-198509

main88690-30560iLS120198308-198509

main88690-30630iMS125198509-198708

main88690-30650iMS122..RHD..4FC..SAL198509-198708

W/*BV,SINGAPORE SPEC

main88690-30680iLS120198509-198708

main88691-30380iMS122198308-198509

main88691-30400iMS123..ARL,SWZ198308-198509

main88691-30470iYS120198509-198708

main88691-30480iMS122..HT198509-198708

main88691-30490iMS122..SED,WG198509-198708

88691UWAY(FOR VACUUM HOSE)

main90413-03001iLS120..4F,5F;LS120..LHD..STD198308-198708

COOLER CONTROL

main90413-04001iMS122..GEN198308-198708

IDLE UP DIVICE

main90413-04005iYS120198308-198708

9046100235

main90461-00235

9046310031

main90463-10031

9046400327

main90464-00327

9095901131

main90959-01131

9165640816

main91656-40816

10 parts on this diagram · 4 diagrams in section
