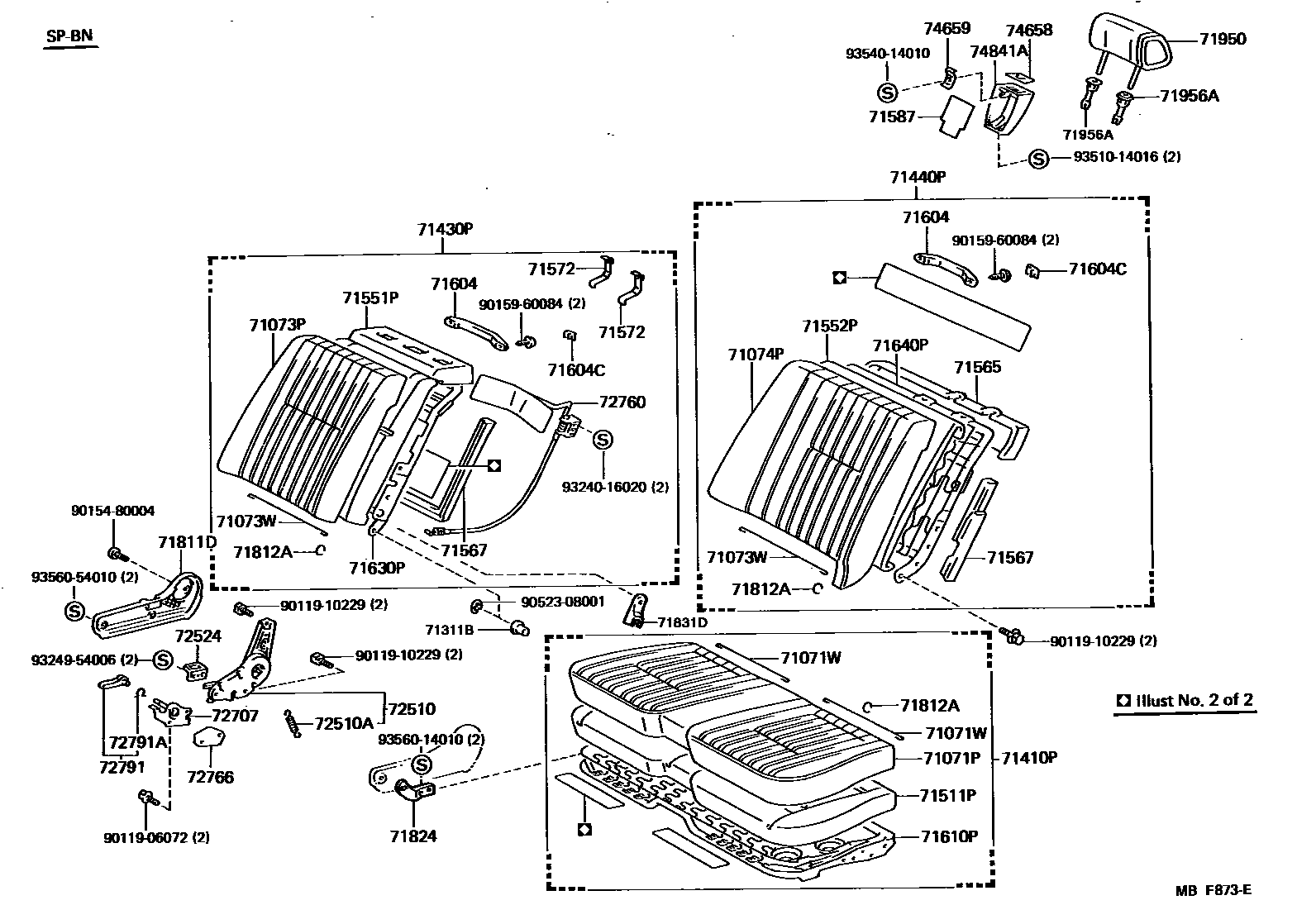

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

71071PCOVER, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE)

main71071-3A160-02iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main71071-3A160-04iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main71071-3A160-05iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,BEIGE,BEIGE,TRIM4#

main71071-3A161-02iMS125..4HC198509-198708

FB,MAROON,MAROON,TRIM3#

main71071-3A161-04iMS125..4HC198509-198708

FB,BLUE,BLUE,TRIM8#

main71071-3A161-06iMS125..4HC198509-198708

FB,BROWN,BROWN,TRIM4#

main71071-3A360-04iLS120..RHD..4H198308-198708

PF,BLUE,BLUE,TRIM8#

main71071-3A370-04iLS120,YS120..LHD..4H198308-198708

PF,BLUE,BLUE,TRIM8#

main71071-3A370-05iLS120,YS120..LHD..4H198308-198509

PF,BEIGE,BEIGE,TRIM4#

main71071-3A370-06iLS120,YS120..LHD..4H198509-198708

PF,BROWN,BROWN,TRIM4#

main71071-3A420-02iMS122..4H198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71071-3A420-04iMS122..SED..4H198308-198509

FB,BLUE,BLUE,TRIM8#

main71071-3A420-05iMS122..4H198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71071-3A430-02iMS123,125..4HC198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71071-3A430-04iMS123,125..4HC198308-198509

FB,BLUE,BLUE,TRIM8#

main71071-3A430-05iMS123,125..4HC198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71071-3A470-02iMS122..4HC198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71071-3A470-04iMS122..4HC198308-198509

FB,BLUE,BLUE,TRIM8#

main71071-3A470-05iMS122..4HC198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71071-3A471-02iMS122..4HC198509-198708

FB,MAROON,MAROON,TRIM3#

main71071-3A471-04iMS122..4HC198509-198708

FB,BLUE,BLUE,TRIM8#

main71071-3A471-06iMS122..4HC198509-198708

FB,BROWN,BROWN,TRIM4#

71071WWIRE, FRONT SEAT CUSHION COVER

main90580-20011×2iLS120,MS12#,YS120..4FC,5F; LS120,YS120..4F198308-198509

L=360

main90580-20076×4iLS120,MS12#,YS120..4FC,5F; LS120,YS120..4F198308-198509

L=340

main90580-20103iMS12#..4H,4HC198308-198509

L=1150

main90580-20106iLS120,YS120..4H198308-198509

L=500

main90580-20122iMS12#..4H,4HC198308-198509

L=200

main90580-20126×2iLS120,MS12#,YS120..4FC,5F; LS120,YS120..4F198308-198509

L=380

main90580-20130iLS120,YS120..4H198308-198509

L=700

main90580-20139×2iLS120,YS120..4H; MS12#..4H,4HC198308-198509

L=1020

main90580-29003×2iLS120,YS120..4F; LS120,YS120..4H198308-198509

L=300

main90580-29010×4iLS120,MS12#,YS120..4FC,5F; MS12#..4H,4HC198308-198509

L=280

main90580-29012×2iLS120,YS120..4H198308-198509

L=380

71073PCOVER, FRONT SEATBACK, RH(FOR SEMI-SEPARATE TYPE)

main71073-3A010-04iLS120..RHD..4H198308-198708

PF,BLUE,BLUE,TRIM8#

main71073-3A040-02iMS122..4H,4HC198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71073-3A040-04iMS122..SED..(4H,4HC)198308-198509

FB,BLUE,BLUE,TRIM8#

main71073-3A040-05iMS122..4H,4HC198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71073-3A041-02iMS122..4HC198509-198708

FB,MAROON,MAROON,TRIM3#

main71073-3A041-04iMS122..4HC198509-198708

FB,BLUE,BLUE,TRIM8#

main71073-3A041-06iMS122..4HC198509-198708

FB,BROWN,BROWN,TRIM4#

main71073-3A060-02iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main71073-3A060-04iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main71073-3A060-05iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,BEIGE,BEIGE,TRIM4#

main71073-3A061-02iMS125..4HC198509-198708

FB,MAROON,MAROON,TRIM3#

main71073-3A061-04iMS125..4HC198509-198708

FB,BLUE,BLUE,TRIM8#

main71073-3A061-06iMS125..4HC198509-198708

FB,BROWN,BROWN,TRIM4#

main71073-3A220-04iLS120,YS120..LHD..4H198308-198708

PF,BLUE,BLUE,TRIM8#

main71073-3A220-05iLS120,YS120..LHD..4H198308-198509

PF,BEIGE,BEIGE,TRIM4#

main71073-3A220-06iLS120,YS120..LHD..4H198509-198708

PF,BROWN,BROWN,TRIM4#

main71073-3A230-02iMS123,125..4HC198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71073-3A230-04iMS123,125..4HC198308-198509

FB,BLUE,BLUE,TRIM8#

main71073-3A230-05iMS123,125..4HC198308-198509

FB,BEIGE,BEIGE,TRIM4#

71073WWIRE, FRONT SEATBACK COVER

main90580-20023×4iLS120,MS12#,YS120..4FC,5F; LS120,YS120..4F; MS12#..4H,4HC198308-198509

L=110

main90580-20033×4iLS120,YS120..4H198308-198509

L=670

main90580-20072×4iLS120,MS12#,YS120..4FC,5F; LS120,YS120..4F; MS12#..4H,4HC198308-198509

L=230

main90580-20076×4iLS120,MS12#,YS120..4FC,5F; LS120,YS120..4F; MS12#..4H,4HC198308-198509

L=340

main90580-20099iLS120,YS120..4H198308-198509

L=400

main90580-26013×2iLS120,MS12#,YS120..4FC,5F; LS120,YS120..4F; MS12#..4H,4HC198308-198509

*H,L=450

main90580-29003×2iLS120,YS120..4F; LS120,YS120..4H198308-198509

L=300

main90580-29005×2iLS120,YS120..4H198308-198509

L=435

main90580-29010×4iLS120,MS12#,YS120..4FC,5F; MS12#..4H,4HC198308-198509

L=280

71074PCOVER, FRONT SEATBACK, LH(FOR SEMI-SEPARATE TYPE)

main71074-30610-04iLS120..RHD..4H198308-198708

PF,BLUE,BLUE,TRIM8#

main71074-30640-02iMS122..4H,4HC198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71074-30640-04iMS122..SED..(4H,4HC)198308-198509

FB,BLUE,BLUE,TRIM8#

main71074-30640-05iMS122..4H,4HC198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71074-30641-02iMS122..4HC198509-198708

FB,MAROON,MAROON,TRIM3#

main71074-30641-04iMS122..4HC198509-198708

FB,BLUE,BLUE,TRIM8#

main71074-30641-06iMS122..4HC198509-198708

FB,BROWN,BROWN,TRIM4#

main71074-30660-02iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main71074-30660-04iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main71074-30660-05iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,BEIGE,BEIGE,TRIM4#

main71074-30661-02iMS125..4HC198509-198708

FB,MAROON,MAROON,TRIM3#

main71074-30661-04iMS125..4HC198509-198708

FB,BLUE,BLUE,TRIM8#

main71074-30661-06iMS125..4HC198509-198708

FB,BROWN,BROWN,TRIM4#

main71074-30720-04iLS120,YS120..LHD..4H198308-198708

PF,BLUE,BLUE,TRIM8#

main71074-30720-05iLS120,YS120..LHD..4H198308-198509

PF,BEIGE,BEIGE,TRIM4#

main71074-30720-06iLS120,YS120..LHD..4H198509-198708

PF,BROWN,BROWN,TRIM4#

main71074-30730-02iMS123,125..4HC198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71074-30730-04iMS123,125..4HC198308-198509

FB,BLUE,BLUE,TRIM8#

main71074-30730-05iMS123,125..4HC198308-198509

FB,BEIGE,BEIGE,TRIM4#

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12027×2iLS120,MS12#,YS120198308-198708

71410PCUSHION ASSY, FRONT SEAT(FOR SEMI-SEPARATE TYPE)

main71410-3A230-04iLS120..RHD..4H198308-198708

PF,BLUE,BLUE,TRIM8#

main71410-3A320-02iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main71410-3A320-04iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main71410-3A320-05iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,BEIGE,BEIGE,TRIM4#

main71410-3A330-02iMS123,125..4HC198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71410-3A330-04iMS123,125..4HC198308-198509

FB,BLUE,BLUE,TRIM8#

main71410-3A330-05iMS123,125..4HC198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71410-3A540-04iLS120,YS120..LHD..4H198308-198708

PF,BLUE,BLUE,TRIM8#

main71410-3A540-05iLS120,YS120..LHD..4H198308-198509

PF,BEIGE,BEIGE,TRIM4#

main71410-3A540-06iLS120,YS120..LHD..4H198509-198708

PF,BROWN,BROWN,TRIM4#

main71410-3A550-02iMS122..4H198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71410-3A550-04iMS122..SED..4H198308-198509

FB,BLUE,BLUE,TRIM8#

main71410-3A550-05iMS122..4H198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71410-3A561-02iMS125..4HC198509-198708

FB,MAROON,MAROON,TRIM3#

main71410-3A561-04iMS125..4HC198509-198708

FB,BLUE,BLUE,TRIM8#

main71410-3A561-06iMS125..4HC198509-198708

FB,BROWN,BROWN,TRIM4#

main71410-3A610-02iMS122..4HC198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71410-3A610-04iMS122..4HC198308-198509

FB,BLUE,BLUE,TRIM8#

main71410-3A610-05iMS122..4HC198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71410-3A611-02iMS122..HT198509-198708

FB,MAROON,MAROON,TRIM3#

main71410-3A611-04iMS122..HT198509-198708

FB,BLUE,BLUE,TRIM8#

main71410-3A611-06iMS122..HT198509-198708

FB,BROWN,BROWN,TRIM4#

71430PBACK ASSY, FRONT SEAT, RH(FOR SEMI-SEPARATE TYPE)

main71430-3A380-04iLS120..RHD..4H198308-198708

PF,BLUE,BLUE,TRIM8#

main71430-3A390-04iLS120..RHD..4H198308-198708

PF,W/*HR,BLUE,BLUE,TRIM8#

main71430-3A400-04iLS120,YS120..LHD..4H198308-198708

PF,BLUE,BLUE,TRIM8#

main71430-3A400-05iLS120,YS120..LHD..4H198308-198509

PF,BEIGE,BEIGE,TRIM4#

main71430-3A400-06iLS120,YS120..LHD..4H198509-198708

PF,BROWN,BROWN,TRIM4#

main71430-3A410-04iLS120,YS120..LHD..4H198308-198708

PF,W/*HR,BLUE,BLUE,TRIM8#

main71430-3A410-05iLS120,YS120..LHD..4H198308-198509

PF,W/*HR,BEIGE,BEIGE,TRIM4#

main71430-3A410-06iLS120,YS120..LHD..4H198509-198708

PF,W/*HR,BROWN,BROWN,TRIM4#

main71430-3A470-02iMS122..4HC198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-3A470-04iMS122..4HC198308-198509

FB,BLUE,BLUE,TRIM8#

main71430-3A470-05iMS122..4HC198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71430-3A471-02iMS122..4HC198509-198708

FB,MAROON,MAROON,TRIM3#

main71430-3A471-04iMS122..4HC198509-198708

FB,BLUE,BLUE,TRIM8#

main71430-3A471-06iMS122..4HC198509-198708

FB,BROWN,BROWN,TRIM4#

main71430-3A480-02iMS122..4H198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-3A480-04iMS122..SED..4H198308-198509

FB,BLUE,BLUE,TRIM8#

main71430-3A480-05iMS122..4H198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71430-3A500-02iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main71430-3A500-04iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main71430-3A500-05iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,BEIGE,BEIGE,TRIM4#

main71430-3A501-02iMS125..4HC198509-198708

FB,MAROON,MAROON,TRIM3#

main71430-3A501-04iMS125..4HC198509-198708

FB,BLUE,BLUE,TRIM8#

main71430-3A501-06iMS125..4HC198509-198708

FB,BROWN,BROWN,TRIM4#

main71430-3A860-02iMS123,125..4HC198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71430-3A860-04iMS123,125..4HC198308-198509

FB,BLUE,BLUE,TRIM8#

main71430-3A860-05iMS123,125..4HC198308-198509

FB,BEIGE,BEIGE,TRIM4#

71440PBACK ASSY, FRONT SEAT, LH(FOR SEMI-SEPARATE TYPE)

main71440-3A130-04iLS120..RHD..4H198308-198708

PF,BLUE,BLUE,TRIM8#

main71440-3A140-04iLS120..RHD..4H198308-198708

PF,W/*HR,BLUE,BLUE,TRIM8#

main71440-3A150-04iLS120,YS120..LHD..4H198308-198708

PF,BLUE,BLUE,TRIM8#

main71440-3A150-05iLS120,YS120..LHD..4H198308-198509

PF,BEIGE,BEIGE,TRIM4#

main71440-3A150-06iLS120,YS120..LHD..4H198509-198708

PF,BROWN,BROWN,TRIM4#

main71440-3A160-04iLS120,YS120..LHD..4H198308-198708

PF,W/*HR,BLUE,BLUE,TRIM8#

main71440-3A160-05iLS120,YS120..LHD..4H198308-198509

PF,W/*HR,BEIGE,BEIGE,TRIM4#

main71440-3A160-06iLS120,YS120..LHD..4H198509-198708

PF,W/*HR,BROWN,BROWN,TRIM4#

main71440-3A220-02iMS122..4HC198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-3A220-04iMS122..4HC198308-198509

FB,BLUE,BLUE,TRIM8#

main71440-3A220-05iMS122..4HC198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71440-3A221-02iMS122..4HC198509-198708

FB,MAROON,MAROON,TRIM3#

main71440-3A221-04iMS122..4HC198509-198708

FB,BLUE,BLUE,TRIM8#

main71440-3A221-06iMS122..4HC198509-198708

FB,BROWN,BROWN,TRIM4#

main71440-3A230-02iMS122..4H198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-3A230-04iMS122..SED..4H198308-198509

FB,BLUE,BLUE,TRIM8#

main71440-3A230-05iMS122..4H198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71440-3A250-02iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main71440-3A250-04iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main71440-3A250-05iMS123,125..4HC198308-198509

FB,RR SLIDE SEAT,BEIGE,BEIGE,TRIM4#

main71440-3A251-02iMS125..4HC198509-198708

FB,MAROON,MAROON,TRIM3#

main71440-3A251-04iMS125..4HC198509-198708

FB,BLUE,BLUE,TRIM8#

main71440-3A251-06iMS125..4HC198509-198708

FB,BROWN,BROWN,TRIM4#

main71440-3A570-02iMS123,125..4HC198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71440-3A570-04iMS123,125..4HC198308-198509

FB,BLUE,BLUE,TRIM8#

main71440-3A570-05iMS123,125..4HC198308-198509

FB,BEIGE,BEIGE,TRIM4#

71511PPAD, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE)

main71511-30600iLS120,YS120..4H198308-198708

main71511-30610iMS12#..4H,4HC198308-198708

71551PPAD, FRONT SEATBACK, RH(FOR SEMI-SEPARATE TYPE)

main71505-30050iLS120,YS120..LHD..4H198308-198708

main71551-30470iMS12#..4H,4HC198308-198509

main71551-30500iMS123,125..4HC198308-198708

RR SLIDE SEAT

main71551-30530iLS120..RHD..4H198308-198708

71552PPAD, FRONT SEATBACK, LH(FOR SEMI-SEPARATE TYPE)

main71505-30050iLS120..RHD..4H198308-198708

main71551-30470iMS12#..4H,4HC198308-198509

main71551-30500iMS123,125..4HC198308-198708

RR SLIDE SEAT

main71551-30530iLS120,YS120..LHD..4H198308-198708

71565PAD, FRONT SEATBACK, INSIDE

main71565-30030iLS120,YS120..LHD..4H198308-198708

ASSISTANT SIDE

main71566-30040iLS120..RHD..4H198308-198708

ASSISTANT SIDE

71567PAD, FRONT SEATBACK SAFETY

main71567-30090iLS120,YS120..4H198308-198708

ASSISTANT SIDE

main71567-30100iLS120,MS12#,YS120..4F,4FC,5F; LS120,YS120..4H; MS12#..4H,4HC198308-198708

DRIVER SIDE

71572PAD, FRONT SEATBACK SILENCER, B

main71572-30040×2iLS120,MS12#,YS120..4F,4FC,5F; LS120,YS120..4H; MS12#..4H,4HC198308-198708

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-30010iLS120,YS120..4H198308-198708

71604GRIP SUB-ASSY, ASSIST(FOR SEATBACK)

main74620-30050-02×2iMS12#..ROY198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74620-30050-04×2iMS12#..ROY198308-198708

BLUE,BLUE,TRIM8#

main74620-30050-05×2iMS12#..ROY198308-198509

BEIGE,BEIGE,TRIM4#

main74620-30050-06×2iMS12#..SED..ROY198509-198708

BROWN,BROWN,TRIM4#

main74620-30050-12×2iMS12#..ROY198509-198708

MAROON,MAROON,TRIM3#

71604CPLUG, HOLE(FOR ASSIST GRIP)

main74617-30020-02×4iMS12#..ROY198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74617-30020-12×4iMS12#..ROY198509-198708

MAROON,MAROON,TRIM3#

main74617-30020-15×4iMS12#..ROY198308-198509

BEIGE,BEIGE,TRIM4#

main74617-30020-16×4iMS12#..SED..ROY198509-198708

BROWN,BROWN,TRIM4#

main74617-30020-24×4iMS12#..ROY198308-198708

BLUE,BLUE,TRIM8#

71610PSPRING ASSY, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE)

main71610-30370iLS120..RHD..4H198308-198708

main71610-30380iLS120,YS120..LHD..4H198308-198708

main71610-30390iMS12#..4H,4HC198308-198708

71630PSPRING ASSY, FRONT SEATBACK, RH(FOR SEMI-SEPARATE TYPE)

main71630-30440iLS120..RHD..4H198308-198708

main71630-30450iLS120,YS120..LHD..4H198308-198708

main71630-30460iMS122..4HC198308-198708

main71630-30470iMS123,125..4HC198308-198708

main71630-30480iMS122..4H198308-198509

71640PSPRING ASSY, FRONT SEATBACK, LH(FOR SEMI-SEPARATE TYPE)

main71640-30260iLS120..RHD..4H198308-198708

main71640-30280iMS122..4HC198308-198708

main71640-30290iMS123,125..4HC198308-198708

main71640-30300iMS122..4H198308-198509

main71640-30360iLS120,YS120..LHD..4H198308-198708

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-30180-02iMS12#..RHD..4FC..ROY..GEN198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main71811-30180-04iMS12#..RHD..4FC..ROY..GEN198308-198708

BLUE,BLUE,TRIM8#

main71811-30180-05iMS12#..RHD..4FC..ROY..GEN198308-198509

BEIGE,BEIGE,TRIM4#

main71811-30180-06iMS125..SAA198608-198708

BROWN,BROWN,TRIM4#

main71811-30180-12iMS122,125..RHD..4FC..ROY198509-198708

MAROON,MAROON,TRIM3#

main71811-30190-02iLS120,MS122..RHD..(4FC,5F)..SAL; MS12#..LHD..ROY; MS123..ARL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main71811-30190-04iLS120,MS122..RHD..(4FC,5F)..SAL; MS12#..LHD..ROY; MS123..ARL198308-198509

BLUE,BLUE,TRIM8#

main71811-30190-05iLS120,MS122..RHD..(4FC,5F)..SAL; MS12#..LHD..ROY; MS123..ARL198308-198509

BEIGE,BEIGE,TRIM4#

main71811-30191-02iMS122,125..HT; MS122,125..SED..LHD..ROY198509-198608

MAROON,MAROON,TRIM3#

main71811-30191-04iMS122..RHD..(4FC,5F)..SAL; MS123198509-198708

BLUE,BLUE,TRIM8#

main71811-30191-06iMS122..HT; MS122..RHD..(4FC,5F)..SAL; MS123198509-198708

BROWN,BROWN,TRIM4#

main71811-30200-02iLS120,MS122,123,YS120..LHD..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main71811-30200-04iLS120,MS122,123,YS120..SED..LHD..SAL; LS120,YS120..4F198308-198509

BLUE,BLUE,TRIM8#

main71811-30200-05iLS120,MS122,123,YS120..LHD..SAL; LS120,YS120..4F198308-198509

BEIGE,BEIGE,TRIM4#

main71811-30201-02iMS122..(SED,WG)..LHD..SAL198509-198708

MAROON,MAROON,TRIM3#

main71811-30201-04iLS120,YS120..RHD..4F; MS122,YS120..(SED,WG)..LHD..(4F,4FC,5F)..(DLX,SAL,STD)198509-198708

BLUE,BLUE,TRIM8#

main71811-30201-06iLS120,YS120..RHD..4F; MS122,YS120..SED..LHD..(4F,4FC,5F)..(DLX,SAL,STD)198509-198708

BROWN,BROWN,TRIM4#

main71811-30210-02iMS12#..4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main71811-30210-04iLS120,MS12#..RHD..(4H,4HC)198308-198509

BLUE,BLUE,TRIM8#

main71811-30210-05iMS12#..RHD..4FC198308-198509

BEIGE,BEIGE,TRIM4#

main71811-30211-02iMS122,125..4HC198509-198708

MAROON,MAROON,TRIM3#

main71811-30211-04iLS120,MS122,125..RHD..(4H,4HC)198509-198708

BLUE,BLUE,TRIM8#

main71811-30211-06iMS122,125..4HC198509-198708

BROWN,BROWN,TRIM4#

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071iLS120,MS12#,YS120198308-198708

71824BRACKET, FRONT SEAT SIDE, NO.1 RH

main71821-30270iLS120,MS122,125..RHD..(4H,4HC); LS120,MS122,YS120..(4F,5F)..(DLX,STD); MS122..LHD..SAL198509-198708

main71821-30280iMS122,125..HT; MS122..RHD..(4FC,5F)..SAL; MS123;MS122,125..SED..LHD..ROY198509-198708

71831DCOVER, FRONT SEAT HINGE, RH

main71831-30020-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

71950HEADREST ASSY, FRONT SEAT

main71910-30370-04×2iLS120,MS122,YS120..DLX,STD198509-198708

BLUE,BLUE,TRIM8#

main71910-30370-05×2iLS120,YS120..STD198308-198509

BEIGE,BEIGE,TRIM4#

main71910-30370-06×2iLS120..4F;LS120..LHD;MS122,YS120..DLX,STD198509-198708

BROWN,BROWN,TRIM4#

main71910-30380-02iLS120,MS122,YS120..SAL198308-198509

RH,DEEP MAROON,RED/MAROON,TRIM3#

main71910-30380-04iLS120,MS122,YS120..SED..SAL198308-198509

RH,BLUE,BLUE,TRIM8#

main71910-30380-05iLS120,MS122,YS120..SAL198308-198509

RH,BEIGE,BEIGE,TRIM4#

main71910-30381-02iMS122..(SED,WG)..SAL198509-198708

RH,MAROON,MAROON,TRIM3#

main71910-30381-04iMS122..(SED,WG)..SAL198509-198708

RH,BLUE,BLUE,TRIM8#

main71910-30381-06iMS122..SED..SAL198509-198708

RH,BROWN,BROWN,TRIM4#

main71910-30400-02iMS12#..ROY..(GEN,SAA)198308-198509

RH,DEEP MAROON,RED/MAROON,TRIM3#

main71910-30400-04iMS12#..ROY..(GEN,SAA)198308-198509

RH,BLUE,BLUE,TRIM8#

main71910-30400-05iMS12#..ROY..(GEN,SAA)198308-198509

RH,BEIGE,BEIGE,TRIM4#

main71910-30401-02iMS122,125..SED..ROY198509-198708

RH,MAROON,MAROON,TRIM3#

main71910-30401-04iMS122,125..SED..ROY198509-198708

RH,BLUE,BLUE,TRIM8#

main71910-30401-06iMS122,125..SED..ROY198509-198708

RH,BROWN,BROWN,TRIM4#

main71910-30421-02iMS125..HT198509-198708

RH,MAROON,MAROON,TRIM3#

main71910-30421-04iMS125..HT198509-198708

RH,BLUE,BLUE,TRIM8#

main71910-30430-02iMS123..SAL198308-198509

RH,DEEP MAROON,RED/MAROON,TRIM3#

main71910-30430-04iMS123..SAL198308-198509

RH,BLUE,BLUE,TRIM8#

main71910-30430-05iMS123..SAL198308-198509

RH,BEIGE,BEIGE,TRIM4#

main71910-30431-02iMS123198608-198708

RH,MAROON,MAROON,TRIM3#

main71910-30431-04iMS123198608-198708

RH,BLUE,BLUE,TRIM8#

main71910-30431-06iMS123198608-198708

RH,BROWN,BROWN,TRIM4#

main71910-30440-02iMS123..ARL198308-198509

RH,DEEP MAROON,RED/MAROON,TRIM3#

main71910-30440-04iMS123..ARL198308-198509

RH,BLUE,BLUE,TRIM8#

main71910-30440-05iMS123..ARL198308-198509

RH,BEIGE,BEIGE,TRIM4#

main71910-30441-02iMS123198509-198608

RH,MAROON,MAROON,TRIM3#

main71910-30441-04iMS123198509-198608

RH,BLUE,BLUE,TRIM8#

main71910-30441-06iMS123198509-198608

RH,BROWN,BROWN,TRIM4#

main71910-30490-02iMS122..HT198509-198708

RH,MAROON,MAROON,TRIM3#

main71910-30490-04iMS122..HT198509-198708

RH,BLUE,BLUE,TRIM8#

main71910-30490-06iMS122..HT198509-198708

RH,BROWN,BROWN,TRIM4#

main71920-30140-02iLS120,MS122,YS120..SAL198308-198509

LH,DEEP MAROON,RED/MAROON,TRIM3#

main71920-30140-04iLS120,MS122,YS120..SED..SAL198308-198509

LH,BLUE,BLUE,TRIM8#

main71920-30140-05iLS120,MS122,YS120..SAL198308-198509

LH,BEIGE,BEIGE,TRIM4#

main71920-30141-02iMS122..(SED,WG)..SAL198509-198708

LH,MAROON,MAROON,TRIM3#

main71920-30141-04iMS122..(SED,WG)..SAL198509-198708

LH,BLUE,BLUE,TRIM8#

main71920-30141-06iMS122..SED..SAL198509-198708

LH,BROWN,BROWN,TRIM4#

main71920-30160-02iMS12#..ROY..(GEN,SAA)198308-198509

LH,DEEP MAROON,RED/MAROON,TRIM3#

main71920-30160-04iMS12#..ROY..(GEN,SAA)198308-198509

LH,BLUE,BLUE,TRIM8#

main71920-30160-05iMS12#..ROY..(GEN,SAA)198308-198509

LH,BEIGE,BEIGE,TRIM4#

main71920-30161-02iMS122,125..SED..ROY198509-198708

LH,MAROON,MAROON,TRIM3#

main71920-30161-04iMS122,125..SED..ROY198509-198708

LH,BLUE,BLUE,TRIM8#

main71920-30161-06iMS122,125..SED..ROY198509-198708

LH,BROWN,BROWN,TRIM4#

main71920-30181-02iMS125..HT198509-198708

LH,MAROON,MAROON,TRIM3#

main71920-30181-04iMS125..HT198509-198708

LH,BLUE,BLUE,TRIM8#

main71920-30190-02iMS123..SAL198308-198509

LH,DEEP MAROON,RED/MAROON,TRIM3#

main71920-30190-04iMS123..SAL198308-198509

LH,BLUE,BLUE,TRIM8#

main71920-30190-05iMS123..SAL198308-198509

LH,BEIGE,BEIGE,TRIM4#

main71920-30191-02iMS123198608-198708

LH,MAROON,MAROON,TRIM3#

main71920-30191-04iMS123198608-198708

LH,BLUE,BLUE,TRIM8#

main71920-30191-06iMS123198608-198708

LH,BROWN,BROWN,TRIM4#

main71920-30200-02iMS123..ARL198308-198509

LH,DEEP MAROON,RED/MAROON,TRIM3#

main71920-30200-04iMS123..ARL198308-198509

LH,BLUE,BLUE,TRIM8#

main71920-30200-05iMS123..ARL198308-198509

LH,BEIGE,BEIGE,TRIM4#

main71920-30201-02iMS123198509-198608

LH,MAROON,MAROON,TRIM3#

main71920-30201-04iMS123198509-198608

LH,BLUE,BLUE,TRIM8#

main71920-30201-06iMS123198509-198608

LH,BROWN,BROWN,TRIM4#

main71920-30250-02iMS122..HT198509-198708

LH,MAROON,MAROON,TRIM3#

main71920-30250-04iMS122..HT198509-198708

LH,BLUE,BLUE,TRIM8#

main71920-30250-06iMS122..HT198509-198708

LH,BROWN,BROWN,TRIM4#

71956ASUPPORT, FRONT SEAT HEADREST

main71930-10060-02×2iLS120,MS12#,YS120..ROY,SAL198308-198708

W(LOCK),W/LOCK,DEEP MAROON,DARK WINE,TRIM3#

main71930-10060-04×2iLS120,MS12#,YS120..SED198308-198509

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

main71930-10060-25×2iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4#

main71930-10060-36×2iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

W(LOCK),W/LOCK,BROWN,SEPIA BROWN,TRIM4#

main71931-10010-02×2iLS120,MS12#,YS120..ROY,SAL198308-198708

W/O(LOCK),W/O LOCK,DEEP MAROON,DARK WINE,TRIM3#

main71931-10010-04×2iLS120,MS12#,YS120198509-198708

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

main71931-10010-25×2iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4#

main71931-10010-36×2iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

W/O(LOCK),W/O LOCK,BROWN,SEPIA BROWN,TRIM4#

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-30280iLS120,MS12#,YS120..LHD..(4F,4FC,5F); LS120,MS122,YS120..RHD..(4F,4FC,4H,5F)..(SAL,STD); MS123..ARL198308-198509

main72510-30281iMS125..4FC..GEN;MS122,YS120..4F,4FC,5F198608-198708

main72510-30290iMS12#..4H,4HC198308-198509

main72510-30291iMS122,125..4HC198509-198708

72510ASPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

main90506-15002×2iMS123..ARL,EUG,SWZ;LS120,MS122,YS120..SAL,STD198308-198708

72524HANDLE, RECLINING ADJUSTER RELEASE

main72525-20050-06iMS125..SED..LHD;MS122,YS120..(HT,SED)..LHD..(4F,4FC,5F)198509-198608

RH,BROWN,BROWN,TRIM4#

main72525-20050-12iLS120,MS12#,YS120..LHD..(ROY,SAL); LS120,MS122..RHD..SAL; MS123..ARL198308-198509

RH,DEEP MAROON,RED/MAROON,TRIM3#

main72525-20050-22iMS122,125..LHD..(ROY,SAL)198509-198608

RH,MAROON,MAROON,TRIM3#

main72525-20050-24iMS125..LHD..GEN;MS122,YS120..LHD..(4F,4FC,5F)198608-198708

RH,BLUE,BLUE,TRIM8#

main72525-20050-45iLS120,MS122,YS120..RHD..(SAL,STD); MS123..ARL; YS120..LHD..(4F,5F);LS120,MS12#..LHD..(ROY,SAL)198308-198509

RH,BEIGE,BEIGE,TRIM4#

main72525-20050-46iLS120,MS122,YS120..RHD..(SAL,STD); MS123198509-198708

RH,BROWN,BROWN,TRIM4#

main72526-20040-12iLS120,MS122,123,YS120..LHD..SAL; LS120,MS122,125..RHD..(ROY,SAL)198308-198509

LH,DEEP MAROON,RED/MAROON,TRIM3#

main72526-20040-22iMS12#..RHD; MS122..LHD..SAL198509-198708

LH,MAROON,MAROON,TRIM3#

main72526-20040-24iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F); LS120,MS122,YS120..LHD..(DLX,SAL,STD)198509-198708

LH,BLUE,BLUE,TRIM8#

main72526-20040-45iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F); LS120,MS122,123,YS120..LHD..(SAL,STD)198308-198509

LH,BEIGE,BEIGE,TRIM4#

main72526-20040-46iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F); LS120,MS122,YS120..(HT,SED)..LHD..(DLX,SAL,STD)198509-198708

LH,BROWN,BROWN,TRIM4#

72707LEVER SUB-ASSY, LUMBER SUPPORT, RH

main72707-30020iLS120,MS12#..RHD..(4H,4HC)198308-198708

72760ADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-30080iLS120,MS12#..RHD..(4H,4HC)198308-198708

main72750-30090iMS123..ARL;LS120,MS122,YS120..RHD..(4F,4FC,5F)..(SAL,STD)198308-198708

main72750-30110iMS12#..RHD..4FC..ROY..GEN198308-198708

72766PATCH, LUMBAR SUPPORT BRACKET

main72766-30010iLS120,MS12#,YS120..4H,4HC198308-198708

72791LEVER, LUMBAR SUPPORT

main72791-22020-05iMS123..SAL198308-198509

BEIGE,BEIGE,TRIM4#

main72791-22020-15iMS123..SAL198308-198509

BEIGE,BEIGE,TRIM4#

main72791-22020-22iMS123..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main72791-30010-12iLS120,MS12#,YS120..(4FC,5F)..(ARL,GEN)198308-198509

DEEP MAROON,DEEP MAROON,TRIM3#

main72791-30010-22iMS12#..(4FC,5F)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main72791-30010-24iLS120,MS122,YS120..4F,5F198509-198708

BLUE,BLUE,TRIM8#

main72791-30010-35iLS120,MS12#,YS120..(4F,4FC,5F)..(ARL,GEN)198308-198509

BEIGE,BEIGE,TRIM4#

main72791-30010-36iMS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F)198509-198708

BROWN,SEPIA BROWN,TRIM4#

main72791-30020-06iMS122,125..4HC198509-198708

BROWN,BROWN,TRIM4#

main72791-30020-12iMS12#..4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main72791-30020-14iLS120..RHD..4H; MS12#..4HC198308-198708

BLUE,BLUE,TRIM8#

main72791-30020-22iMS122,125..4HC198509-198708

MAROON,MAROON,TRIM3#

main72791-30020-25iMS12#..4HC198308-198509

BEIGE,BEIGE,TRIM4#

main72792-30010-06iLS120,YS120..LHD..4H198509-198708

BROWN,BROWN,TRIM4#

main72792-30010-12iMS122..4H198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main72792-30010-14iLS120,YS120..LHD..4H198308-198708

BLUE,MAROON,TRIM8#

main72792-30010-25iLS120,YS120..LHD..4H; MS122..4H198308-198509

BEIGE,BEIGE,TRIM4#

72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

main90520-01002iLS120,MS12#,YS120..4F,4FC,5F198308-198708

main90520-01274iLS120,MS12#,YS120..4H,4HC198308-198708

74658ORNAMENT, FRONT SEATBACK CONTROL PANEL

main74843-30031iLS120,YS120..4H198308-198708

main74843-30090-02iMS122..4H,4HC198308-198509

76X40,DEEP MAROON,RED/MAROON,TRIM3#

main74843-30090-04iMS122..SED..(4H,4HC)198308-198509

76X40,BLUE,BLUE,TRIM8#

main74843-30090-05iMS122..4H,4HC198308-198509

76X40,BEIGE,BEIGE,TRIM4#

main74843-30100iMS12#..4H,4HC198308-198708

OD=41

74659RETAINER, FRONT SEATBACK CONTROL PANEL

main74849-30010iLS120,YS120..4H198308-198708

main74849-30020iMS12#..4H,4HC198308-198708

74841APANEL, FRONT SEATBACK CONTROL

main74841-30030iLS120,YS120..4H198308-198509

main74841-30030-04iLS120,YS120..4H198509-198708

BLUE,BLUE,TRIM8#

main74841-30050-02iMS12#..4H,4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74841-30050-04iMS12#..SED..(4H,4HC)198308-198708

BLUE,BLUE,TRIM8#

main74841-30050-05iMS12#..4H,4HC198308-198509

BEIGE,BEIGE,TRIM4#

main74841-30050-06iMS122,125..4HC198509-198708

BROWN,BROWN,TRIM4#

main74841-30050-12iMS122,125..4HC198509-198708

MAROON,MAROON,TRIM3#

9011906072

main90119-06072

9011910229

main90119-10229

9015480004

main90154-80004

9015960084

main90159-60084

9052308001

main90523-08001

9324016020

main93240-16020

9324954006

main93249-54006

9351014016

main93510-14016

9354014010

main93540-14010

9356014010

main93560-14010

9356054010

main93560-54010

49 parts on this diagram · 10 diagrams in section
