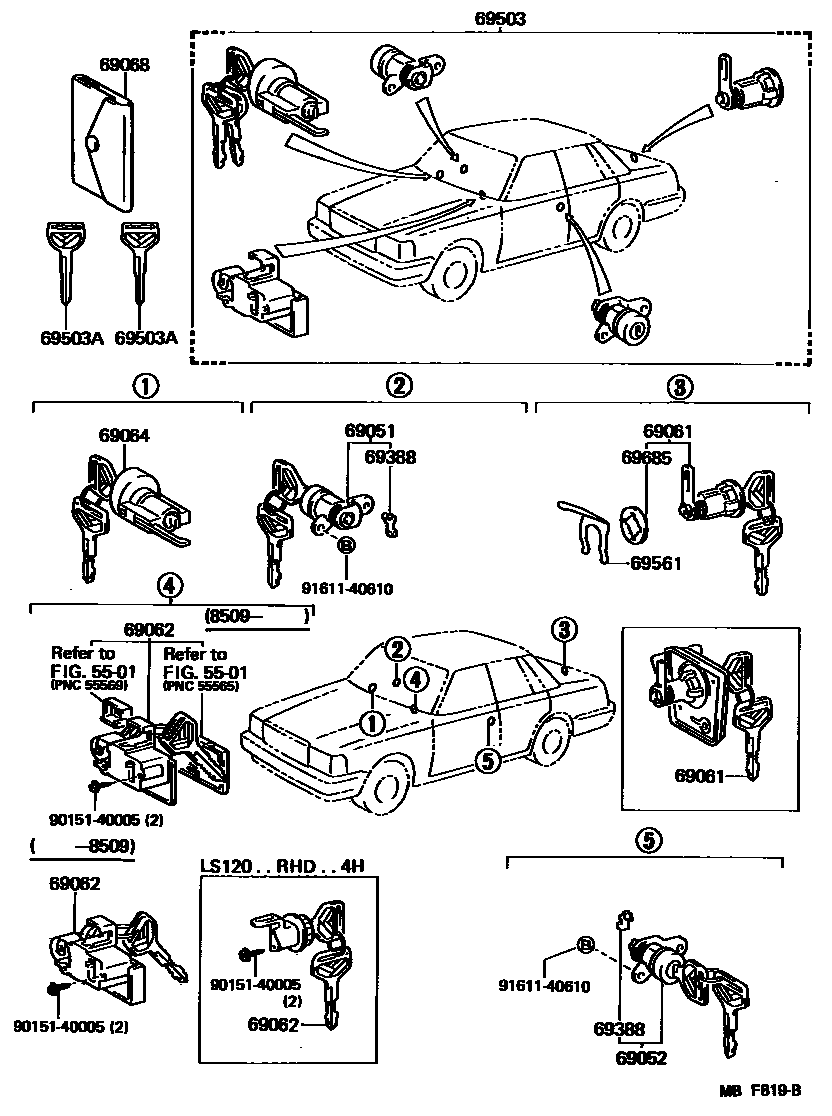

LOCK CYLINDER SET

0001 1 0002 1

5501

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-30140iLS120,MS12#,YS120..ARL,GEN,SAA198308-198708

main69051-30150iMS123..SAL198308-198509

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-30120iMS123..SAL198308-198509

main69052-30130iLS120,MS12#,YS120..ARL,GEN,SAA198308-198708

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-30080iLS120..RHD..4H198308-198708

main69055-30090iMS123..SAL198308-198509

main69055-30100iLS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)198308-198509

main69055-30110iLS120..4F;YS120..STD;LS120..LHD..STD198308-198708

main69055-30130iMS12#..(HT,SED)..(ROY,SAL)198509-198708

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69009-91704iMS122..WG198308-198708

DECK

main69056-30050iLS120..RHD..4H198308-198708

sub69056-90P01

main69056-30060-02iLS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub69056-30060

main69056-30060-04iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BLUE,BLUE,TRIM8#

sub69056-30060

main69056-30060-05iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

sub69056-30060

main69056-30070-02iMS123..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub69056-30070

main69056-30070-04iMS123..SAL198308-198509

BLUE,BLUE,TRIM8#

sub69056-30070

main69056-30070-05iMS123..SAL198308-198509

BEIGE,BEIGE,TRIM4#

sub69056-30070

main69056-30080-02iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

sub69056-30080

main69056-30080-04iLS120..4F;LS120..LHD;MS12#,YS120198509-198708

BLUE,BLUE,TRIM8#

sub69056-30080

main69056-30080-06iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN,BROWN,TRIM4#

sub69056-30080

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-30040iLS120,MS12#,YS120..ARL,GEN,SAA198308-198708

sub69057-22050

main69057-30050iMS123..SAL198308-198509

69068COVER SUB-ASSY, KEY

main69555-20010iLS120,MS12#,YS120198308-198708

69388SNAP, ROD(FOR DOOR LOCK)

main69759-30040iLS120,MS12#,YS120198308-198708

RH

main69759-30050iLS120,MS12#,YS120198308-198708

LH

69503CYLINDER SET, LOCK

main69005-30330iLS120..RHD..4H198308-198708

main69005-30340-02iMS123..ARL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub69005-30340

main69005-30340-04iMS123..ARL198308-198509

BLUE,BLUE,TRIM8#

sub69005-30340

main69005-30340-05iMS123..ARL198308-198509

BEIGE,BEIGE,TRIM4#

sub69005-30340

main69005-30350-02iMS123..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main69005-30350-04iMS123..SAL198308-198509

BLUE,BLUE,TRIM8#

main69005-30350-05iMS123..SAL198308-198509

BEIGE,BEIGE,TRIM4#

main69005-30360-02iLS120,MS12#,YS120..SED..(ROY,SAL)..(GEN,SAA)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub69005-30360

main69005-30360-04iLS120,MS12#,YS120..SED..(ROY,SAL)..(GEN,SAA)198308-198509

BLUE,BLUE,TRIM8#

sub69005-30360

main69005-30360-05iLS120,MS12#,YS120..SED..(ROY,SAL)..(GEN,SAA)198308-198509

BEIGE,BEIGE,TRIM4#

sub69005-30360

main69005-30390iMS12#..SED..(ROY,SAL)198509-198708

main69005-30400iMS122,125..HT198509-198708

main69005-30410iLS120..4F;LS120..LHD;MS122,YS120..DLX,STD198509-198708

main69005-91711-02iMS122..WG198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub69005-91711

main69005-91711-05iMS122..WG198308-198509

BEIGE,BEIGE,TRIM4#

sub69005-91711

main69005-91712iMS122..WG198509-198708

69503AKEY, BLANK

main90999-00084iMS123..SAL198308-198509

MASTER KEY,W(*68),MASTER KEY

sub90999-00214

main90999-00088iMS123..SAL198308-198509

SUB KEY,W(*68),SUB KEY

main90999-00099iLS120,MS12#,YS120..ARL,GEN,SAA198308-198708

MASTER KEY,MASTER KEY

main90999-00100iLS120,MS12#,YS120..ARL,GEN,SAA198308-198708

SUB KEY,SUB KEY

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-30040iLS120,MS12#,YS120..SED198308-198708

main69561-30050iMS122,125..HT198509-198708

69685PAD, LOCK CYLINDER

main69513-14010iMS122..WG198308-198708

DECK

main69563-32010iLS120,YS120..STD;MS123..ARL,EUG,SWZ198308-198708

9015140005

main90151-40005

9161140610

main91611-40610

14 parts on this diagram · 2 diagrams in section
