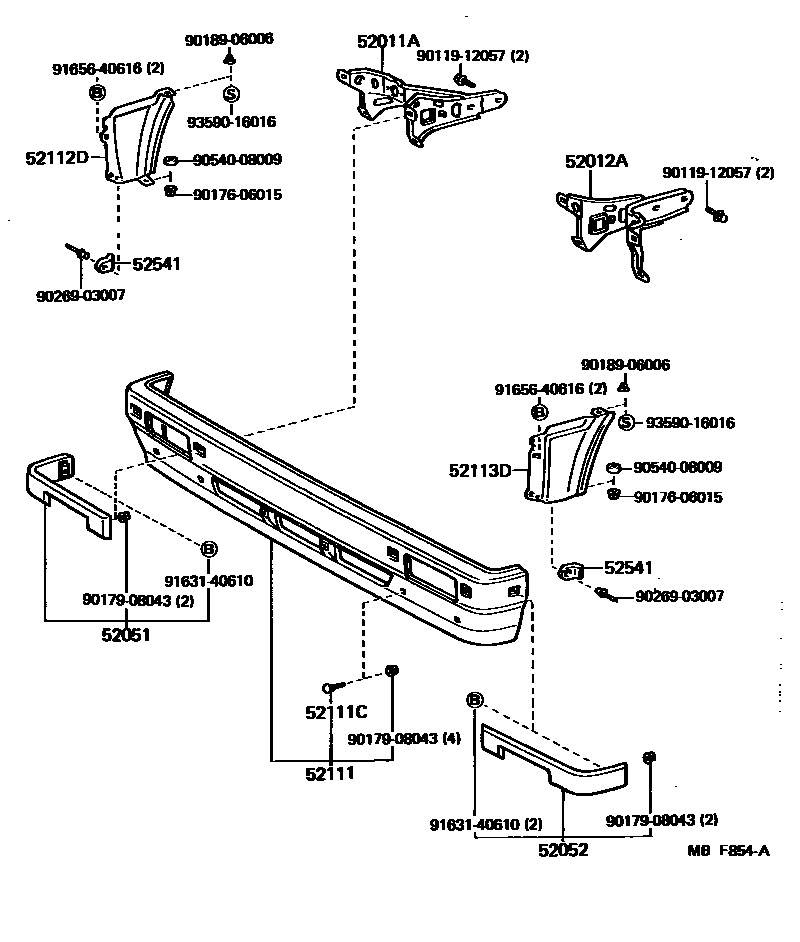

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-30140iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-30150iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

52051PAD SUB-ASSY, FRONT BUMPER, RH

main52051-39075iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

52052PAD SUB-ASSY, FRONT BUMPER, LH

main52052-39055iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

52111BUMPER ASSY, FRONT

main52111-30160iLS120,MS122,YS120..SED..(DLX,SAL,STD)..GEN198611-198708

main52111-39415iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198611

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08031×4iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

52112DEXTENSION, FRONT BUMPER, RH

main52112-30030iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

52113DEXTENSION, FRONT BUMPER, LH

main52113-30010iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

52541PROTECTOR, FRONT BUMPER

main52541-30030×2iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

9011912057

main90119-12057

9017606015

main90176-06015

9017908043

main90179-08043

9018906006

main90189-06006

9026903007

main90269-03007

9054008009

main90540-08009

9163140610

main91631-40610

9165640616

main91656-40616

9359016016

main93590-16016

18 parts on this diagram · 4 diagrams in section
