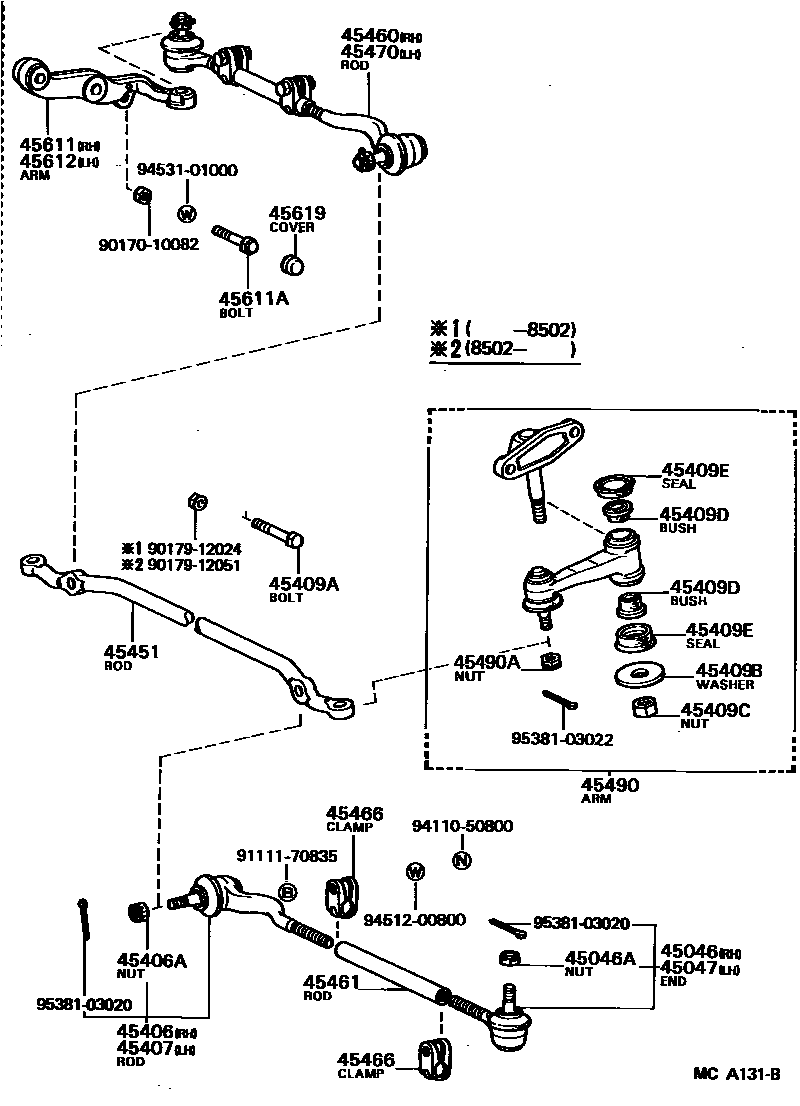

FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45406ROD SUB-ASSY, TIE, RH
45406ANUT, CASTLE(FOR TIE ROD)
45407ROD SUB-ASSY, TIE, LH
45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
L=91.5
L=101
*12-1.25PX91.5-38,L=91.5
*12-1.25PX104-44,L=101
45409BWASHER, PLATE(FOR IDLER ARM RUBBER BUSH)
45409CNUT(FOR IDLER ARM SUPPORT)
45409DBUSH(FOR IDLER ARM)
45409ESEAL, DUST(FOR IDLER ARM SUPPORT)
45451ROD, STEERING RELAY
W/POWER STEERING
W/POWER STEERING
45460ROD ASSY, TIE, RH
45461ROD, STEERING TIE
45466CLAMP, TIE ROD END
45470ROD ASSY, TIE, LH
45490ARM ASSY, STEERING IDLER
W/POWER STEERING
W/POWER STEERING
45490ANUT, CASTLE(FOR IDLER ARM)
45611ARM, STEERING KNUCKLE, RH
W/POWER STEERING
45611ABOLT, KNUCKLE STOPPER
45612ARM, STEERING KNUCKLE, LH
W/POWER STEERING
45619COVER, KNUCKLE STOPPER
9017010082
main90170-10082
9017912024
main90179-12024
9017912051
main90179-12051
9111170835
main91111-70835
9411050800
main94110-50800
9451200800
main94512-00800
9453101000
main94531-01000
9538103020
main95381-03020
9538103022
main95381-03022
31 parts on this diagram · 4 diagrams in section
