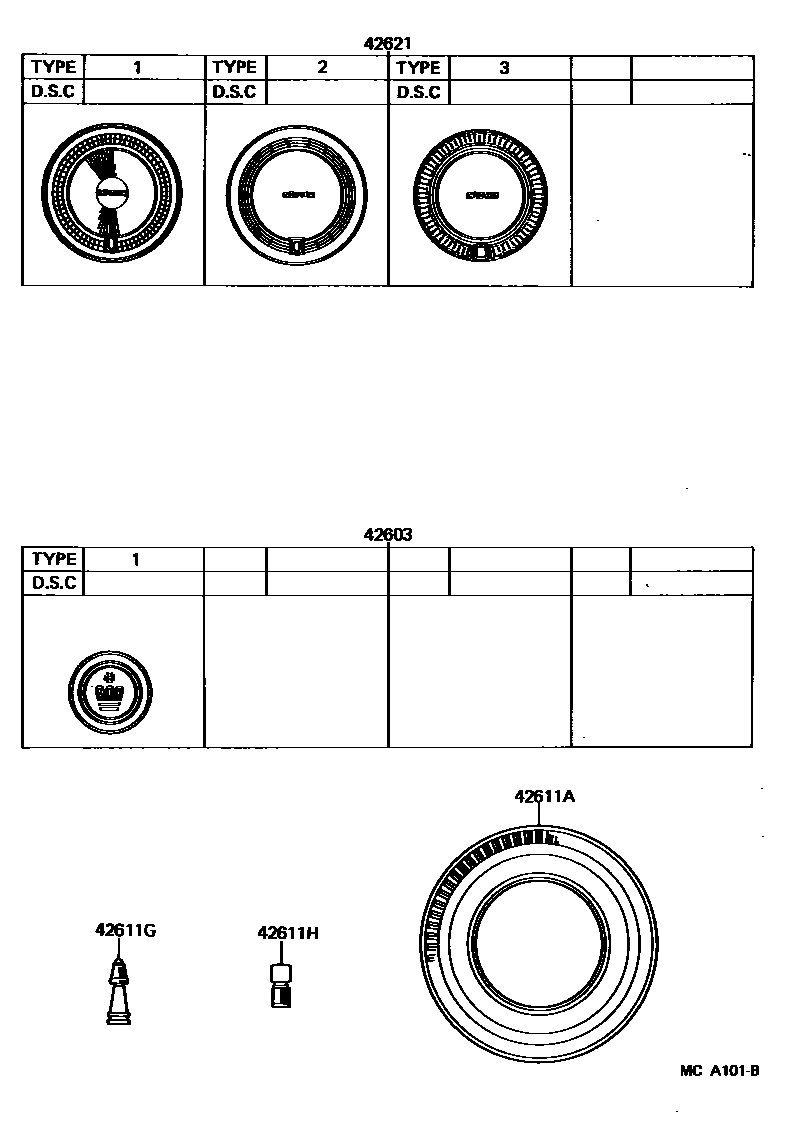

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30070iLS120,MS12#..ROY,SAL198308-198708

W/ALUMI WHEEL,TYPE 1

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-30030iLS120,MS122,YS120;MS123,125..RHD..GEN198308-198708

185SR14,W/TUBE

main42605-30120iLS120..RHD..STD198308-198708

6.40-14-6,W/TUBE

main42605-30130iMS122..SED..LHD..SAL..GEN198604-198708

185SR14,W/TUBE,W/ALUMI WHEEL

main42605-30140iMS122..SED..LHD..SAL..GEN198604-198708

185HR14,W/TUBE

main42605-30150iMS122..SED..LHD..SAL..GEN198604-198708

195/70HR14,W/TUBE

main42605-31030iYS120..LHD..STD198308-198708

6.95-14-6,W/TUBE

main42652-30050iLS120,MS122,YS120..GEN198308-198604

185SR14,TUBELESS

main42652-30051iMS122..SAA198604-198708

185SR14,TUBELESS

main42652-30070iMS122,YS120..LHD..(SAL,STD)198408-198708

185HR14,TUBELESS

main42652-30110iMS122..WG198308-198708

195/70HR14,TUBELESS

main42652-30120iMS123..ARL198308-198708

195/70HR14,TUBELESS

main42652-30140iMS125..RHD198612-198708

195/70SR14,TUBELESS

main98031-69142iLS120,YS120..STD198308-198708

6.95-14-4,W/TUBE

main98521-69142iLS120,YS120..STD198308-198708

6.95-14-4,TUBELESS

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004iYS120..STD;LS120,MS12#198308-198708

main90942-05009iLS120,MS12#..ROY,SAL198308-198708

W/ALUMI WHEEL

42611HEXTENSION, VALVE

main90942-05006iMS122;LS120,MS123,125,YS120..RHD..GEN198308-198708

42621CAP, WHEEL

main42621-30230iMS12#..ROY198308-198509

THAILAND SPEC,TYPE 1

main42621-30230iYS120..SAL198308-198509

TYPE 1

main42621-30240iLS120,MS122,123,YS120..SAL..(EUG,GEN,SWZ)198308-198708

TYPE 2

main42621-30260iLS120,MS122,YS120..DLX,STD198308-198708

TYPE 3

main42621-30270iMS12#..ROY198509-198708

THAILAND SPEC,TYPE 1

main42621-30270iMS122..SAL..SAA198509-198708

TYPE 1

5 parts on this diagram · 2 diagrams in section
