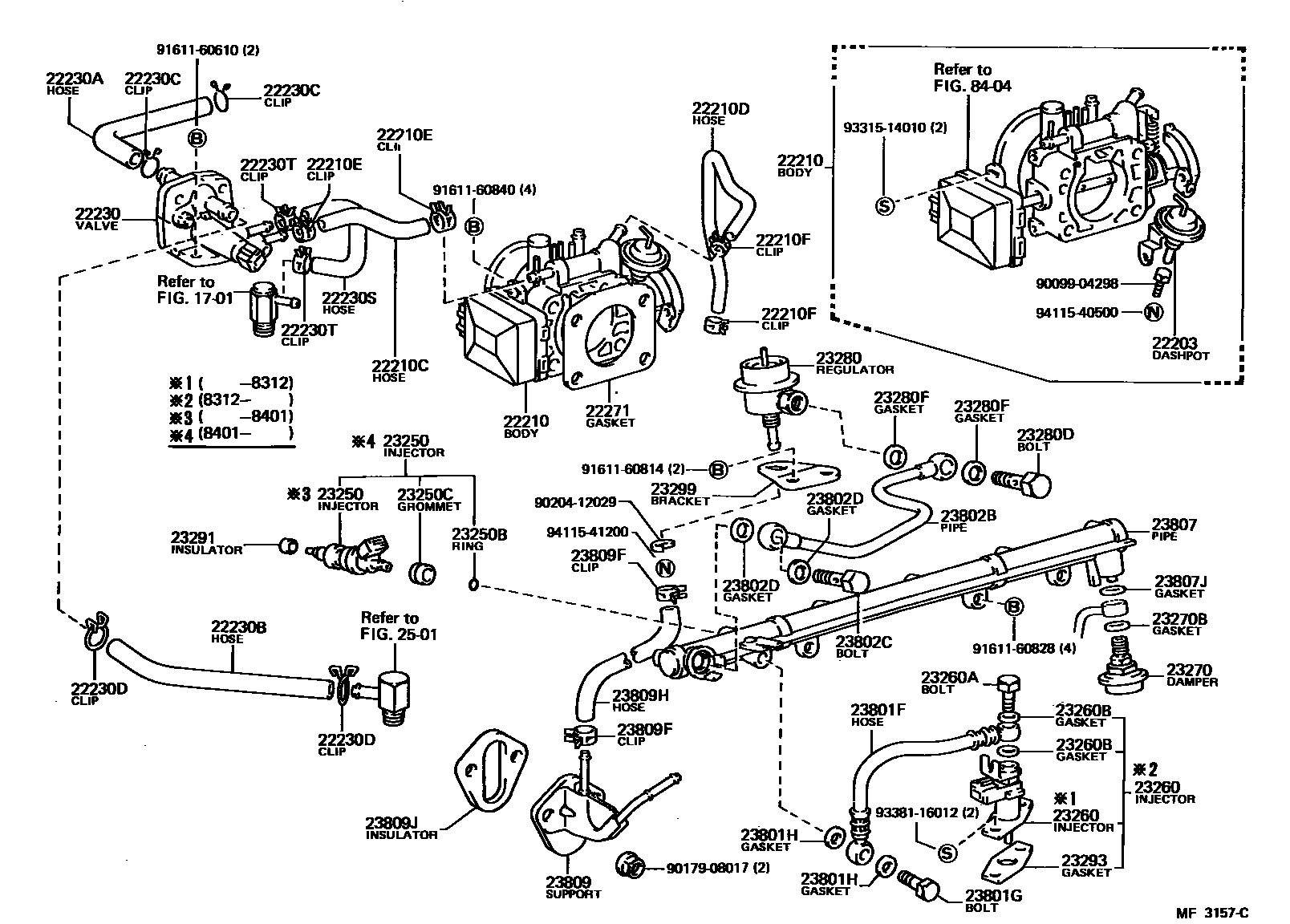

FUEL INJECTION SYSTEM
1701
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
sub96135-51300
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
sub96135-51300
22230VALVE ASSY, AUXILIARY AIR
22230AHOSE, AUXILIARY AIR VALVE, NO.1
22230BHOSE, AUXILIARY AIR VALVE, NO.2
22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1
22230SHOSE, WATER BY-PASS(FOR AUXILIARY AIR VALVE)
22230TCLAMP OR CLIP, HOSE(FOR WATER BY-PASS)
sub96135-51300
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
sub23260-49065
sub23260-49085
sub23260-49066
sub23260-49086
sub23260-49096
23260ABOLT, UNION
23260BGASKET
23270BGASKET(FOR PULSATION DAMPER HOSE)
DAMPER SIDE
23280REGULATOR ASSY, FUEL PRESSURE
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280FGASKET(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23299BRACKET, FUEL PRESSURE REGULATOR
23801FHOSE, FUEL, NO.1
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23802BPIPE SUB-ASSY, FUEL, NO.2
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807JGASKET, PIPE FUEL DELIVARY INLET
23809SUPPORT SUB-ASSY, FUEL PIPE
23809FCLIP(FOR FUEL PIPE SUPPORT)
sub96135-51300
23809JINSULATOR, FUEL PIPE SUPPORT
sub90923-06012
2501
8404
9009904298
main90099-04298
9017908017
main90179-08017
9020412029
main90204-12029
9161160610
main91611-60610
9161160814
main91611-60814
9161160828
main91611-60828
9161160840
main91611-60840
9331514010
main93315-14010
9338116012
main93381-16012
9411540500
main94115-40500
9411541200
main94115-41200
54 parts on this diagram · 7 diagrams in section
