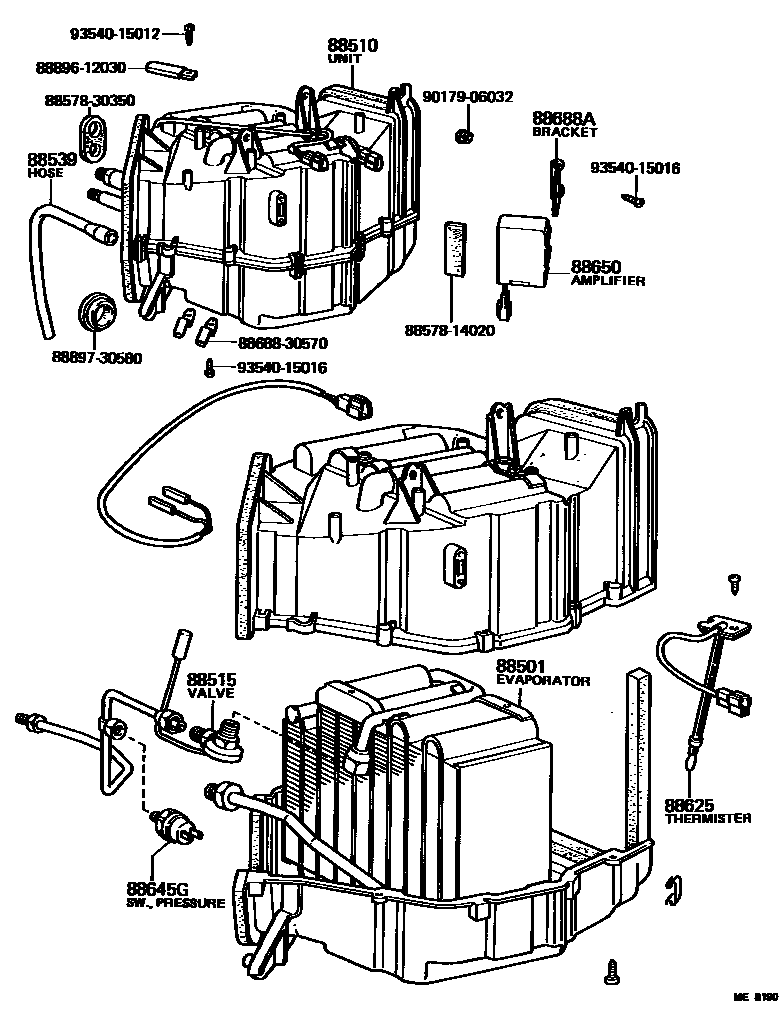

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0005 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-30540iMS11#..SED197909-198307

RR COOLER

main88501-30550iLS110,MS11#,RS110..RHD197909-198307

main88501-30560iLS110,MS11#,RS110..LHD197909-198307

88510UNIT ASSY, COOLER

main88510-30690iMS11#..RHD..ROY197909-198307

main88510-30700iMS11#..LHD..ROY197909-198307

main88510-30720iMS11#..ROY197909-198108

RR COOLER

main88510-30740iMS11#..RHD..(DLX,SAL)197909-198307

W/HEATER

main88510-30750iMS11#..LHD..(BTP,DLX,SAL)197909-198307

W/HEATER

main88510-30760iLS110,RS110..RHD; MS11#..RHD..(DLX,SAL)..GEN..CBR197909-198307

W/BOOST VENTILATOR

main88510-30770iLS110,RS110..LHD; MS11#..LHD..(BTP,DLX,SAL)..CBR197909-198307

W/BOOST VENTILATOR

main88510-30790iMS11#..SED..(BTP,DLX,SAL)197909-198307

RR COOLER

main88510-30810iMS112..ROY198108-198307

RR COOLER

88515VALVE, COOLER EXPANSION

main88515-20040iLS110,RS110; MS11#..(BTP,DLX,SAL)..GEN197909-198307

W/BOOST VENTILATOR

main88515-30310iMS11#..SED197909-198307

RR COOLER

main88515-30320iMS11#197909-198307

W/HEATER

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30530iLS110,MS11#,RS110197909-198307

88625THERMISTOR, COOLER, NO.1

main88625-30520iLS110,RS110..RHD; MS11#..RHD..(DLX,SAL)..GEN197909-198307

W/BOOST VENTILATOR

main88625-30540iLS110,RS110..LHD; MS11#..LHD..(BTP,DLX,SAL)..CBR197909-198307

W/BOOST VENTILATOR

88645GSWITCH, PRESSURE

main88645-22010iMS11#..ROY197909-198307

main88645-22020iLS110,MS11#,RS110..BTP,DLX,SAL197909-198307

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14030iLS110; MS11#..BTP,DLX,SAL197909-198307

FR; FR,W/BOOST VENTILATOR

main88650-14051iRS110197909-198108

FR

main88650-30370iMS11#..ROY197909-198307

FR

main88650-30390iRS110..LHD198108-198307

FR

main88650-30410iMS112..SED198108-198307

RR

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-30580iLS110,RS110; MS11#..BTP,DLX,SAL197909-198307

FR; FR,W/BOOST VENTILATOR

main88688-30650iMS112..SED..(DLX,SAL)198108-198307

RR

8857814020PAKING, COOLER AIR DUCT

main88578-14020

8857830350PAKING, COOLER AIR DUCT

main88578-30350

8868830570BRACKET, COOLER DIAPHRAGM

main88688-30570

8889612030PLATE, COOLER AIR OUTLET GRILLE ORNAMENT

main88896-12030

8889730580VALVE, COOLER MAGNET

main88897-30580

9017906032

main90179-06032

9354015012

main93540-15012

9354015016

main93540-15016

16 parts on this diagram · 5 diagrams in section
