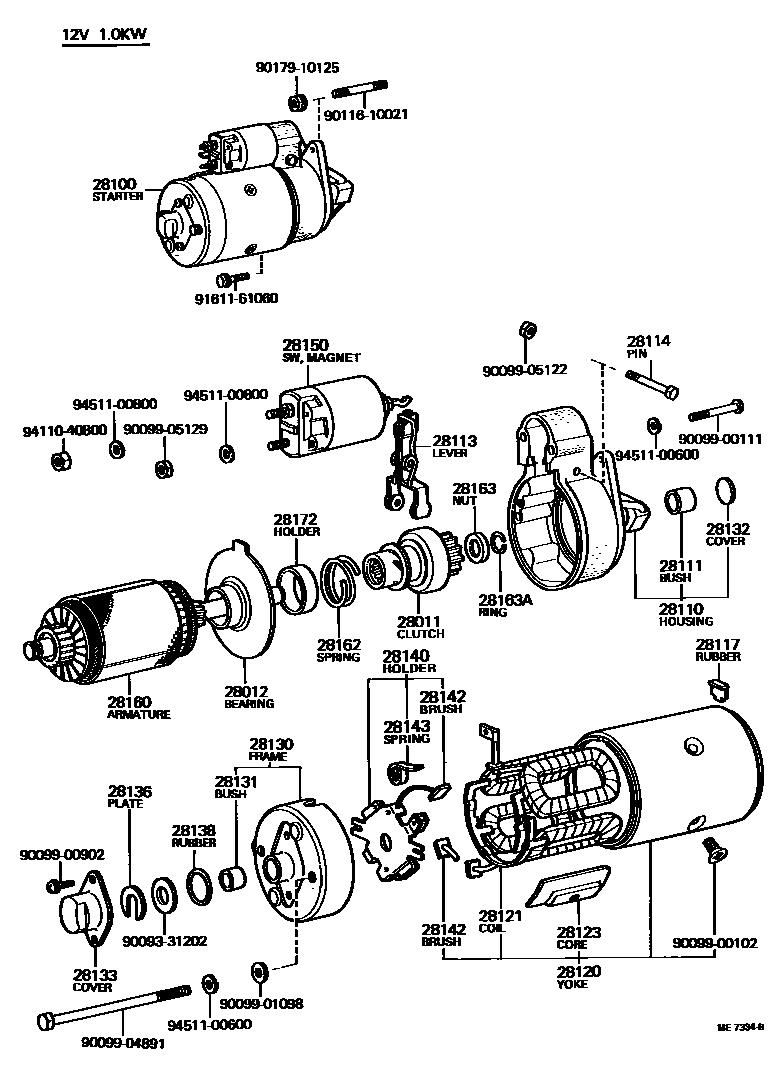

STARTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i5ME..MS112..EUR197909-198307

12V 1.4KW

main28011-41020i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

main28011-54010iL..LS110197909-198108

12V 2.5KW

main28011-54070iL..LS110..MTM198108-198307

12V 2.0KW

28012BEARING SUB-ASSY, CENTER

main28126-33021i4M,5M#..MS11#197909-198108

12V 1.0KW

sub28126-33020

main28126-40061i5R..RS110197909-198108

12V 1.0KW

28100STARTER ASSY

main28100-41060i5M#..MS112198108-198307

12V 1.0KW,12V 1.0KW

sub28100-45050

main28100-42021i4M,5M#..MS11#197909-198108

12V 1.0KW

sub28100-42070

main28100-44041i5R..RS110197909-198108

12V 1.0KW

sub28100-35120

main28100-44050i5R..RS110198108-198307

12V 1.0KW

main28100-45033i5ME..MS112..EUR197909-198307

12V 1.4KW,12V 1.4KW

sub28100-45050

main28100-54061iL..LS110..4FC198108-198307

12V 2.5KW,12V 2.5KW

sub28100-54220

main28100-54070iL..LS110..MTM198108-198307

12V 2.0KW,12V 2.0KW

sub28100-54180

28110HOUSING ASSY, STARTER DRIVE

main28110-41021i4M,5M#..MS11#197909-198108

12V 1.0KW

main28110-41060i5M#..MS112198108-198307

12V 1.0KW

main28110-44040i5R..RS110197909-198108

12V 1.0KW

main28110-44050i5R..RS110198108-198307

12V 1.0KW

main28115-45021i5ME..MS112..EUR197909-198307

12V 1.4KW

main28115-54011iL..LS110..4FC198108-198307

12V 2.5KW

main28115-54070iL..LS110..MTM198108-198307

12V 2.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

28113LEVER, STARTER PINION DRIVE

main28113-41011i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

28114PIN, STARTER DRIVE LEVER SET

main28114-41011i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

28117RUBBER(FOR STARTER YOKE)

main28117-41020i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

28120YOKE ASSY, STARTER

main28120-26070i5M#..MS112198108-198203

12V 1.0KW

main28120-26071i5M#..MS112198203-198307

12V 1.0KW

main28120-34030i5ME..MS112..EUR197909-198307

12V 1.4KW

main28120-42020i4M,5M#..MS11#197909-198108

12V 1.0KW

main28120-44041i5R..RS110197909-198108

12V 1.0KW

main28120-44050i5R..RS110198108-198307

12V 1.0KW

main28120-47040iL..LS110..4FC198108-198307

12V 2.5KW

main28120-54070iL..LS110..MTM198108-198307

12V 2.0KW

28121COIL, STARTER FIELD

main28121-34070i4M,5ME,5R..MS11#,RS110197909-198004

12V 1.0KW

main28121-42020i4M,5M#,5R..MS11#,RS110198004-198108

12V 1.0KW

28123CORE, STARTER POLE

main28123-41020×4i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15020i5M#..MS112198108-198307

12V 1.0KW

main28130-40060i5R..RS110197909-198108

12V 1.0KW

main28130-41020i4M,5M#..MS11#197909-198108

12V 1.0KW

main28130-44050i5R..RS110198108-198307

12V 1.0KW

main28130-54060iL..LS110197909-198108

12V 2.5KW

sub28130-54430

sub28199-46080

sub90099-04207

28131BUSH, COMMUTATOR END FRAME

main28131-20010i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW,STD

main90099-10039i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW,U/S 0.3

main90099-10040i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW,U/S 0.5

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-41011i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

28133COVER, BEARING(FOR END FRAME)

main28132-40010i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

28136PLATE, STARTER LOCK

main28136-40010i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-40010i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

sub28138-26030

28140HOLDER ASSY, STARTER BRUSH

main28140-25020i5R..RS110197909-198108

12V 1.0KW

main28140-26070i5M#,5R..MS112,RS110198108-198307

12V 1.0KW

main28140-34030i5ME..MS112..EUR197909-198307

12V 1.4KW

main28140-41020i4M,5M#..MS11#197909-198108

12V 1.0KW

main28140-54070iL..LS110..MTM198108-198307

12V 2.0KW

main28140-77090iL..LS110197909-198108

12V 2.5KW

28142BRUSH, STARTER

main28142-25011×4i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

28143SPRING, STARTER BRUSH

main28143-40010×4i4M,5M#..MS11#197909-198108

12V 1.0KW

main28143-40040×4i5R..RS110197909-198108

12V 1.0KW

main90099-17112×4i5ME..MS112..EUR197909-198307

12V 1.4KW

main90099-17115×4iL..LS110..MTM198108-198307

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-34070i5R..RS110197909-198108

12V 1.0KW

main28150-41060i5M#..MS112198108-198307

12V 1.0KW

main28150-44050i5R..RS110198108-198307

12V 1.0KW

main28150-45032i5ME..MS112..EUR197909-198307

12V 1.4KW

main28150-54011iL..LS110197909-198108

12V 2.5KW

sub28150-54190

main28150-54070iL..LS110..MTM198108-198307

12V 2.0KW

sub28150-54110

main28150-60040i4M,5M#..MS11#197909-198108

12V 1.0KW

28160ARMATURE ASSY, STARTER

main28160-26050i5ME..MS112..EUR197909-198307

12V 1.4KW

main28160-26070i5M#,5R..MS112,RS110198108-198307

12V 1.0KW

sub28160-26071

main28160-41020i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

main28160-47040iL..LS110197909-198108

12V 2.5KW

sub28160-54140

main28160-54070iL..LS110..MTM198108-198307

12V 2.0KW

sub28160-54071

28162SPRING, STARTER BRAKE

main28162-41022i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

28172HOLDER, STARTER SPRING

main28172-41021i4M,5M#,5R..MS11#,RS110197909-198108

12V 1.0KW

9009331202

main90093-31202

9009900102

main90099-00102

9009900111

main90099-00111

9009900902

main90099-00902

9009901098

main90099-01098

9009904891

main90099-04891

9009905122

main90099-05122

9009905129

main90099-05129

9011610021

main90116-10021

9017910125

main90179-10125

9161161060

main91611-61060

9411040800

main94110-40800

9451100600

main94511-00600

9451100800

main94511-00800
