SHORT BLOCK ASSEMBLY

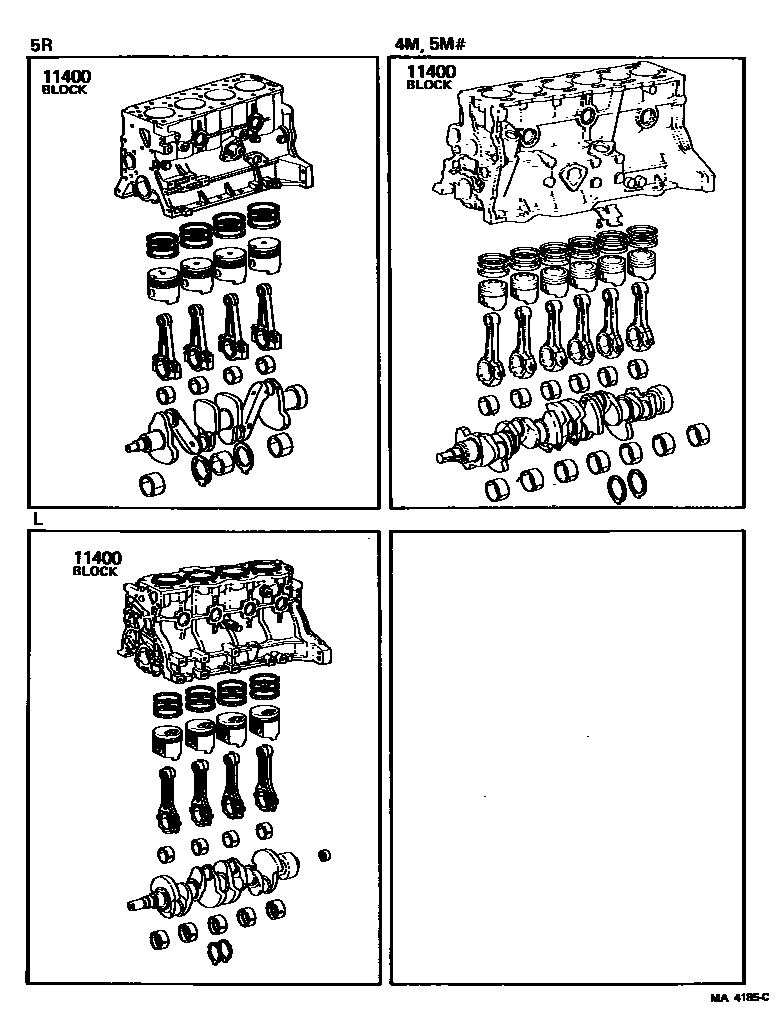

Parts diagram

11400BLOCK ASSY, SHORT

main11400-43020i197909-198307

main11400-43030i198008-198307

main11400-45023i197909-198008

main11400-49035i197909-198307

main11400-54010i197909-198105

main11400-54011i198105-198107

main11400-54012i198201-198304

main11400-54013i198304-198307

main11400-54020i198201-198202

main11400-54021i198202-198304

main11400-54070i198304-198307

1 parts on this diagram · 1 diagram in section
