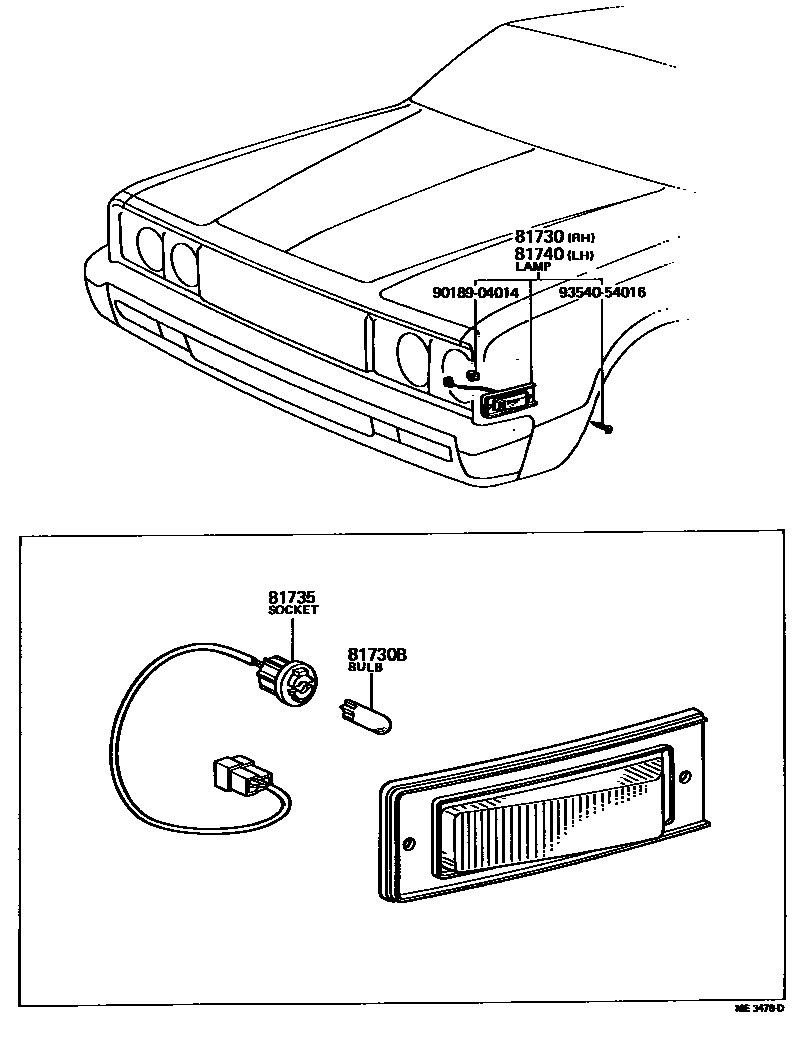

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-39095iMS8#,95,RS80197410-197802

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-11013×2iMS8#,95,RS80197410-197802

12V 5W T10,12V 5W

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main81735-30080×2iMS8#,95,RS80197410-197802

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-39095iMS8#,95,RS80197410-197802

9018904014

main90189-04014

9354054016

main93540-54016

6 parts on this diagram · 1 diagram in section
