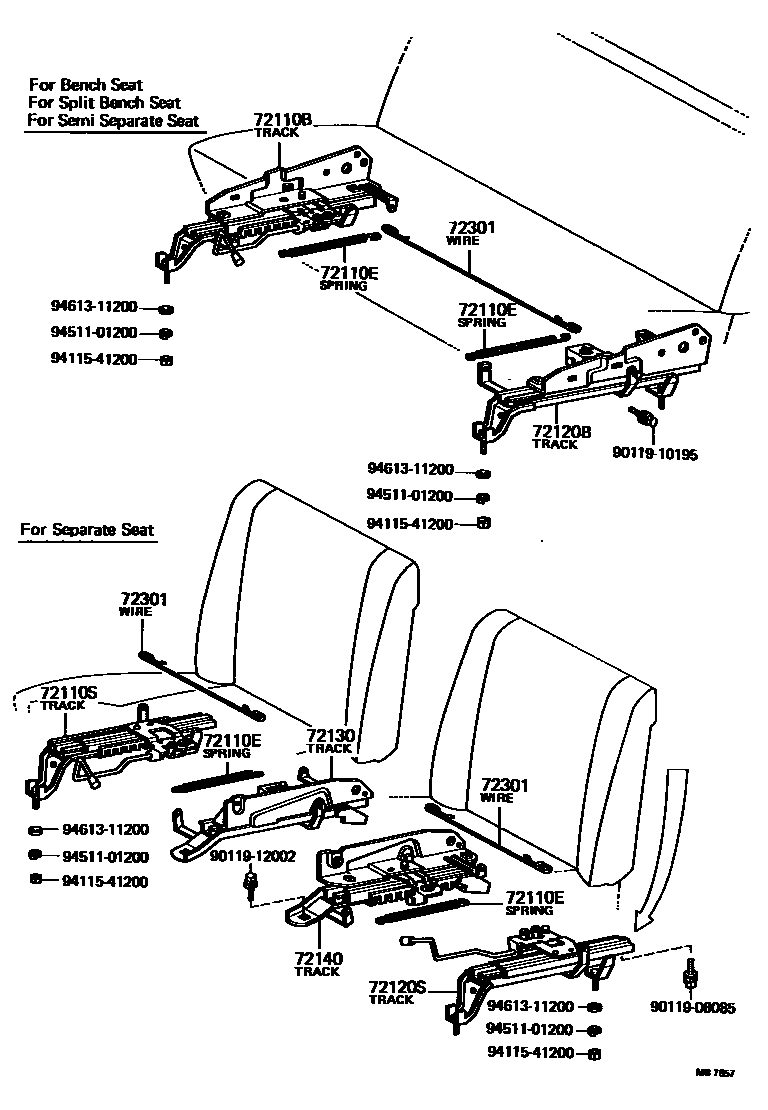

SEAT TRUCK

0001 1 0002 1

72110BTRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)

main72110-30100iMS85,88,RS80..RHD..(3H,3HC,4H)..(BTP,STD)197410-197908

FOR BENCH SEAT

main72110-30110iMS83,85..RHD..(3H,3HC)..(DLX,ROY,SAL)197410-197908

FOR SP-BN.& SM-SP.

main72110-30120iMS85..LHD..(3H,3HC)..(ROY,SAL)197410-197908

FOR SEMI SEPARATE SEAT

main72110-30130iMS8#,RS80..LHD..(3H,3HC,4H)..(BTP,DLX,STD)197410-197908

FOR SP-BN.& BN.

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90506-18439×2iMS8#,95,RS80..4D; MS95..2D197502-197908

L=174

main90506-18488iMS8#,95,RS80..4D; MS95..2D197410-197502

L=184

main90506-20006iMS95..2D197502-197908

L=197

main90506-20469iMS95..2D197410-197502

L=175

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-30090iMS8#,95,RS80..(3FC,4F)..4D; MS95..RHD..2D197410-197908

main72110-30140iMS95..LHD..2D197410-197908

72120BTRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)

main72120-30090iMS8#,RS80..RHD..(3H,3HC,4H)..(BTP,DLX,STD)197410-197908

FOR SP-BN.& BN.

main72120-30100iMS85..RHD..(3H,3HC)..(ROY,SAL)197410-197908

FOR SEMI SEPARATE SEAT

main72120-30120iMS85,88,RS80..LHD..(3H,3HC,4H)..(BTP,STD)197410-197908

FOR BENCH SEAT

main72120-30130iMS83,85..LHD..(3H,3HC)..(DLX,ROY,SAL)197410-197908

FOR SP-BN.& SM-SP.

72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

main72120-30080iMS8#,95,RS80..(3FC,4F)..4D; MS95..LHD..2D197410-197908

main72120-30140iMS95..RHD..2D197410-197908

72130TRACK ASSY, RH SEAT, INNER

main72130-30020iMS8#,95,RS80..3FC,4F197410-197908

72140TRACK ASSY, LH SEAT, INNER

main72140-30020iMS8#,95,RS80..3FC,4F197410-197908

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-30050iMS83,88..3H; MS85,RS80..(3H,3HC,4H)..(BTP,DLX); MS85..3HC..ROY197510-197707

FOR SM-SP.L=1138; FOR SP-BN.& BN.L=1138

main72301-30060×2iMS8#,95,RS80..3FC,4F197410-197908

FOR SP.L=338.5

main72301-30070iMS85..(3H,3HC)..SAL197510-197707

FOR SM-SP.L=1163

9011908085

main90119-08085

9011910195

main90119-10195

9011912002

main90119-12002

9411541200

main94115-41200

9451101200

main94511-01200

9461311200

main94613-11200

14 parts on this diagram · 2 diagrams in section
