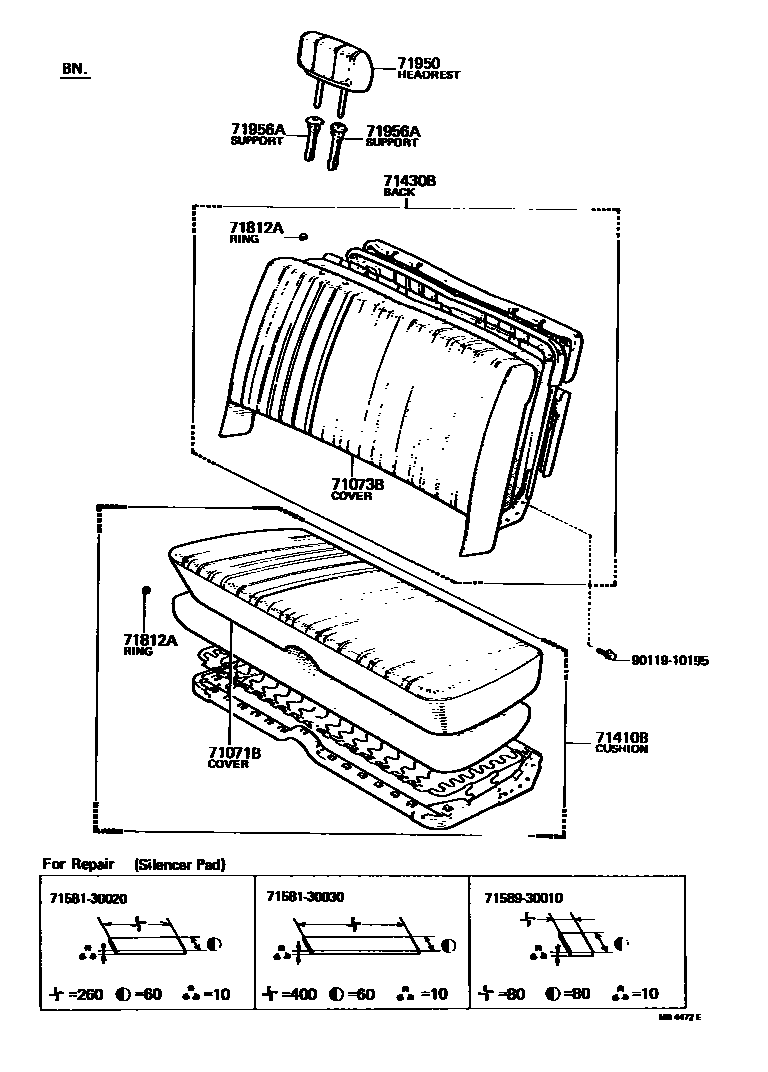

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

71071BCOVER, FRONT SEAT CUSHION(FOR BENCH TYPE)

main71071-30510-03iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197410-197611

IM-FB.GRAY,GRAY,TRIM1#

main71071-30510-06iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197410-197611

IM-FB.BROWN,BROWN,TRIM4#

main71071-30511-03iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197611-197804

IM-FB.GRAY,GRAY,TRIM1#

main71071-30511-04iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197611-197802

IM-FB.BLUE,BLUE,TRIM8#

main71071-30511-05iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197802-197804

IM-FB.BEIGE,BEIGE,TRIM4#

main71071-30512-03iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197804-197908

IM-FB.GRAY,GRAY,TRIM1#

main71071-30512-05iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197804-197908

IM-FB.BEIGE,BEIGE,TRIM4#

71073BCOVER, FRONT SEATBACK(FOR BENCH TYPE)

main71073-30420-03iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197410-197611

IM-FB.GRAY,GRAY,TRIM1#

main71073-30420-06iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197410-197611

IM-FB.BROWN,BROWN,TRIM4#

main71073-30421-03iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197611-197804

IM-FB.GRAY,GRAY,TRIM1#

main71073-30421-04iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197611-197802

IM-FB.BLUE,BLUE,TRIM8#

main71073-30421-05iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197802-197804

IM-FB.BEIGE,BEIGE,TRIM4#

main71073-30422-03iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197804-197908

IM-FB.GRAY,GRAY,TRIM1#

main71073-30422-05iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197804-197908

IM-FB.BEIGE,BEIGE,TRIM4#

71410BCUSHION ASSY, FRONT SEAT(FOR BENCH TYPE)

main71410-30410-03iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197410-197611

IM-FB.GRAY,GRAY,TRIM1#

main71410-30410-06iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197410-197611

IM-FB.BROWN,BROWN,TRIM4#

main71410-30411-03iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197611-197804

IM-FB.GRAY,GRAY,TRIM1#

main71410-30411-04iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197611-197802

IM-FB.BLUE,BLUE,TRIM8#

main71410-30411-05iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197802-197804

IM-FB.BEIGE,BEIGE,TRIM4#

main71410-30412-03iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197804-197908

IM-FB.GRAY,GRAY,TRIM1#

main71410-30412-05iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197804-197908

IM-FB.BEIGE,BEIGE,TRIM4#

71430BBACK ASSY, FRONT SEAT(FOR BENCH TYPE)

main71430-30460-03iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197410-197611

IM-FB.GRAY,GRAY,TRIM1#

main71430-30460-06iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197410-197611

IM-FB.BROWN,BROWN,TRIM4#

main71430-30461-03iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197611-197804

IM-FB.GRAY,GRAY,TRIM1#

main71430-30461-04iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197611-197802

IM-FB.BLUE,BLUE,TRIM8#

main71430-30461-05iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197802-197804

IM-FB.BEIGE,BEIGE,TRIM4#

main71430-30462-03iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197804-197908

IM-FB.GRAY,GRAY,TRIM1#

main71430-30462-05iMS85,88,RS80..(3H,3HC,4H)..(BTP,STD)197804-197908

IM-FB.BEIGE,BEIGE,TRIM4#

main71430-30680-03iMS85..LHD..3H..BTP197511-197611

SU.OMAN TAXI SPEC. IM-FB.GRAY,GRAY,TRIM1#

main71430-30680-06iMS85..LHD..3H..BTP197511-197611

SU.OMAN TAXI SPEC. IM-FB.BROWN,BROWN,TRIM4#

main71430-30681-03iMS85..LHD..3H..BTP197611-197804

SU.OMAN TAXI SPEC. IM-FB.GRAY,GRAY,TRIM1#

main71430-30681-04iMS85..LHD..3H..BTP197611-197802

SU.OMAN TAXI SPEC. IM-FB.BLUE,BLUE,TRIM8#

main71430-30681-05iMS85..LHD..3H..BTP197802-197804

SU.OMAN TAXI SPEC. IM-FB.BEIGE,BEIGE,TRIM4#

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071iMS8#,95,RS80197410-197908

71950HEADREST ASSY, FRONT SEAT

main71910-30150-03×2iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197611

GRAY,GRAY,TRIM1#

main71910-30150-06×2iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197611

BROWN,BROWN,TRIM4#

main71910-30150-08×2iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197611

IVORY,IVORY,TRIM0#

main71910-30151-03×2iMS8#,95,RS80..BTP,DLX,SAL,STD197611-197908

GRAY,GRAY,TRIM1#

main71910-30151-04×2iMS8#,95,RS80..BTP,DLX,SAL,STD197611-197908

BLUE,BLUE,TRIM8#

main71910-30151-05×2iMS8#,95,RS80..BTP,DLX,SAL,STD197611-197908

BEIGE,BEIGE,TRIM4#

main71910-30160-03×2iMS85..ROY197511-197611

GRAY,GRAY,TRIM1#

main71910-30160-06×2iMS85..ROY197511-197611

BROWN,BROWN,TRIM4#

main71910-30160-08×2iMS85..ROY197511-197611

IVORY,IVORY,TRIM0#

main71910-30180-03×2iMS85..ROY197611-197908

GRAY,GRAY,TRIM1#

main71910-30180-04×2iMS85..ROY197611-197908

BLUE,BLUE,TRIM8#

main71910-30180-05×2iMS85..ROY197611-197908

BEIGE,BEIGE,TRIM4#

71956ASUPPORT, FRONT SEAT HEADREST

main71956-30020-01×2iMS8#,95,RS80197410-197908

W/O(LOCK),L/LOCK,BLACK,BLACK

main71956-30020-05×2iMS8#,95,RS80197611-197908

W/O(LOCK),L/LOCK,BEIGE,BEIGE,TRIM4#

main71990-30020-01×2iMS8#,95,RS80197410-197908

W(LOCK),W/LOCK,BLACK,BLACK

main71990-30020-05×2iMS8#,95,RS80197611-197908

W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4#

7158130020PAD, FRONT SEATBACK SILENCER

main71581-30020

7158130030PAD, FRONT SEATBACK SILENCER

main71581-30030

7158930010

main71589-30010

9011910195

main90119-10195

11 parts on this diagram · 7 diagrams in section
