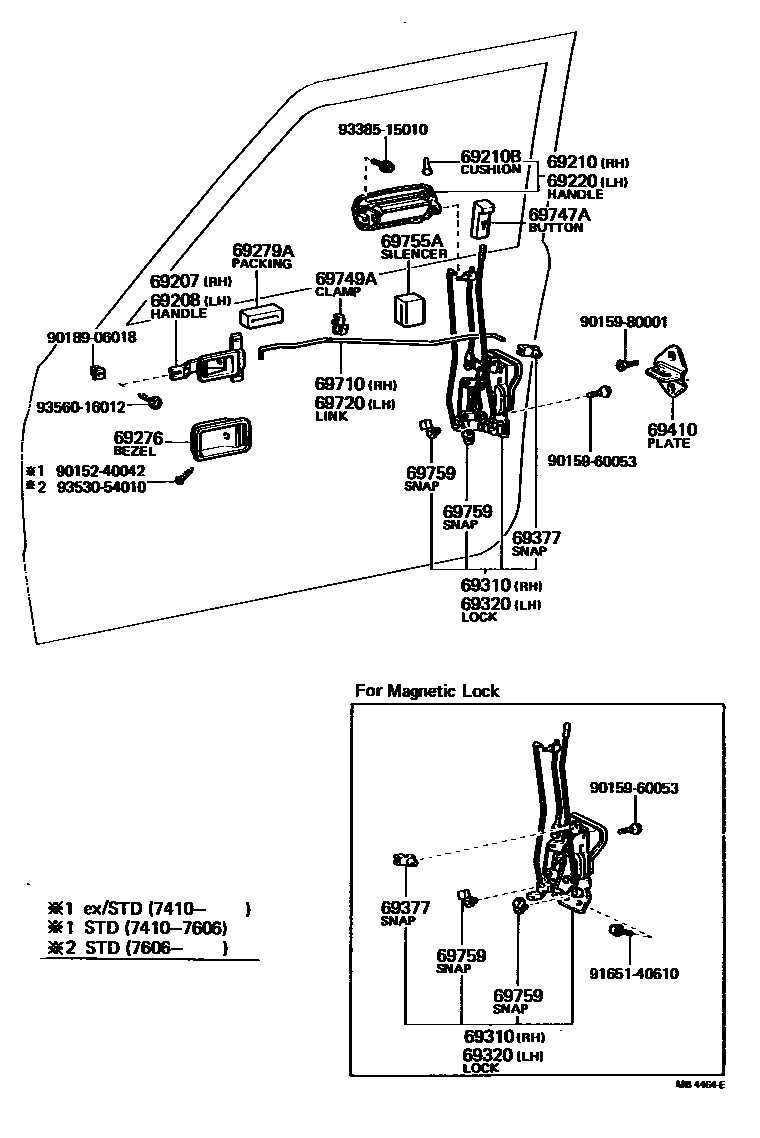

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69207-20030iMS8#,95,RS80197410-197908

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69208-20020iMS8#,95,RS80197410-197908

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30060iMS8#,95,RS80..4D197410-197908

main69210-30070iMS95..2D197410-197908

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iMS8#,95,RS80197410-197908

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-30060iMS8#,95,RS80..4D197410-197908

main69220-30070iMS95..2D197410-197908

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69276-22020-01iMS88197606-197908

BLACK,BLACK

sub69276-22020

main69276-30020iMS8#,95,RS80197410-197908

69279APACKING, DOOR INSIDE HANDLE(FOR FRONT DOOR)

main69269-30010iMS95197410-197908

69310LOCK ASSY, FRONT DOOR, RH

main69310-30170iMS85,88,RS80..BTP,STD197410-197802

sub69310-30171

main69310-30171iMS85,88,RS80..BTP,STD197802-197908

main69310-30190iMS83,85..DLX,ROY,SAL197410-197802

MAGNETIC LOCK

sub69310-30191

main69310-30191iMS83,85..DLX,ROY,SAL197802-197908

MAGNETIC LOCK

main69310-30220iMS95..2D197410-197802

sub69310-30221

main69310-30221iMS95..2D197802-197908

main69310-30250iMS95..4D197412-197802

MAGNETIC LOCK

sub69310-30251

main69310-30251iMS95..4D197802-197908

MAGNETIC LOCK

69320LOCK ASSY, FRONT DOOR, LH

main69320-30160iMS85,88,RS80..BTP,STD197410-197802

sub69320-30161

main69320-30161iMS85,88,RS80..BTP,STD197802-197908

main69320-30180iMS83,85..DLX,ROY,SAL197410-197802

MAGNETIC LOCK

sub69320-30181

main69320-30181iMS83,85..DLX,ROY,SAL197802-197908

MAGNETIC LOCK

main69320-30230iMS95..2D197410-197802

sub69320-30231

main69320-30231iMS95..2D197802-197908

main69320-30250iMS95..4D197412-197802

MAGNETIC LOCK

sub69320-30251

main69320-30251iMS95..4D197802-197908

MAGNETIC LOCK

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69377-30020iMS8#,95,RS80197410-197908

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20050iMS8#,95,RS80197410-197908

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-30020iMS8#,RS80197410-197908

main69711-30030iMS95..2D197410-197908

main69711-30040iMS95..4D197412-197908

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-30020iMS8#,RS80197410-197908

main69712-30040iMS95..4D197412-197908

main69712-30050iMS95..2D197410-197908

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69747-30040iMS8#,95,RS80..4D197410-197611

sub69747-30041

main69747-30041-03iMS8#,95,RS80..4D197611-197908

GRAY,GRAY,TRIM1#

sub69747-30041

main69747-30041-04iMS8#,95,RS80..4D197611-197908

BLUE,BLUE,TRIM8#

sub69747-30041

main69747-30041-05iMS8#,95,RS80..4D197611-197908

BEIGE,BEIGE,TRIM4#

sub69747-30041

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-12010iMS8#,95,RS80197410-197908

69755ASILENCER, FRONT DOOR LOCK LINK

main69759-30021iMS8#,RS80197410-197908

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-12030iMS8#,95,RS80197410-197908

9015240042

main90152-40042

9015960053

main90159-60053

9015980001

main90159-80001

9018906018

main90189-06018

9165140610

main91651-40610

9338515010

main93385-15010

9353054010

main93530-54010

9356016012

main93560-16012

25 parts on this diagram · 2 diagrams in section
