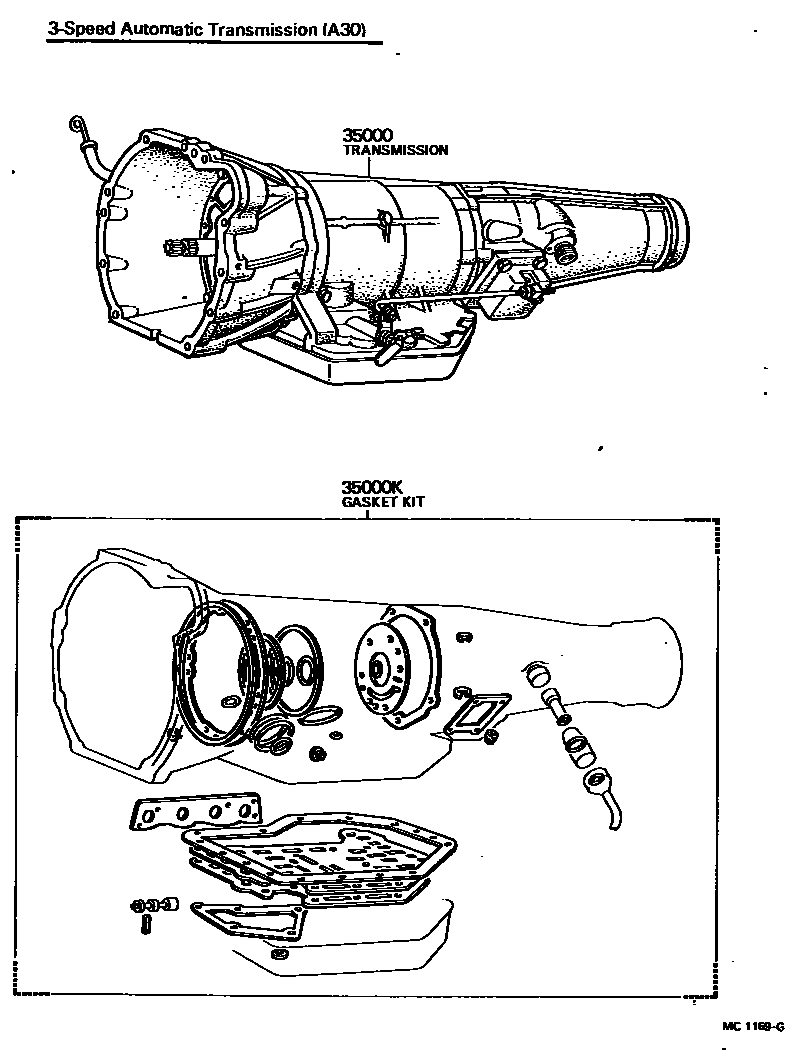

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1 0002 1

35000TRANSMISSION ASSY, AUTOMATIC

main35000-30260iMS83,85,95..RHD..ATM197410-197507

SMG.R=20:6

main35000-30261iMS83,85,95..RHD..ATM197507-197611

SMG.R=20:6

main35000-30300iMS85..LHD..3HC197410-197507

SMG.R=20:6

main35000-30301iMS85..LHD..3HC197507-197611

SMG.R=20:6

main35000-30440iMS85..RHD..3HC197611-197802

SMG.R=20:6

main35000-30441iMS85..RHD..ATM;MS83,95..RHD..3FC..GEN197802-197908

SMG.R=20:6

main35000-30460iMS85,95..3FC;MS83..LHD..3FC..EUR;MS83..3FC..(ARL,GEN)197611-197802

SMG.R=20:6

main35000-30471iMS85..LHD..3HC197611-197908

SMG.R=20:6

main35000-30500iMS83,85..3FC..EUR197611-197809

SMG.R=19:6

main35000-30501iMS83,85..3FC..EUR197809-197908

SMG.R=18:6

35000KGASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-22020iMS83,85,95..ATM197611-197908

main04351-30024iMS83,85,95..ATM197410-197604

main04351-30025iMS83,85,95..ATM197604-197611

2 parts on this diagram · 2 diagrams in section
