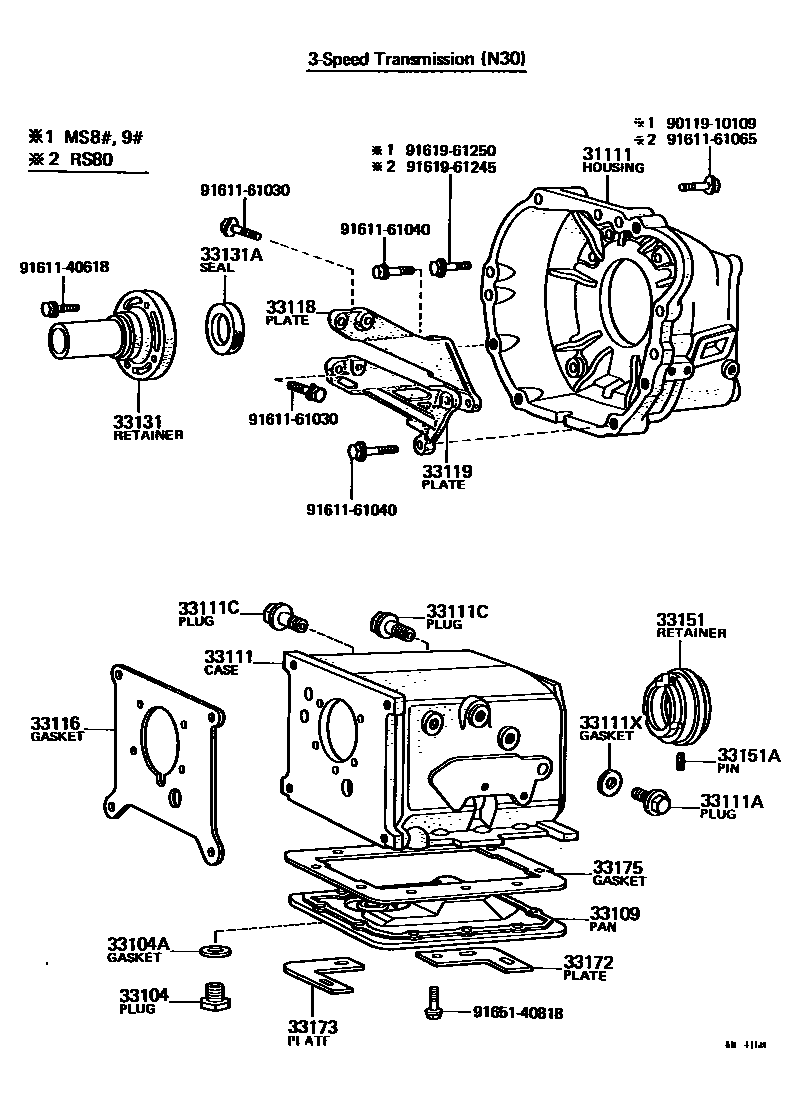

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33109PAN SUB-ASSY, TRANSMISSION OIL(MTM)
33111CASE, MANUAL TRANSMISSION
sub33101-20011
sub33101-30021
sub33101-30011
sub33101-30010
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
33111XGASKET, TRANSMISSION CASE PLUG
33116GASKET, MANUAL TRANSMISSION CASE
33118PLATE, STIFFENER, RH(MTM)
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)
33172PLATE, TRANSMISSION OIL PAN, NO.1
33173PLATE, TRANSMISSION OIL PAN, NO.2
33175GASKET, MANUAL TRANSMISSION OIL PAN
9011910109
main90119-10109
9161140618
main91611-40618
9161161030
main91611-61030
9161161040
main91611-61040
9161161065
main91611-61065
9161961245
main91619-61245
9161961250
main91619-61250
9165140818
main91651-40818
26 parts on this diagram · 4 diagrams in section
