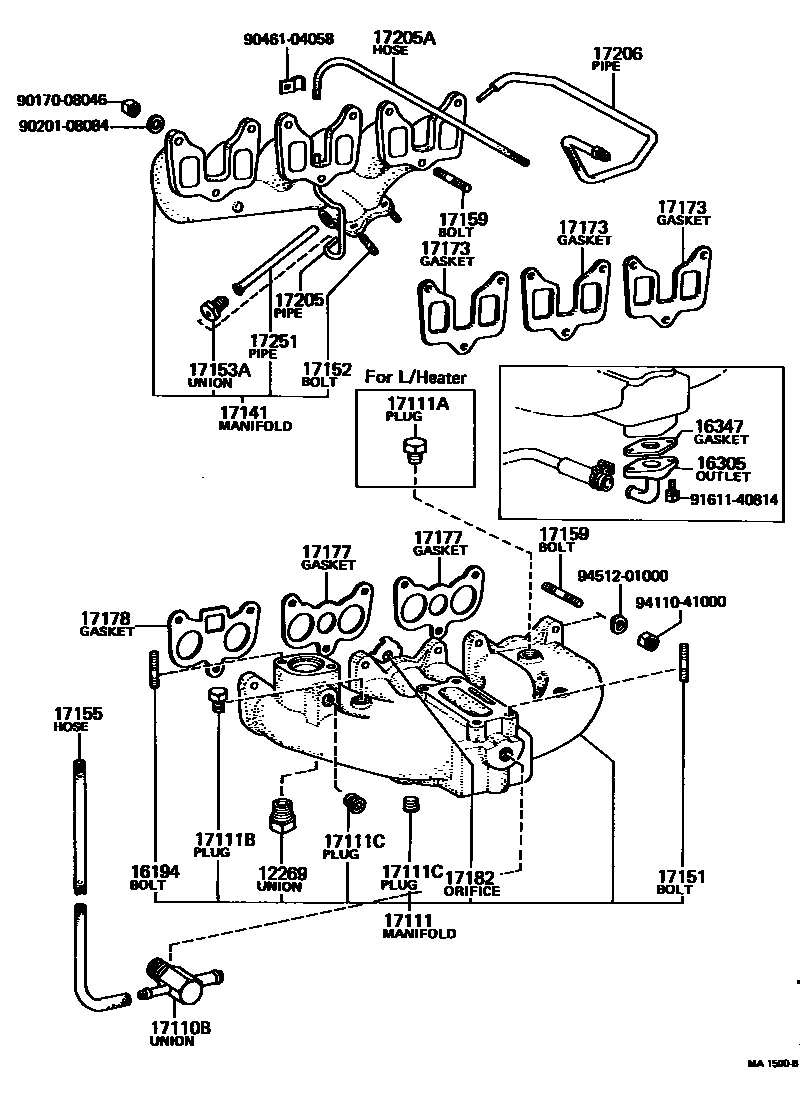

MANIFOLD
12269UNION
16194BOLT, STUD(FOR WATER OUTLET SETTING)
L=34,S=16&11
16305OUTLET SUB-ASSY, WATER BY-PASS
16347GASKET, WATER BY-PASS
17110MANIFOLD ASSY
17110BUNION(FOR VENTILATION HOSE TO MANIFOLD)
17111MANIFOLD, INTAKE
17111APLUG, NO.1
L/HEATER
17111BPLUG, NO.2
17141MANIFOLD, EXHAUST
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
L=41,S=10&20
L=42,S=11&17
L=38,S=10&16
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=36,S=15&15
L=41,S=14&20
L=37,S=20&14
L=37,S=20&13
17153SLEEVE, BALL(FOR AUTOMATIC CHOKE STOVE PIPE)
17153AUNION(FOR AUTOMATIC CHOKE STOVE PIPE)
17155HOSE(FOR MANIFOLD)
L/HOT AIR INTAKE
H,L=330
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE,L=44,S=12&18
EXHAUST,LOWER,L=43,S=15&15
EXHAUST,L=45,S=14.5&14.5
EXHAUST,L=49,S=15&21; EXHAUST,UPPER,L=49,S=15&21
EXHAUST,LOWER,L=53,S=15&29
EXHAUST,UPPEER,L=57,S=15&31
INTAKE,L=48,S=20&12.5
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17182ORIFICE, WATER
17205PIPE, AUTOMATIC CHOKE STOVE INLET
17205AHOSE(FOR AUTOMATIC CHOKE STOVE PIPE)
17206PIPE, AUTOMATIC CHOKE STOVE OUTLET
17251PIPE,AUTOMATIC CHOKE STOVE
9017008046
main90170-08046
9020108084
main90201-08084
9046104058
main90461-04058
9161140814
main91611-40814
9411041000
main94110-41000
9451201000
main94512-01000
31 parts on this diagram · 4 diagrams in section
