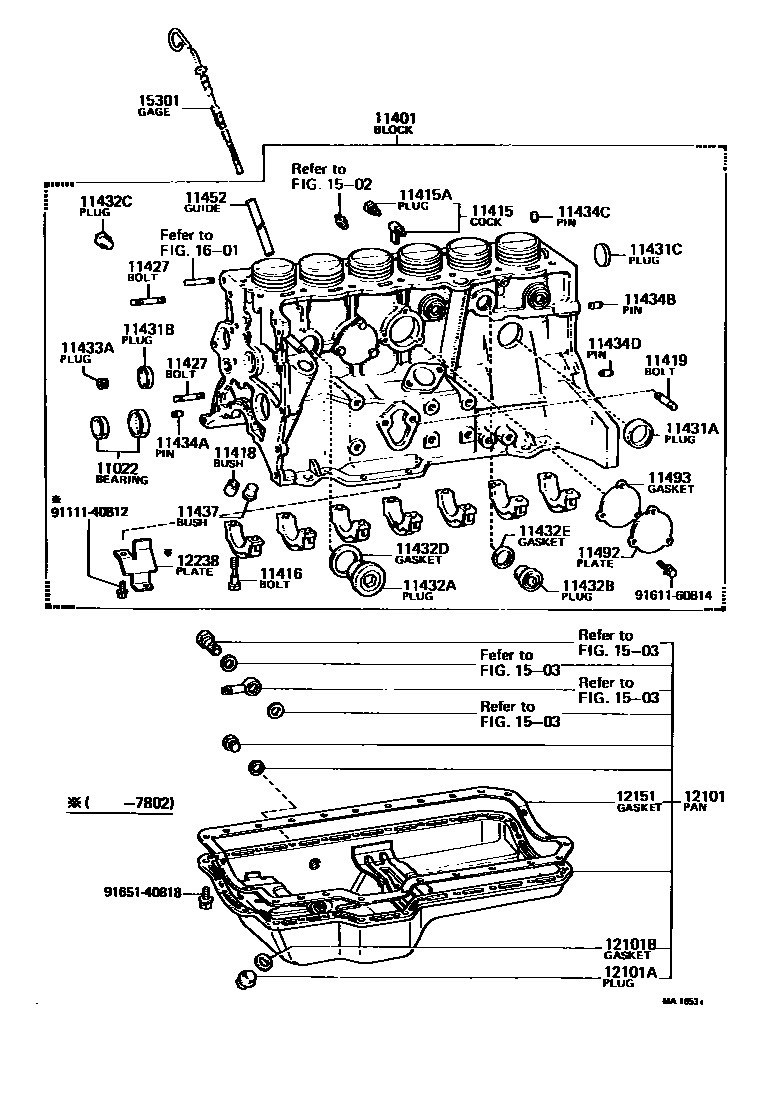

CYLINDER BLOCK
11022BEARING SET, PUMP DRIVE SHAFT
11401BLOCK SUB-ASSY, CYLINDER
sub11401-49076
sub11401-49226
sub11401-49127
sub11401-49128
sub11401-49177
sub11401-49178
sub11401-49265
sub11401-49227
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
sub96431-03833
sub96431-53828
sub96431-53828
sub96431-53873
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
12-1.25PX67-22
11418BUSH, SOLID(FOR DISTRIBUTOR)
11419BOLT, STUD(FOR FUEL PUMP)
L=43,S=12&12
L=39,S=25&9
11427BOLT, STUD(FOR TIMING CHAIN COVER SET)
L=65,S=12&12
L=80,S=12&26
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
OD=21
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
OD=50
OD=35
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
OD=27
11432BPLUG, W/HEAD TAPER SCREW, NO.2
11432CPLUG, W/HEAD TAPER SCREW, NO.3
11432DGASKET, W/HEAD TAPER SCREW PLUG
11432EGASKET, W/HEAD TAPER SCREW PLUG
sub90430-32002
11433APLUG, STRAIGHT, NO.1
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=22,OD=10,L=22,OD=10
L=11,OD=11,L=11,OD=11
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=20,OD=10,L=20,OD=10
L=22,OD=10,L=22,OD=10
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=22,OD=10,L=22,OD=10
L=11,OD=11,L=11,OD=11
11437BUSH, OIL PUMP SHAFT GUIDE
11452GUIDE, OIL LEVEL GAGE
11492PLATE, WATER SEAL
11493GASKET, WATER SEAL PLATE
12101APLUG(FOR OIL PAN DRAIN)
25-1.5PX12-9.5
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12238PLATE, VENTILATION BAFFLE
1502
1503
1601
9111140812
main91111-40812
9161160814
main91611-60814
9165140818
main91651-40818
37 parts on this diagram · 2 diagrams in section
