ENGINE OVERHAUL GASKET KIT

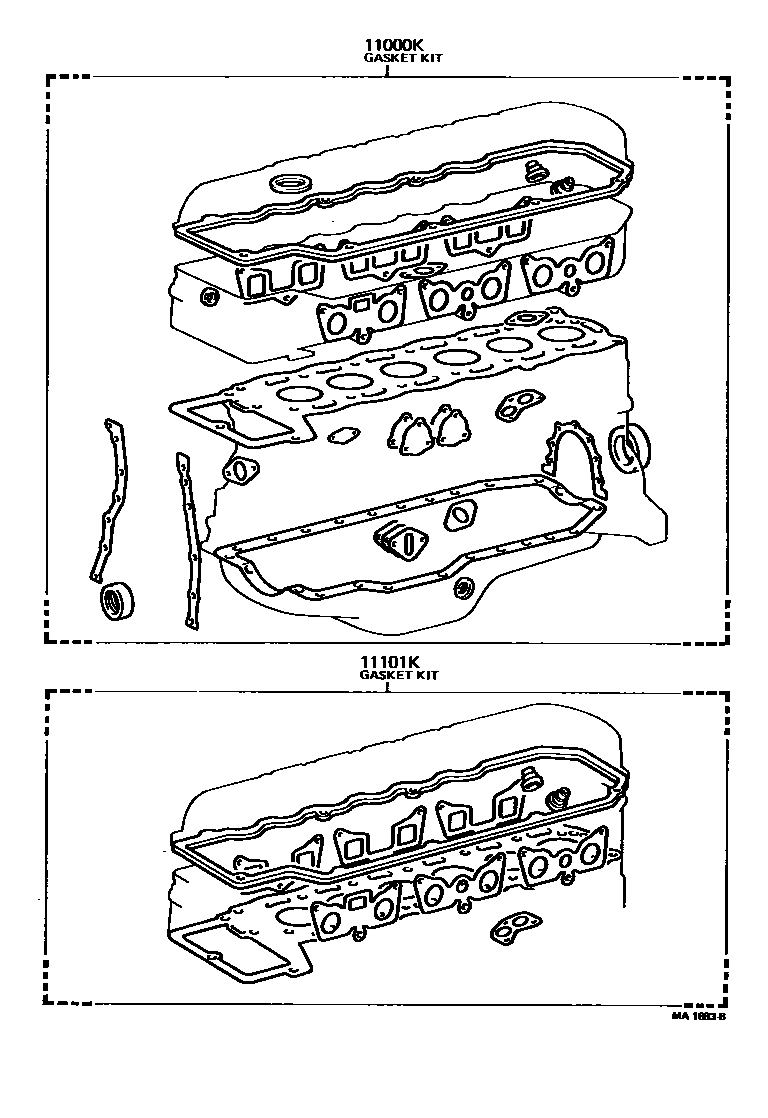

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-44031i197410-197512

main04111-44033i197512-197708

main04111-44034i197708-197805

main04111-44035i197805-197908

main04111-45011i197604-197611

main04111-45030i197604-197611

main04111-45031i197611-197707

main04111-45032i197707-197708

main04111-45033i197708-197802

main04111-45034i197802-197908

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-44020i197410-197512

main04112-44021i197512-197708

main04112-44022i197708-197805

main04112-44023i197805-197908

main04112-45011i197604-197611

main04112-45030i197604-197611

main04112-45031i197611-197708

main04112-45032i197708-197802

main04112-45033i197802-197908

2 parts on this diagram · 3 diagrams in section
