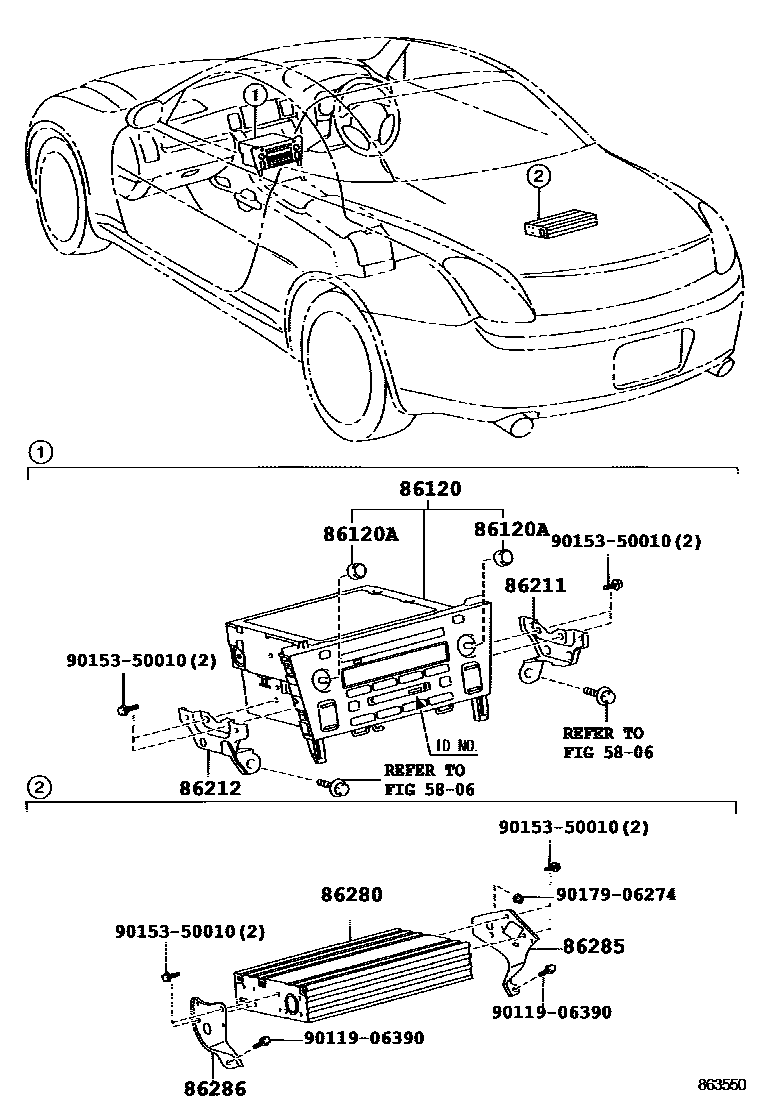

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

5806

86120RECEIVER ASSY, RADIO

main86120-24370iUZZ40..ARL,EUR200408-200508

PIONEER,ID=P3933

main86120-24392iUZZ40..LHD..EUR200708

PIONEER,ID=P6846

main86120-24400iUZZ40..5FC..(ARL,EUR)200105-200408

PIONEER,ID=P3904

main86120-24420iUZZ40..5FC..ARL200105-200408

PIONEER,ID=P3905

main86120-24430iUZZ40..5FC..GCC200205-200408

PIONEER,ID=P7816

main86120-24431iUZZ40..GCC200408-200508

PIONEER,ID=P7842

main86120-24450iUZZ40..LHD..EUR200612

PIONEER,ID=P7866

86120AKNOB, RADIO RECEIVER SWITCH

main90010-22025iUZZ40..ARL,EUR200105-200408

main90010-22026iUZZ40..ARL200105-200508

MARK LEVINSON

86211BRACKET, RADIO, NO.1

main86211-24080iUZZ40200105-200508

86212BRACKET, RADIO, NO.2

main86212-24080iUZZ40200105-200508

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W070iUZZ40..EUR,GCC200105-200508

MARK LEVINSON

main86280-0W070iUZZ40200508

main86280-24240iUZZ40..5FC..(ARL,EUR)200105-200408

86285BRACKET, AMPLIFIER, NO.1

main86285-24020iUZZ40200105-200508

86286BRACKET, AMPLIFIER, NO.2

main86286-24010iUZZ40..5FC..(ARL,EUR)200105-200408

main86286-24020iUZZ40..EUR,GCC200105-200508

MARK LEVINSON

main86286-24020iUZZ40200508

9011906390

main90119-06390

9015350010

main90153-50010

9017906274

main90179-06274

11 parts on this diagram · 2 diagrams in section
