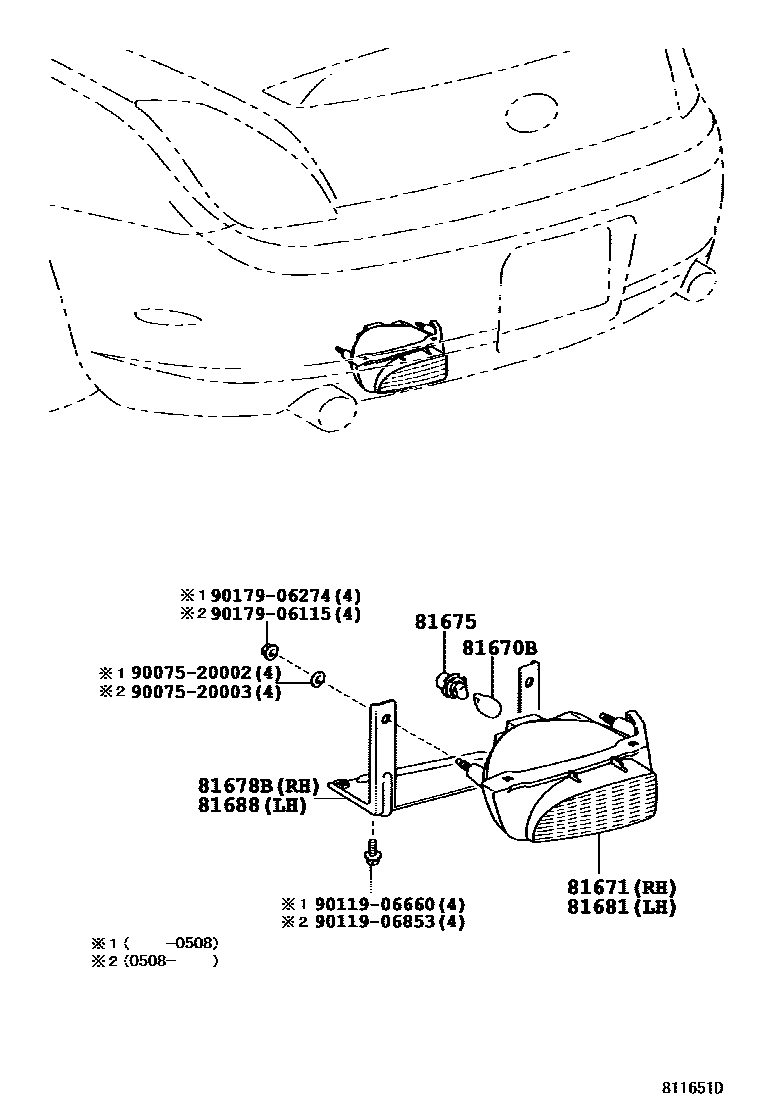

BACK UP LAMP

81670BBULB(FOR BACK-UP LAMP)

main90981-13043×2iUZZ40200105-200508

12V 21W

81671LENS, BACK-UP LAMP, RH

main81671-24030iUZZ40200105-200508

main81671-24040iUZZ40200508-200610

main81671-24041iUZZ40200611

81675SOCKET & WIRE, BACK-UP LAMP

main90075-99080×2iUZZ40200105-200508

81678BPROTECTOR, BACK UP LAMP, RH

main81678-24030iUZZ40200105-200508

81681LENS, BACK-UP LAMP, LH

main81681-24010iUZZ40200105-200508

main81681-24040iUZZ40200508-200610

main81681-24041iUZZ40200611

81688PROTECTOR, BACK UP LAMP, LH

main81688-24010iUZZ40200105-200508

9007520002

main90075-20002

9007520003

main90075-20003

9011906660

main90119-06660

9011906853

main90119-06853

9017906115

main90179-06115

9017906274

main90179-06274

12 parts on this diagram · 1 diagram in section
