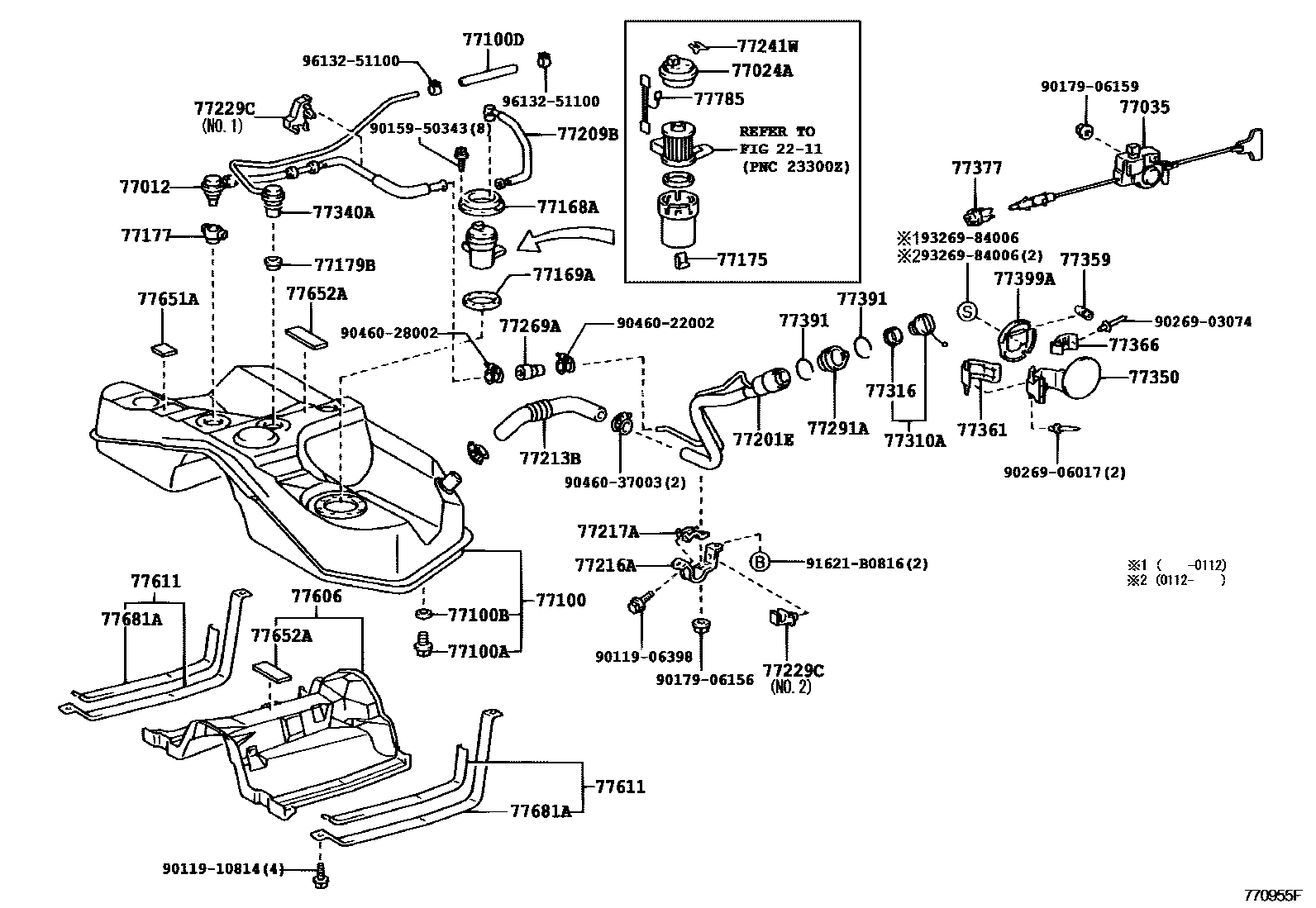

FUEL TANK & TUBE
2211
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77177GASKET, CHECK VALVE
77179BGASKET, FUEL TANK EVAPORATION VENT TUBE
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77229CCLAMP, BREATHER TUBE
NO.1
CHAINA SPEC,NO.1
NO.2
77241WCLIP, TUBE JOINT
77269AHOSE, FUEL TANK BREATHER
CHAINA SPEC
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77359CUSHION, FUEL INLET BOX COVER
77361BRACKET, FUEL FILLER OPENING LID HINGE
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611BAND, FUEL TANK
77651ACUSHION, FUEL TANK, NO.1
CHAINA SPEC
77652ACUSHION, FUEL TANK, NO.2
CHAINA SPEC
77681ASEAT, FUEL TANK BAND
77785HARNESS, FUEL PUMP
9011906398
main90119-06398
9011910814
main90119-10814
9015950343
main90159-50343
9017906156
main90179-06156
9017906159
main90179-06159
9026903074
main90269-03074
9026906017
main90269-06017
9046022002
main90460-22002
9046028002
main90460-28002
9046037003
main90460-37003
91621B0816
main91621-B0816
9326984006
main93269-84006
9613251100
main96132-51100
51 parts on this diagram · 2 diagrams in section
