INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

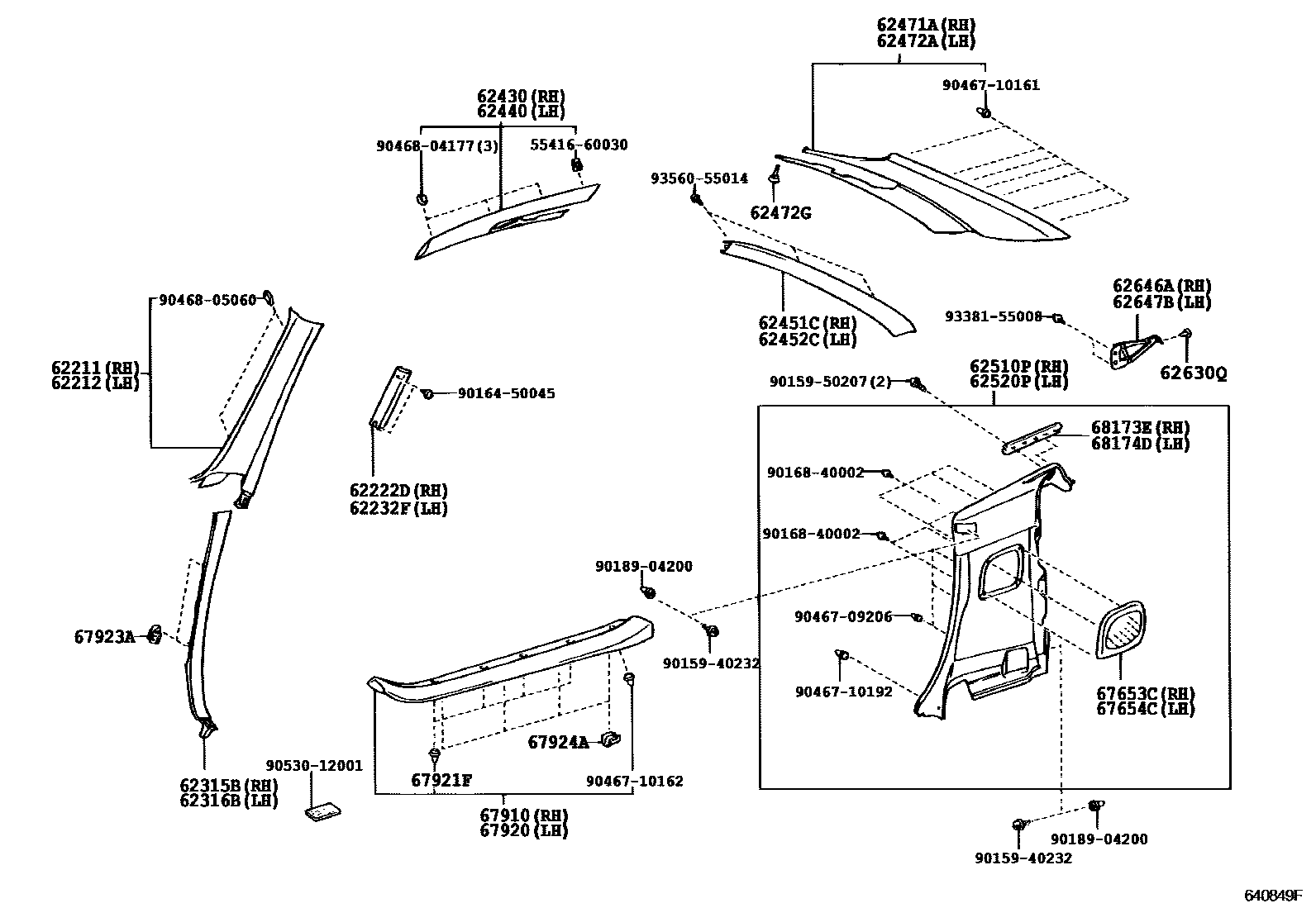

Parts diagram
62211GARNISH, FRONT PILLAR, RH
main62210-24040-A0i200508-200803
ECRU,TRIM0#,5#
sub62210-24060
main62210-24040-A0i200508-200803
ECRU,TRIM0#
sub62210-24060
main62210-24040-A0i200105-200508
ECRU,TRIM0#,20,21
sub62210-24060
main62210-24040-C0i200508-200803
BLACK,TRIM2#
sub62210-24060
main62210-24040-E0i200508-200803
DK. BROWN,TRIM4#
sub62210-24060
main62210-24041-A0i200611
BEIJING OR CHINA SPEC,ECRU,TRIM0#
sub62210-24042
main62210-24041-C0i200611
BEIJING OR CHINA SPEC,BLACK,TRIM2#
sub62210-24042
main62210-24041-E0i200611
BEIJING OR CHINA SPEC,DK. BROWN,TRIM4#
sub62210-24042
main62210-24060-A0i200803
ECRU,TRIM0#
main62210-24060-C0i200803
BLACK,TRIM2#
main62210-24060-E0i200803
DK. BROWN,TRIM4#
62212GARNISH, FRONT PILLAR, LH
main62220-24040-A0i200105-200508
ECRU,TRIM0#,20,21
sub62220-24060
main62220-24040-A0i200508-200803
ECRU,TRIM0#,5#
sub62220-24060
main62220-24040-A0i200508-200803
ECRU,TRIM0#
sub62220-24060
main62220-24040-C0i200508-200803
BLACK,TRIM2#
sub62220-24060
main62220-24040-E0i200508-200803
DK. BROWN,TRIM4#
sub62220-24060
main62220-24041-A0i200611
BEIJING OR CHINA SPEC,ECRU,TRIM0#
sub62220-24042
main62220-24041-C0i200611
BEIJING OR CHINA SPEC,BLACK,TRIM2#
sub62220-24042
main62220-24041-E0i200611
BEIJING OR CHINA SPEC,DK. BROWN,TRIM4#
sub62220-24042
main62220-24060-A0i200803
ECRU,TRIM0#
main62220-24060-C0i200803
BLACK,TRIM2#
main62220-24060-E0i200803
DK. BROWN,TRIM4#
62222DSPACER, FRONT PILLAR, NO.2 RH
main62222-24010i200105-200508
62232FSPACER, FRONT PILLAR, NO.2 LH
main62232-24010i200105-200508
62315BCOVER, FRONT DOOR OPENING TRIM, RH
main62315-24010-A0i200105-200508
ECRU,TRIM0#
sub62315-24010
main62315-24010-A1i200508
ECRU,TRIM0#
sub62315-24010
main62315-24010-C0i200105-200508
BLACK,TRIM20,21
sub62315-24010
main62315-24010-C1i200508
BLACK,TRIM2#
sub62315-24010
main62315-24010-E1i200508
CAMEL,TRIM4#
sub62315-24010
62316BCOVER, FRONT DOOR OPENING TRIM, LH
main62316-24010-A0i200105-200508
ECRU,TRIM0#
sub62316-24010
main62316-24010-A1i200508
ECRU,TRIM0#
sub62316-24010
main62316-24010-C0i200105-200508
BLACK,TRIM20,21
sub62316-24010
main62316-24010-C1i200508
BLACK,TRIM2#
sub62316-24010
main62316-24010-E1i200508
CAMEL,TRIM4#
sub62316-24010
62430GARNISH ASSY, ROOF SIDE RAIL, RH
main62430-24030-A0i200105-200508
ECRU,TRIM0#,20,21
main62430-24030-A0i200508
ECRU,TRIM0#,5#
main62430-24030-A0i200508
ECRU,TRIM0#
main62430-24030-C0i200508
BLACK,TRIM2#
main62430-24030-E0i200508
DK. BROWN,TRIM4#
main62430-24031-A0i200611
BEIJING OR CHINA SPEC,ECRU,TRIM0#
sub62430-24032
main62430-24031-C0i200611
BEIJING OR CHINA SPEC,BLACK,TRIM2#
sub62430-24032
main62430-24031-E0i200611
BEIJING OR CHINA SPEC,DK. BROWN,TRIM4#
sub62430-24032
62440GARNISH ASSY, ROOF SIDE RAIL, LH
main62440-24030-A0i200105-200508
ECRU,TRIM0#,20,21
main62440-24030-A0i200508
ECRU,TRIM0#,5#
main62440-24030-A0i200508
ECRU,TRIM0#
main62440-24030-C0i200508
BLACK,TRIM2#
main62440-24030-E0i200508
DK. BROWN,TRIM4#
main62440-24031-A0i200611
BEIJING OR CHINA SPEC,ECRU,TRIM0#
sub62440-24032
main62440-24031-C0i200611
BEIJING OR CHINA SPEC,BLACK,TRIM2#
sub62440-24032
main62440-24031-E0i200611
BEIJING OR CHINA SPEC,DK. BROWN,TRIM4#
sub62440-24032
62451CGARNISH, ROOF SIDE RAIL, REAR RH
main62450-24010-A0i200105-200508
ECRU,TRIM0#,20,21
main62450-24010-A0i200508
ECRU,TRIM0#,5#
main62450-24010-A0i200508
ECRU,TRIM0#
main62450-24010-C0i200508
BLACK,TRIM2#
main62450-24010-E0i200508
DK. BROWN,TRIM4#
main62450-24011-A0i200611
BEIJING OR CHINA SPEC,ECRU,TRIM0#
sub62450-24012
main62450-24011-C0i200611
BEIJING OR CHINA SPEC,BLACK,TRIM2#
sub62450-24012
main62450-24011-E0i200611
BEIJING OR CHINA SPEC,DK. BROWN,TRIM4#
sub62450-24012
62452CGARNISH, ROOF SIDE RAIL, REAR LH
main62460-24010-A0i200105-200508
ECRU,TRIM0#,20,21
main62460-24010-A0i200508
ECRU,TRIM0#,5#
main62460-24010-A0i200508
ECRU,TRIM0#
main62460-24010-C0i200508
BLACK,TRIM2#
main62460-24010-E0i200508
DK. BROWN,TRIM4#
main62460-24011-A0i200611
BEIJING OR CHINA SPEC,ECRU,TRIM0#
sub62460-24012
main62460-24011-C0i200611
BEIJING OR CHINA SPEC,BLACK,TRIM2#
sub62460-24012
main62460-24011-E0i200611
BEIJING OR CHINA SPEC,DK. BROWN,TRIM4#
sub62460-24012
62471AGARNISH, ROOF SIDE, INNER RH
main62470-24040-A0i200105-200508
ECRU,TRIM0#,20,21
main62470-24040-A0i200508
ECRU,TRIM0#,5#
main62470-24040-A0i200508
ECRU,TRIM0#
main62470-24040-C0i200508
BLACK,TRIM2#
main62470-24040-E0i200508
DK. BROWN,TRIM4#
main62470-24041-A0i200611
BEIJING OR CHINA SPEC,ECRU,TRIM0#
sub62470-24042
main62470-24041-C0i200611
BEIJING OR CHINA SPEC,BLACK,TRIM2#
sub62470-24042
main62470-24041-E0i200611
BEIJING OR CHINA SPEC,DK. BROWN,TRIM4#
sub62470-24042
62472AGARNISH, ROOF SIDE, INNER LH
main62480-24040-A0i200508
ECRU,TRIM0#
main62480-24040-A0i200105-200508
ECRU,TRIM0#,20,21
main62480-24040-A0i200508
ECRU,TRIM0#,5#
main62480-24040-C0i200508
BLACK,TRIM2#
main62480-24040-E0i200508
DK. BROWN,TRIM4#
main62480-24041-A0i200611
BEIJING OR CHINA SPEC,ECRU,TRIM0#
sub62480-24042
main62480-24041-C0i200611
BEIJING OR CHINA SPEC,BLACK,TRIM2#
sub62480-24042
main62480-24041-E0i200611
BEIJING OR CHINA SPEC,DK. BROWN,TRIM4#
sub62480-24042
62472GCLIP (FOR ROOF SIDE GARNISH)
main90467-05098-A0i200508
ECRU,TRIM0#
sub90467-05098
main90467-05098-A0i200508
ECRU,TRIM0#,5#
sub90467-05098
main90467-05098-A0i200105-200508
ECRU,TRIM0#,20,21
sub90467-05098
main90467-05098-C0i200508
BLACK,TRIM2#
sub90467-05098
main90467-05098-E1i200508
DK. BROWN,TRIM4#
sub90467-05098
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62510-24140-A0i200105-200301
ECRU,TRIM0#
sub62510-24141
main62510-24140-C0i200105-200301
BLACK,TRIM20,21
sub62510-24141
main62510-24141-A0i200301-200508
ECRU,TRIM0#
sub62510-24142
main62510-24141-C0i200301-200508
BLACK,TRIM20,21
sub62510-24142
main62510-24141-C0i200508
BLACK,TRIM2#
sub62510-24142
main62510-24141-E0i200508
DK.BROWN,TRIM4#
sub62510-24142
main62510-24141-F0i200508
BLACK,TRIM5#
sub62510-24142
main62510-24142-A0i200611
BEIJING OR CHINA SPEC,ECRU,TRIM0#
main62510-24142-C0i200611
BEIJING OR CHINA SPEC,BLACK,TRIM2#
main62510-24142-E0i200611
BEIJING OR CHINA SPEC,CAMEL,TRIM4#
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
main62520-24140-A0i200105-200301
ECRU,TRIM0#
sub62520-24141
main62520-24140-C0i200105-200301
BLACK,TRIM20,21
sub62520-24141
main62520-24141-A0i200301-200508
ECRU,TRIM0#
sub62520-24142
main62520-24141-C0i200508
BLACK,TRIM2#
sub62520-24142
main62520-24141-C0i200301-200508
BLACK,TRIM20,21
sub62520-24142
main62520-24141-E0i200508
DK.BROWN,TRIM4#
sub62520-24142
main62520-24141-F0i200508
BLACK,TRIM5#
sub62520-24142
main62520-24142-A0i200611
BEIJING OR CHINA SPEC,ECRU,TRIM0#
main62520-24142-C0i200611
BEIJING OR CHINA SPEC,BLACK,TRIM2#
main62520-24142-E0i200611
BEIJING OR CHINA SPEC,CAMEL,TRIM4#
62630QCLIP (FOR QUARTER TRIM)
main90467-06159-C0i200508
BLACK,TRIM0#,2#
sub90467-05121
main90467-06159-C0i200105-200508
BLACK,TRIM0#,20,21
sub90467-05121
main90467-06159-C0i200508
BLACK,TRIM0#,2#,5#
sub90467-05121
62646ABASE, QUARTER TRIM, REAR RH
main62646-24010i200105-200508
62647BBASE, QUARTER TRIM, REAR LH
main62647-24010i200105-200508
67653CGRILLE, SPEAKER REAR, RH
main67071-24010-A0i200105-200508
ECRU,TRIM0#
main67071-24010-C0i200508
BLACK,TRIM2#,5#
main67071-24010-C0i200105-200508
BLACK,TRIM20,21
main67071-24010-C0i200508
BLACK,TRIM2#
main67071-24010-E0i200508
CAMEL,TRIM4#
67654CGRILLE, SPEAKER REAR, LH
main67072-24010-A0i200105-200508
ECRU,TRIM0#
main67072-24010-C0i200508
BLACK,TRIM2#
main67072-24010-C0i200508
BLACK,TRIM2#,5#
main67072-24010-C0i200105-200508
BLACK,TRIM20,21
main67072-24010-E0i200508
CAMEL,TRIM4#
67910PLATE ASSY, DOOR SCUFF, RH
main67910-24020-A1i200105-200508
ECRU,TRIM0#
sub67910-24020
main67910-24020-C1i200105-200508
BLACK,TRIM20,21
sub67910-24020
main67910-24060-A0i200508-200708
ECRU,TRIM0#
sub67910-24061
main67910-24060-C0i200508-200708
BLACK,TRIM2#
sub67910-24061
main67910-24060-E0i200508-200708
CAMEL,TRIM4#
sub67910-24061
main67910-24061-A0i200611-200708
BEIJING OR CHINA SPEC,ECRU,TRIM0#
main67910-24061-C0i200611-200708
BEIJING OR CHINA SPEC,BLACK,TRIM2#
main67910-24061-E0i200611-200708
BEIJING OR CHINA SPEC,CAMEL,TRIM4#
main67910-24090-A0i200708
ECRU,TRIM0#
sub67910-24100
main67910-24090-C0i200708
BLACK,TRIM2#
sub67910-24100
main67910-24090-E0i200708
CAMEL,TRIM4#
sub67910-24100
main67910-24100-A0i200708
BEIJING OR CHINA SPEC,ECRU,TRIM0#
main67910-24100-C0i200708
BEIJING OR CHINA SPEC,BLACK,TRIM2#
main67910-24100-E0i200708
BEIJING OR CHINA SPEC,CAMEL,TRIM4#
67920PLATE ASSY, DOOR SCUFF, LH
main67920-24020-A1i200105-200508
ECRU,TRIM0#
sub67920-24020
main67920-24020-C1i200105-200508
BLACK,TRIM20,21
sub67920-24020
main67920-24070-A0i200508-200708
ECRU,TRIM0#
sub67920-24071
main67920-24070-C0i200508-200708
BLACK,TRIM2#
sub67920-24071
main67920-24070-E0i200508-200708
CAMEL,TRIM4#
sub67920-24071
main67920-24071-A0i200611-200708
BEIJING OR CHINA SPEC,ECRU,TRIM0#
main67920-24071-C0i200611-200708
BEIJING OR CHINA SPEC,BLACK,TRIM2#
main67920-24071-E0i200611-200708
BEIJING OR CHINA SPEC,CAMEL,TRIM4#
main67920-24090-A0i200708
ECRU,TRIM0#
sub67920-24100
main67920-24090-C0i200708
BLACK,TRIM2#
sub67920-24100
main67920-24090-E0i200708
CAMEL,TRIM4#
sub67920-24100
main67920-24100-A0i200708
BEIJING OR CHINA SPEC,ECRU,TRIM0#
main67920-24100-C0i200708
BEIJING OR CHINA SPEC,BLACK,TRIM2#
main67920-24100-E0i200708
BEIJING OR CHINA SPEC,CAMEL,TRIM4#
67921FRETAINER, FRONT DOOR SCUFF PLATE
main67921-18010i200105-200508
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main67923-24020i200105-200508
67924ACLAMP, DOOR SCUFF PLATE, NO.2
main67924-24020i200105-200508
68173EWEATHERSTRIP, QUARTER TRIM PANEL, INNER RH
main68173-24010i200105-200301
sub68173-24011
main68173-24011i200301-200307
sub68173-24012
main68173-24012i200307-200508
68174DWEATHERSTRIP, QUARTER TRIM PANEL, INNER LH
main68174-24010i200105-200301
sub68174-24011
main68174-24011i200301-200307
sub68174-24012
main68174-24012i200307-200508
5541660030STOPPER,LIGHT CONTROL SWITCH
main55416-60030
9015940232
main90159-40232
9015950207
main90159-50207
9016450045
main90164-50045
9016840002
main90168-40002
9018904200
main90189-04200
9046709206
main90467-09206
9046710161
main90467-10161
9046710162
main90467-10162
9046710192
main90467-10192
9046804177
main90468-04177
9046805060
main90468-05060
9053012001
main90530-12001
9338155008
main93381-55008
9356055014
main93560-55014

42 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
