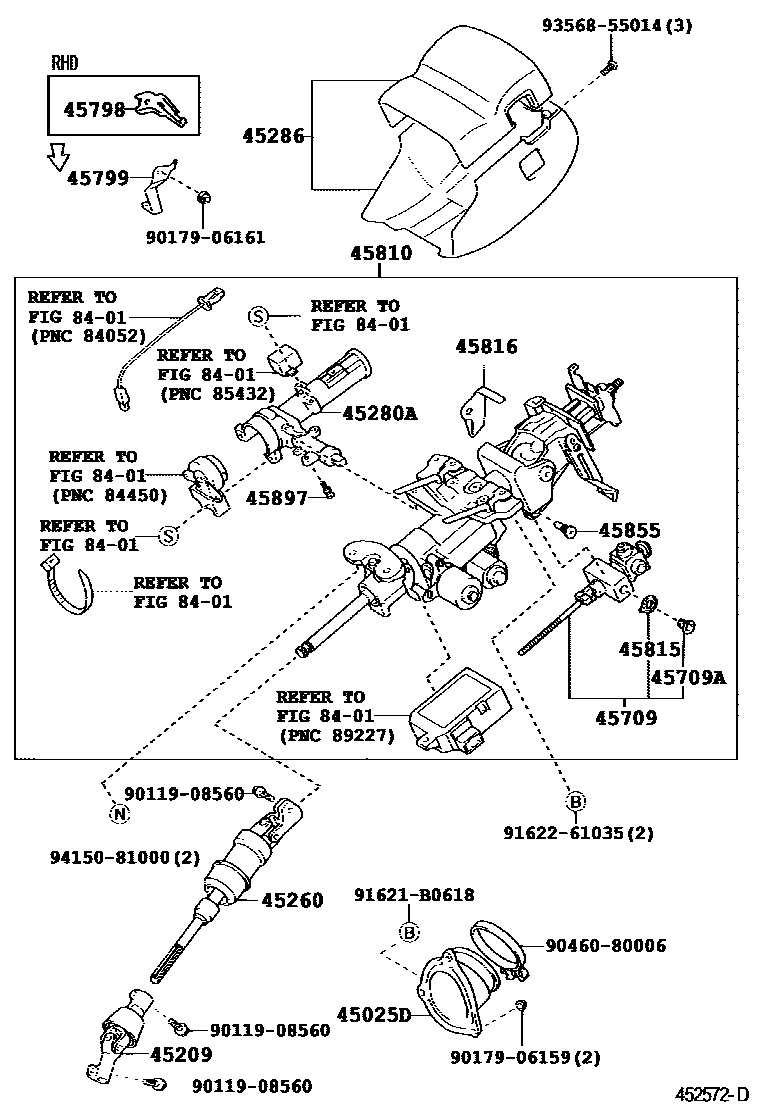

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30300iUZZ40..RHD200105-200508

main45025-30310iUZZ40..LHD200105-200508

45209YOKE SUB-ASSY, STEERING SLIDING

main45206-30050iUZZ40..RHD200105-200508

main45206-30060iUZZ40..LHD..5FC200105-200303

main45206-30090iUZZ40..LHD200303-200508

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30080iUZZ40..5FC200105-200508

main45260-30150iUZZ40..LHD200303-200508

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-30680iUZZ40200105-200508

45286COVER, STEERING COLUMN

main45286-24907-C0iUZZ40200105-200508

BLACK,TRIM0#,20,21

main45286-24907-C0iUZZ40200508-200608

BLACK,TRIM0#,2#

main45286-24907-E1iUZZ40200508-200608

DK.BROWN,TRIM4#

main45286-24909-C0iUZZ40200608-201007

BLACK,TRIM0#,2#

main45286-24909-E1iUZZ40200608-201007

DK.BROWN,TRIM4#

45709SLIDER SUB-ASSY, TILT STEERING

main45709-30030iUZZ40200105-200508

45709ABUSH(FOR TILT STEERING SLIDER)

main90389-08133iUZZ40200105-200508

45798CLAMP, STEERING INTERMEDIATE SHAFT, RH

main45798-30020iUZZ40..RHD200105-200508

45799CLAMP, STEERING INTERMEDIATE SHAFT, LH

main45799-30010iUZZ40..LHD200105-200508

45810GEAR ASSY, TILT STEERING, W/MOTOR

main45810-24030iUZZ40200105-200508

45815SHIM, TILT STEERING SUPPORT

main45815-30020iUZZ40200105-200508

T=0.7

45816BRACKET, WIRE HARNESS

main45816-24010iUZZ40200105-200508

45855BOLT, TILT STEERING, NO.1

main45855-30010iUZZ40200105-200508

OD=8

45897BOLT, STEERING LOCK SET

main45897-12020iUZZ40200105-200508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9017906159

main90179-06159

9017906161

main90179-06161

9046080006

main90460-80006

91621B0618

main91621-B0618

9162261035

main91622-61035

9356855014

main93568-55014

9415081000

main94150-81000

23 parts on this diagram · 1 diagram in section
