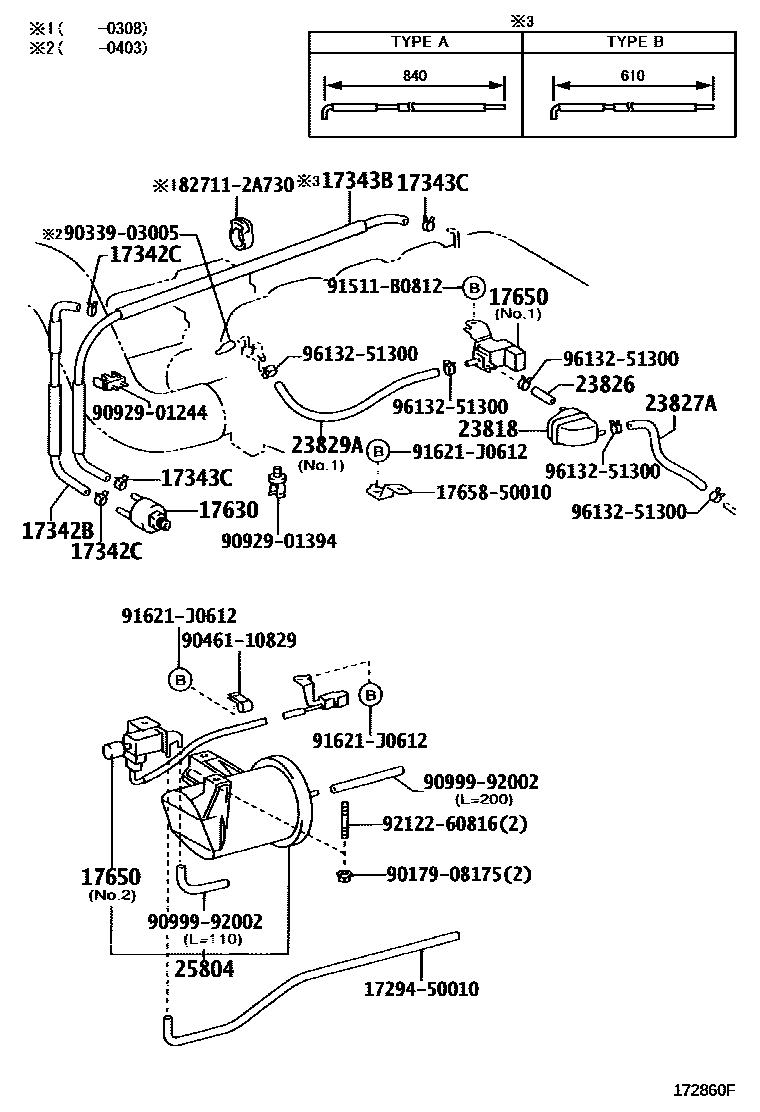

VACUUM PIPING
17342BHOSE, NO.2(FOR IDLE-UP)
17343BHOSE, NO.3(FOR IDLE-UP)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
17630VALVE ASSY, AIR CONTROL
17650VALVE ASSY, VACUUM SWITCHING
NO.1
NO.2
23818PIPE, FUEL VAPOR FEED
23826HOSE, FUEL VAPOR FEED, NO.1
23827AHOSE, FUEL VAPOR FEED, NO.2
23829AHOSE, FUEL VAPOR FEED
NO.1
NO.2
25804VALVE SET, VACUUM CONTROL
1729450010HOSE, ACTUATOR
main17294-50010
1765850010BRACKET, VACUUM HOSE CLAMP
main17658-50010
827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2A730
9017908175
main90179-08175
9033903005
main90339-03005
9046110829
main90461-10829
9092901244
main90929-01244
9092901394
main90929-01394
9099992002
main90999-92002
91511B0812
main91511-B0812
91621J0612
main91621-J0612
9212260816
main92122-60816
9613251300
main96132-51300
24 parts on this diagram · 2 diagrams in section
