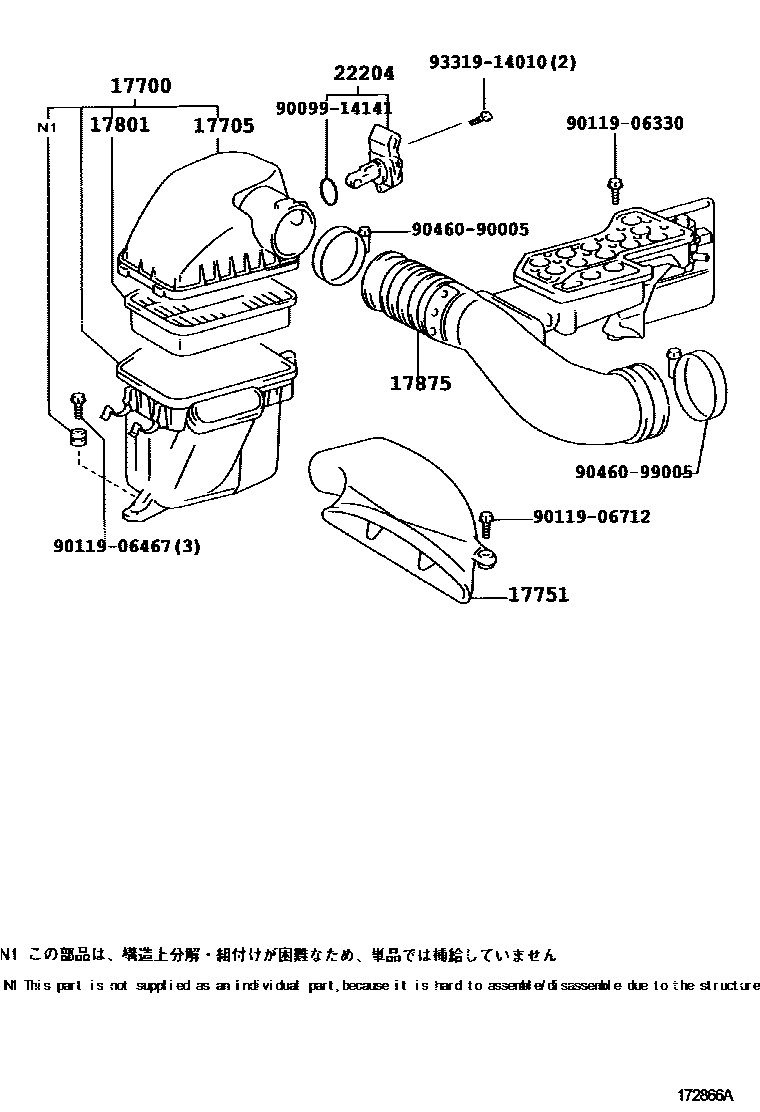

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-50240i3UZFE..UZZ40200105-200205

sub17700-50241

main17700-50241i3UZFE..UZZ40200205-200508

17705CAP SUB-ASSY, AIR CLEANER

main17705-50150i3UZFE..UZZ40200105-200205

sub17705-50151

main17705-50151i3UZFE..UZZ40200205-200508

17751INLET, AIR CLEANER, NO.1

main17751-50090i3UZFE..UZZ40200105-200508

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-50060i3UZFE..UZZ40200105-201007

17875PIPE, INTAKE AIR CONNECTOR

main17875-50260i3UZFE..UZZ40200105-200508

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-15010i3UZFE..UZZ40200105-200508

9009914141

main90099-14141

9011906330

main90119-06330

9011906467

main90119-06467

9011906712

main90119-06712

9046090005

main90460-90005

9046099005

main90460-99005

9331914010

main93319-14010

13 parts on this diagram · 1 diagram in section
