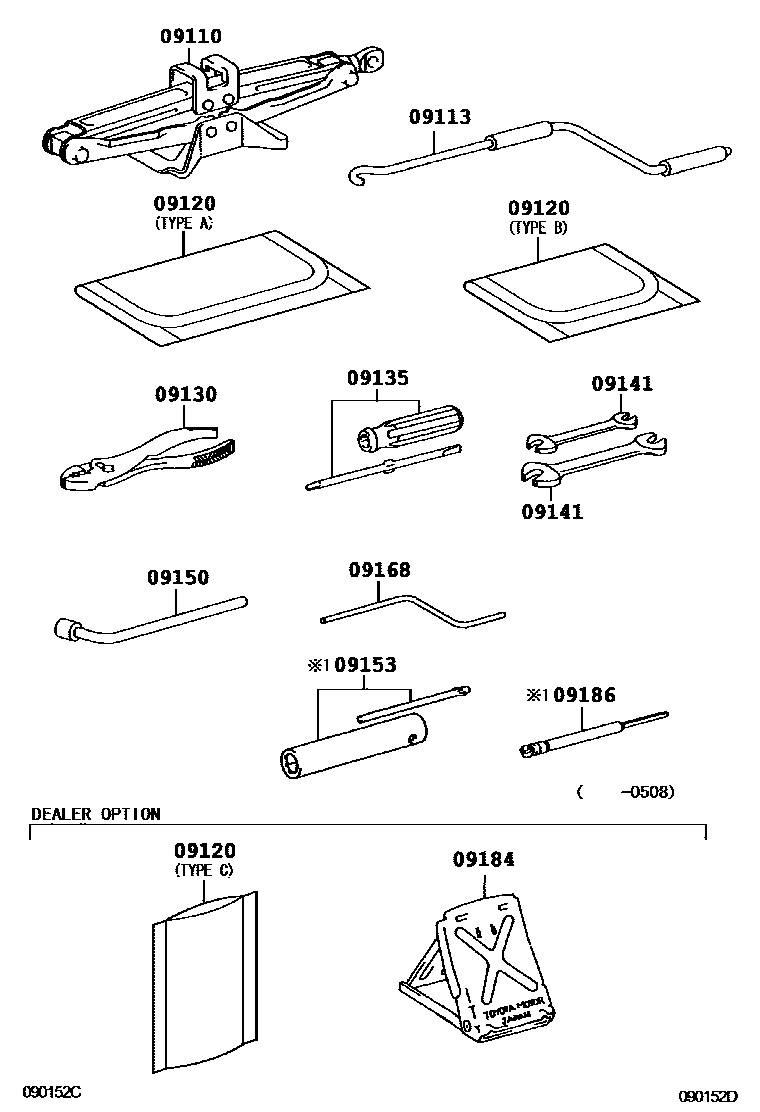

STANDARD TOOL

09110JACK ASSY

main09110-30070iUZZ40..ARL200508-200708

sub09110-30071

main09110-30071iUZZ40..ARL200709

sub09110-53020

main09111-24071iUZZ40..ARL200105-200412

main09111-30140iUZZ40..ARL200501-200507

sub09111-30150

main09111-50050iUZZ40..EUR200105-200112

sub09111-50051

main09111-50051iUZZ40..EUR,GCC200112-200508

sub09111-76011

main09111-50070iUZZ40..LHD..EUR200508

BEIJING OR CHINA SPEC

09113HANDLE, JACK

main09113-14030iUZZ40200105-200508

09120BAG, TOOL

main09120-24010iUZZ40..EUR200105-200508

TYPE A:REFER TO ILLUSTRATION

main09120-24020iUZZ40200105-200508

TYPE B:REFER TO ILLUSTRATION

main09120-28040iUZZ40200105-200508

TYPE C:REFER TO ILLUSTRATION

09130PLIERS

main09130-50030iUZZ40200105-200908

main09130-50040iUZZ40200908

09135DRIVER, SCREW

main09135-50040iUZZ40200105-200908

main99915-10700iUZZ40200908

09141SPANNER

main09141-50050iUZZ40200105-200908

8 X 10

main09141-50060iUZZ40200105-200908

12 X 14

main09141-60010iUZZ40200908

8 X 10

main09141-60020iUZZ40200908

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50010iUZZ40200105-200907

sub09150-53010

main09150-53010iUZZ40200908

sub09150-76020

09153WRENCH, REAR COMBINATION LAMP

main09153-74030iUZZ40..EUR200105-200508

09168WRENCH, ROOF PANEL

main09168-24010iUZZ40200105-200508

09184STOPPER, WHEEL

main09184-00010iUZZ40200105-200508

09186GAGE, TIRE

main09186-00010iUZZ40..EUR200105-200508

11 parts on this diagram · 1 diagram in section
