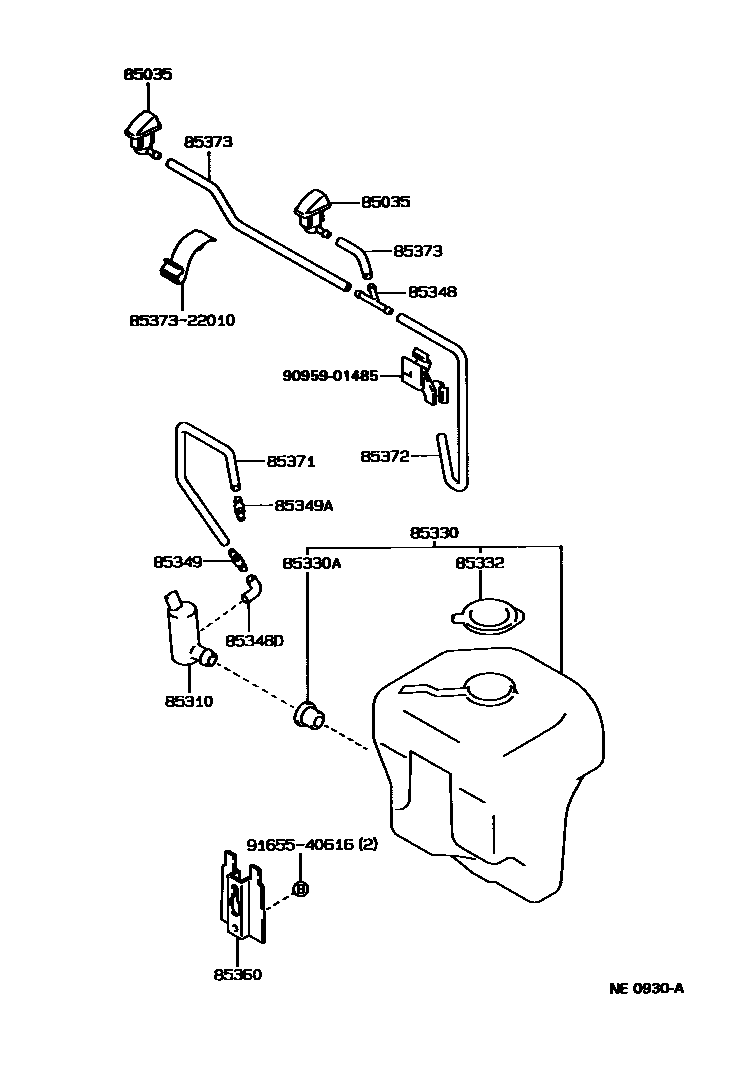

WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85035-22270-01iGX81,MX83,RX80..RHD198808-198810

BLACK,202 ,4K2

sub85035-22271

main85035-22270-02iGX81,MX83,RX80..RHD198808-198810

RED MICA,3H4

sub85035-22271

main85035-22270-03iGX81,MX83,RX80..RHD198808-198810

SUPER SILVER 3 M.,176

sub85035-22271

main85035-22270-04iGX81,MX83,RX80..RHD198808-198810

LIGHT BLUE M. M.,8G2

sub85035-22271

main85035-22270-13iGX81,MX83,RX80..RHD198808-198810

GRAY M. M.,170

sub85035-22271

main85035-22270-18iGX81,MX83,RX80..RHD198808-198810

SUPER WHITE 4,050

sub85035-22271

main85035-22271-01iGX81,MX83,RX80..RHD198908-199008

BLACK,202 ,4L4

sub85381-30020

sub85035-30150

sub85035-91601

sub85035-30130

sub85035-22250

sub85381-30010

main85035-22271-01iGX81,MX83,RX80..RHD199008-199302

BLACK,869

sub85381-30020

sub85035-30150

sub85035-91601

sub85035-30130

sub85035-22250

sub85381-30010

main85035-22271-01iGX81,MX83,RX80..RHD198810-198908

BLACK,202 ,4K2

sub85381-30020

sub85035-30150

sub85035-91601

sub85035-30130

sub85035-22250

sub85381-30010

main85035-22271-02iGX81,MX83,RX80..RHD198810-199008

RED MICA,3H4

sub85381-30020

sub85035-30150

sub85035-91601

sub85035-30130

sub85035-22250

sub85381-30010

main85035-22271-03iGX81,MX83,RX80..RHD198810-199302

SUPER SILVER 3 M.,176

sub85381-30020

sub85035-30150

sub85035-91601

sub85035-30130

sub85035-22250

sub85381-30010

main85035-22271-04iGX81,MX83..4FC198810-199302

LIGHT BLUE M. M.,8G2

sub85381-30020

sub85035-30150

sub85035-91601

sub85035-30130

sub85035-22250

sub85381-30010

main85035-22271-05iGX81,MX83,RX80..RHD199008-199302

BEIGE M,4J1

sub85381-30020

sub85035-30150

sub85035-91601

sub85035-30130

sub85035-22250

sub85381-30010

main85035-22271-12iGX81,MX83,RX80..RHD199008-199302

RED M.M,3J9

sub85381-30020

sub85035-30150

sub85035-91601

sub85035-30130

sub85035-22250

sub85381-30010

main85035-22271-13iGX81,MX83,RX80..RHD198810-199008

GRAY M. M.,170

sub85381-30020

sub85035-30150

sub85035-91601

sub85035-30130

sub85035-22250

sub85381-30010

main85035-22271-18iGX81,MX83,RX80..RHD198810-199008

SUPER WHITE 4,050

sub85381-30020

sub85035-30150

sub85035-91601

sub85035-30130

sub85035-22250

sub85381-30010

main85035-22271-18iGX81,MX83,RX80..RHD199008-199302

SUPER WHITE 4

sub85381-30020

sub85035-30150

sub85035-91601

sub85035-30130

sub85035-22250

sub85381-30010

main85035-22290-01iGX81,LX80,MX81,RX8#..LHD198808-198810

BLACK,202 ,4K2

sub85035-22291

main85035-22290-02iGX81,LX80,MX81,RX8#..LHD198808-198810

RED MICA,3H4

sub85035-22291

main85035-22290-03iGX81,LX80,MX81,RX8#..LHD198808-198810

SUPER SILVER 3 M.,176

sub85035-22291

main85035-22290-04iGX81,LX80,MX81,RX8#..LHD198808-198810

LIGHT BLUE M. M.,8G2

sub85035-22291

main85035-22290-13iGX81,LX80,MX81,RX8#..LHD198808-198810

GRAY M. M.,170

sub85035-22291

main85035-22290-18iGX81,LX80,MX81,RX8#..LHD198808-198810

SUPER WHITE 4,050

sub85035-22291

main85035-22291iRX81199306-199608

sub85381-20110

main85035-22291-01iGX81,LX80,MX81,RX8#..LHD198908-199008

BLACK,202 ,4L4

sub85381-20110

main85035-22291-01iGX81,LX80,MX81,RX8#..LHD198810-198908

BLACK,202 ,4K2

sub85381-20110

main85035-22291-01iGX81,LX80,MX81,RX8#..LHD199008-199302

BLACK,869

sub85381-20110

main85035-22291-02iGX81,LX80,MX81,RX8#..LHD198810-199008

RED MICA,3H4

sub85381-20110

main85035-22291-03iGX81,LX80,MX81,RX8#..LHD198810-199302

SUPER SILVER 3 M.,176

sub85381-20110

main85035-22291-04iGX81,MX81,RX81..LHD198810-199302

LIGHT BLUE M. M.,8G2

sub85381-20110

main85035-22291-05iMX81..GD;GX81,LX80,RX80..LHD199008-199302

BEIGE M,4J1

sub85381-20110

main85035-22291-12iGX81,LX80,MX81,RX8#..LHD199008-199608

RED M.M,3J9

sub85381-20110

main85035-22291-13iGX81,LX80,MX81,RX8#..LHD198810-199008

GRAY M. M.,170

sub85381-20110

main85035-22291-18iGX81,LX80,MX81,RX8#..LHD198810-199302

SUPER WHITE 4,050

sub85381-20110

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iGX81,LX80,MX8#,RX8#198808-199608

85330JAR ASSY, WINDSHIELD WASHER

main85315-22230iRX81199309-199608

main85331-22440iGX81,MX83,RX80..RHD198808-199302

main85331-22460iGX81,LX80,MX81,RX8#..LHD198808-199309

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGX81,LX80,MX8#,RX8#198808-199608

85332CAP, WINDSHIELD WASHER JAR

main85316-34050iRX81199402-199608

main85332-22470iGX81,LX80,MX8#,RX8#198808-199402

sub85316-34050

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iGX81,LX80,MX8#,RX8#198808-199608

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iRX81198808-199608

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iRX81199309-199608

main85349-89122iGX81,MX83,RX80..RHD198808-199302

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85334-22470iRX81199309-199608

main85349-89122iGX81,LX80,MX8#,RX8#198808-199309

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-22440iGX81,LX80,MX8#,RX8#198808-199608

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075iRX81199309-199608

L=1100

main90446-07001iGX81,MX83,RX80..RHD198808-199309

L=1800

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iGX81,MX83,RX80..RHD199007-199302

L=1450

main90099-33299iGX81,LX80,MX8#,RX8#198808-199007

L=1000

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iGX81,LX80,MX8#,RX8#199007-199302

L=1450,RH

main90099-33087iGX81,LX80,MX8#,RX8#198808-199302

L=1450(*H,L=40),LH

sub90099-33080

main90099-33094iGX81,LX80,MX8#,RX8#198808-199007

L=1450(*H,L=580),RH

sub90099-33080

8537322010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-22010

9095901485

main90959-01485

9165540616

main91655-40616

16 parts on this diagram · 2 diagrams in section
