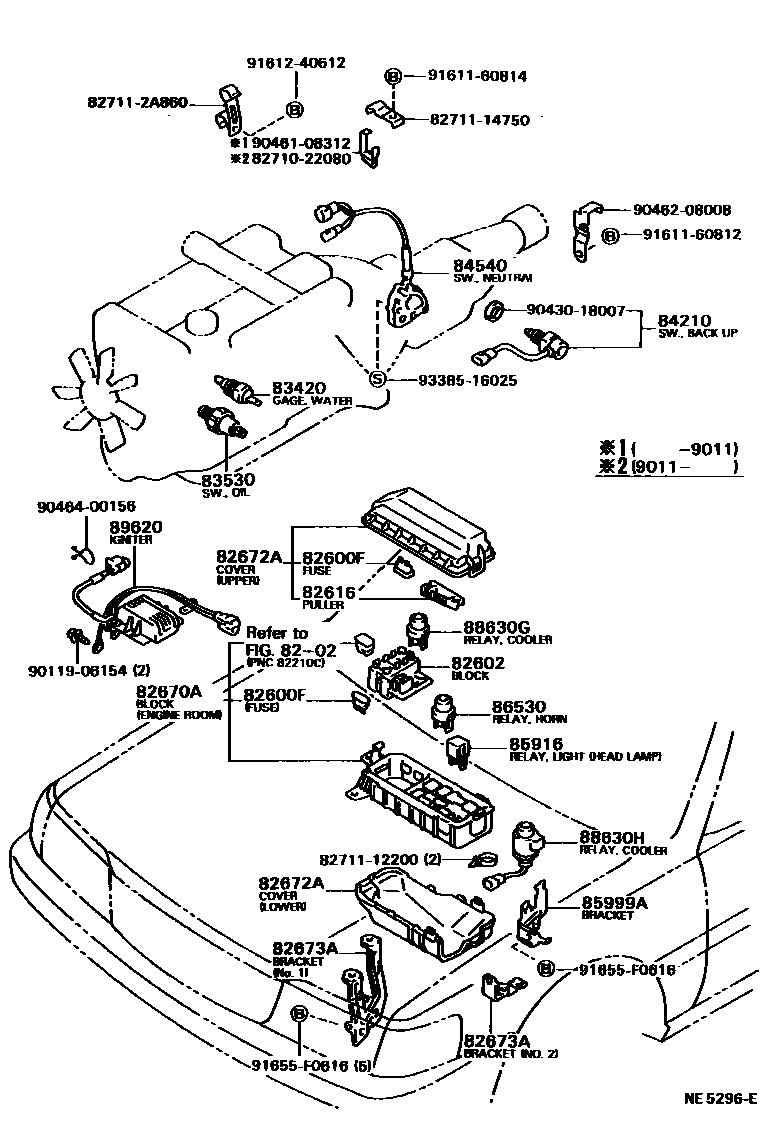

SWITCH & RELAY & COMPUTER
8202
82600FFUSE, FUSE BLOCK
10A,COWL SIDE
15A,E/G ROOM J/B
15A,COWL SIDE
20A,YELLOW,COWL SIDE
20A,YELLOW,E/G ROOM J/B
7.5A,COWL SIDE
7.5A,E/G ROOM J/B
82602BLOCK SUB-ASSY, RELAY
82616PULLER, FUSE
82670ABLOCK ASSY, JUNCTION, NO.1
ENGINE ROOM
ENGINE ROOM
ENGINE ROOM
ENGINE ROOM
NO.1
NO.1
NO.3
NO.3
82672ACOVER, JUNCTION BLOCK
LOWER
UPPER
LOWER
UPPER
82673ABRACKET, JUNCTION BLOCK, NO.1
NO.1
NO.1
NO.2
NO.2
NO.2
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
sub83530-28030
sub83530-28010
sub83530-30051
sub83530-60050
sub83530-60030
84210SWITCH ASSY, BACK-UP LAMP
84540SWITCH ASSY, NEUTRAL START
sub84540-14131
sub84540-22171
sub84540-22181
sub84540-30241
TOKAIRIKA
MATSUSHITA
85916RELAY, LIGHT CONTROL
*ND,TAIL LAMP
HEADLAMP
86530RELAY ASSY, HORN
NIPPONDENSO
88630GRELAY ASSY, COOLER
88630HRELAY ASSY, COOLER
W(MANUAL AIR CONDITIONER)
8271022080HARNESS ASSY, OIL HEATER
main82710-22080
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14750
827112A860WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2A860
9011906154
main90119-06154
9043018007
main90430-18007
9046108312
main90461-08312
9046208008
main90462-08008
9046400156
main90464-00156
9161160812
main91611-60812
9161160814
main91611-60814
9161240612
main91612-40612
91655F0616
main91655-F0616
9338516025
main93385-16025
31 parts on this diagram · 12 diagrams in section
