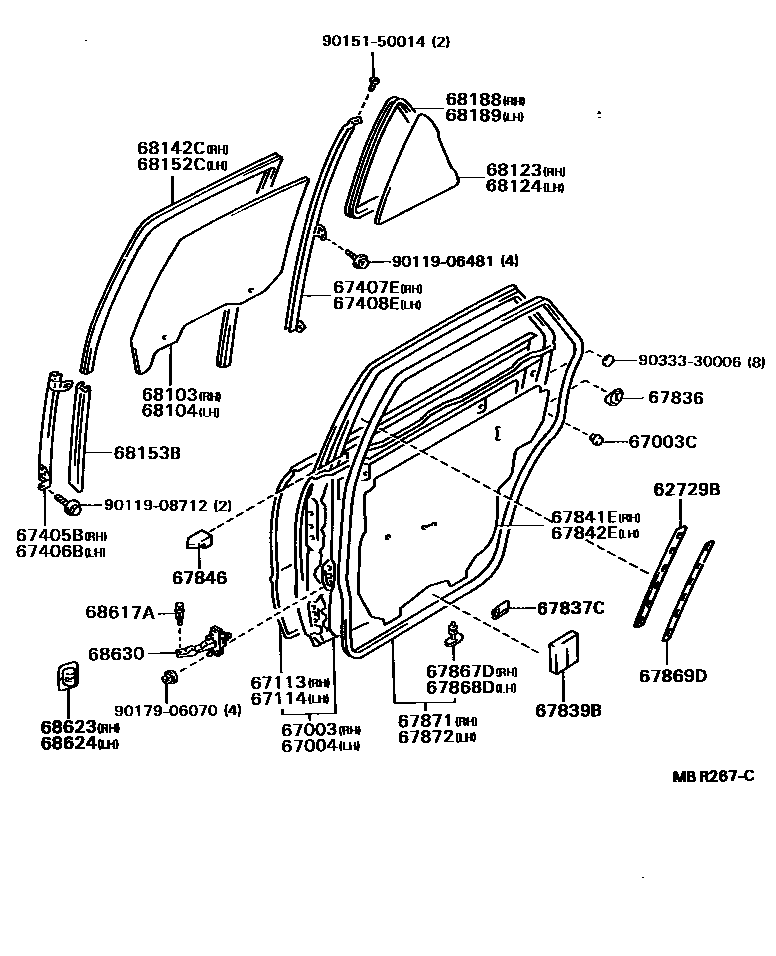

REAR DOOR PANEL & GLASS
62729BPAD, WINDOW CENTER SASH
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67837CSEAL, REAR DOOR DUST PROOF
67839BCOVER, REAR DOOR SERVICE HOLE, LOWER
67846SEAL, REAR DOOR SERVICE HOLE
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869DCLIP, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
TAXI PACKAGE FOR CHINA
67872WEATHERSTRIP, REAR DOOR, LH
TAXI PACKAGE FOR CHINA
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=3.5
*TEM,T=3.5,BRONZE
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=3.5
*TEM,T=3.5,BRONZE
68123GLASS, REAR DOOR WINDOW, RH
*TEM,T=3.1
*TEM,T=3.1,BRONZE
68124GLASS, REAR DOOR WINDOW, LH
*TEM,T=3.1
*TEM,T=3.1,BRONZE
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68153BRUN, REAR DOOR WINDOW, LOWER
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68617APIN, REAR DOOR CHECK
68623COVER, DOOR CHECK, RH
68624COVER, DOOR CHECK, LH
68630CHECK ASSY, REAR DOOR
9011906481
main90119-06481
9011908712
main90119-08712
9015150014
main90151-50014
9017906070
main90179-06070
9033330006
main90333-30006
39 parts on this diagram · 2 diagrams in section
