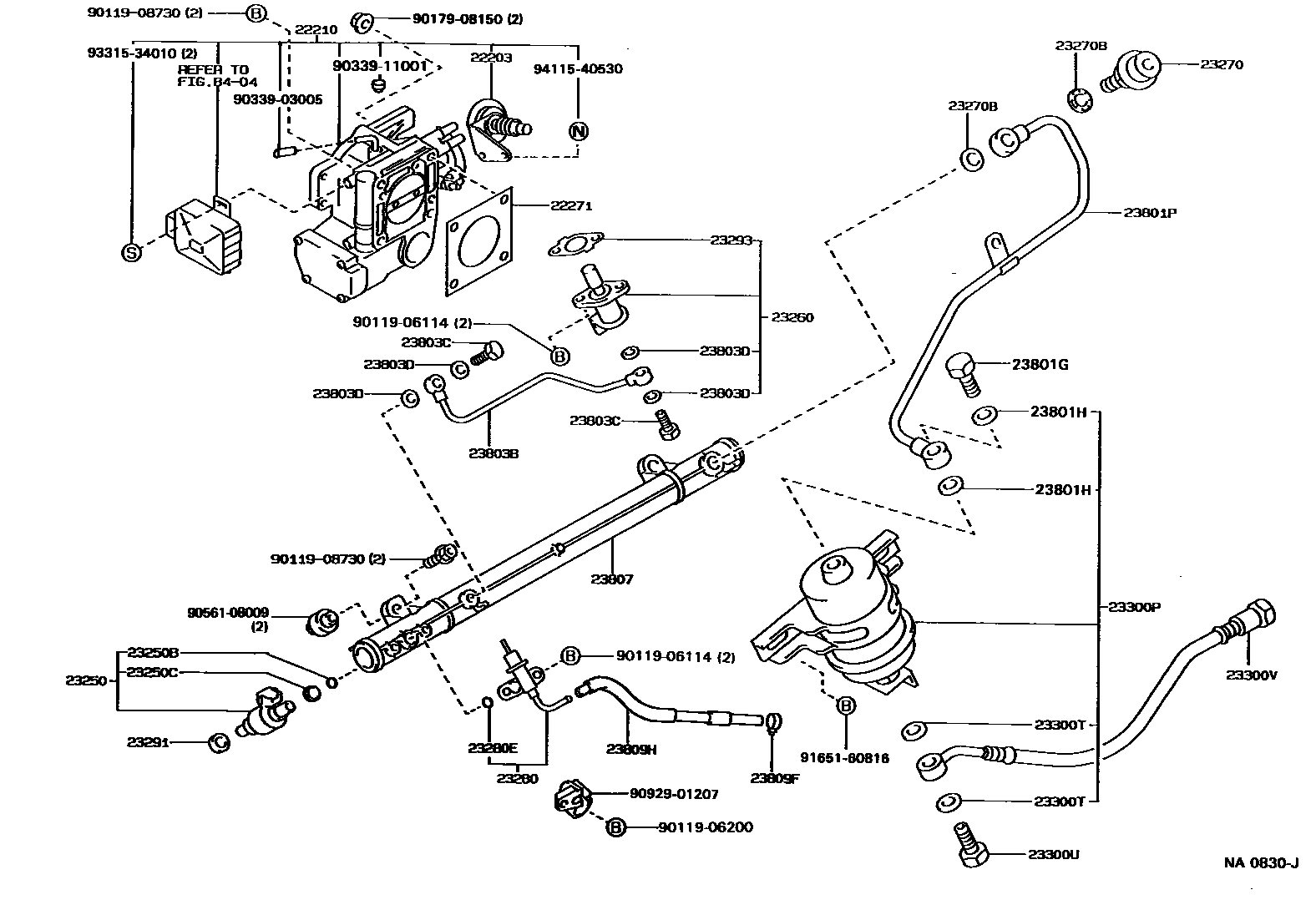

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22202-42210i7MGE..MX83198808-199302

main22203-41040i5ME..MX81198808-199302

main22203-70080i1GFE..GX81198808-199302

22210BODY ASSY, THROTTLE

main22210-42210i7MGE..MX83198808-199302

main22210-43280i5ME..MX81198808-199302

main22210-70250i1GFE..GX81198808-198912

sub22210-70310

main22210-70310i1GFE..GX81198912-199302

22271GASKET, THROTTLE BODY

main22271-41030i5ME..MX81198808-199302

sub22271-43020

main22271-42010i7MGE..MX83198808-198912

sub22271-42040

main22271-42040i7MGE..MX83198912-199302

main22271-70020i1GFE..GX81198808-199007

sub22271-70021

main22271-70021i1GFE..GX81199007-199302

23250INJECTOR ASSY, FUEL

main23209-43010i5ME..MX81198808-199302

main23209-70070i1GFE..GX81198808-199302

main23209-70080i7MGE..MX83198808-199302

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i1GFE..GX81198808-199302

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i5ME,7MGE..MX8#198808-199302

23260INJECTOR ASSY, COLD START FUEL

main23260-49085i5ME..MX81198808-199302

sub23260-49086

main23260-49105i7MGE..MX83198808-199008

sub23260-49106

main23260-49126i7MGE..MX83199008-199302

main23260-79145i1GFE..GX81198808-199007

sub23260-79146

main23260-79146i1GFE..GX81199007-199302

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-70040i5ME..MX81198808-199302

main23270-70060i1GFE..GX81198808-199302

sub23270-50010

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-28010i1GFE..GX81198808-199002

DAMPER SIDE

sub23232-41081

main23232-41081i1GFE..GX81199002-199302

DAMPER SIDE

main90430-12005i1GFE..GX81198808-198908

DERIVERY PIPE SIDE

main90430-12005i1GFE..GX81198908-199002

DELIVERY PIPE SIDE

main90430-12026i1GFE..GX81199002-199302

DELIVERY PIPE SIDE

main90430-17002i5ME,7MGE..MX8#198808-199007

main90430-17006i5ME,7MGE..MX8#199007-199302

23280REGULATOR ASSY, FUEL PRESSURE

main23280-41030i5ME..MX81198808-199302

main23280-42030i7MGE..MX83198808-199302

main23280-70080i1GFE..GX81198808-199302

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i1GFE..GX81198808-199302

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1GFE..GX81198808-199302

23293GASKET, COLD START INJECTOR

main23293-34020i5ME..MX81198808-199302

sub23293-43020

main23293-42010i7MGE..MX83198912-199302

main23293-70020i1GFE..GX81198808-199102

sub23293-70021

main23293-70021i1GFE..GX81199102-199302

main23293-74010i7MGE..MX83198808-198912

sub23293-42010

23300PFILTER, FUEL(FOR EFI)

main23300-49145i5ME,7MGE..MX8#198808-199302

main23300-79215i1GFE..GX81198808-199008

sub23300-79216

main23300-79216i1GFE..GX81199008-199302

23300TGASKET(FOR FUEL FILTER)

main90430-12005i1GFE..GX81198808-199107

main90430-12026i1GFE..GX81199107-199302

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i1GFE..GX81198808-199302

23300VHOSE, FUEL(FOR FUEL INLET)

main90923-01312i1GFE..GX81198808-199302

main90923-01316i5ME..MX81198808-199302

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12021i5ME,7MGE..MX8#198808-198903

sub90401-12097

main90401-12097i1GFE..GX81198808-199302

23801HGASKET(FOR FUEL PIPE)

main90430-12005i1GFE..GX81198808-199007

main90430-12026i1GFE..GX81199002-199302

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-42020i7MGE..MX83198808-199302

main23801-70060i1GFE..GX81198808-199302

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-43010i5ME..MX81198808-199302

main23803-70050i1GFE..GX81198808-199302

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90401-08003i1GFE..GX81198904-199302

main90401-08006i1GFE..GX81198808-198904

sub90401-08003

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90430-08005i1GFE..GX81198808-199002

main90430-08012i1GFE..GX81199002-199302

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-42020i7MGE..MX83198808-199302

main23807-45020i5ME..MX81198808-199302

main23807-70050i1GFE..GX81198808-199302

23809FCLIP(FOR FUEL PIPE SUPPORT)

main90467-13051i1GFE..GX81198808-199302

sub96135-51300

main96135-41300i5ME,7MGE..MX8#198808-199302

sub96135-51300

23809HHOSE, FUEL PIPE SUPPORT TO REGULATOR

main90447-15025i1GFE..GX81198808-199302

8404

9011906114

main90119-06114

9011906200

main90119-06200

9011908730

main90119-08730

9017908150

main90179-08150

9033903005

main90339-03005

9033911001

main90339-11001

9056108009

main90561-08009

9092901207

main90929-01207

9165160816

main91651-60816

9331534010

main93315-34010

9411540530

main94115-40530
