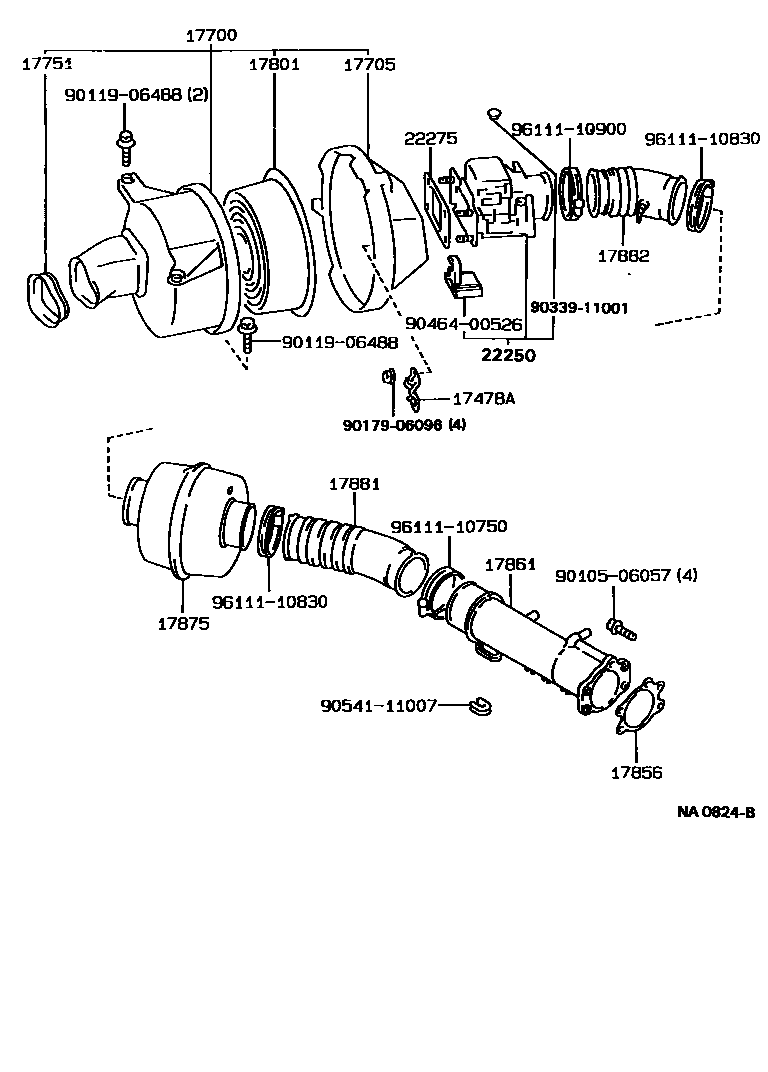

AIR CLEANER
17478APLATE, LOCK
17700CLEANER ASSY, AIR
W(HOT AIR INTAKE)
17705CAP SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17856GASKET, AIR INTAKE FLANGE
17861CONNECTOR, INTAKE AIR
17875PIPE, INTAKE AIR CONNECTOR
17881HOSE, AIR CLEANER, NO.1
W(HOT AIR INTAKE)
W(PRE AIR CLEANER)
17882HOSE, AIR CLEANER, NO.2
NO.1
NO.2
22250METER ASSY, INTAKE AIR FLOW
SINGAPORE SPEC
22275GASKET, AIR FLOW METER
9010506057
main90105-06057
9011906488
main90119-06488
9017906096
main90179-06096
9033911001
main90339-11001
9046400526
main90464-00526
9054111007
main90541-11007
9611110750
main96111-10750
9611110830
main96111-10830
9611110900
main96111-10900
21 parts on this diagram · 5 diagrams in section
