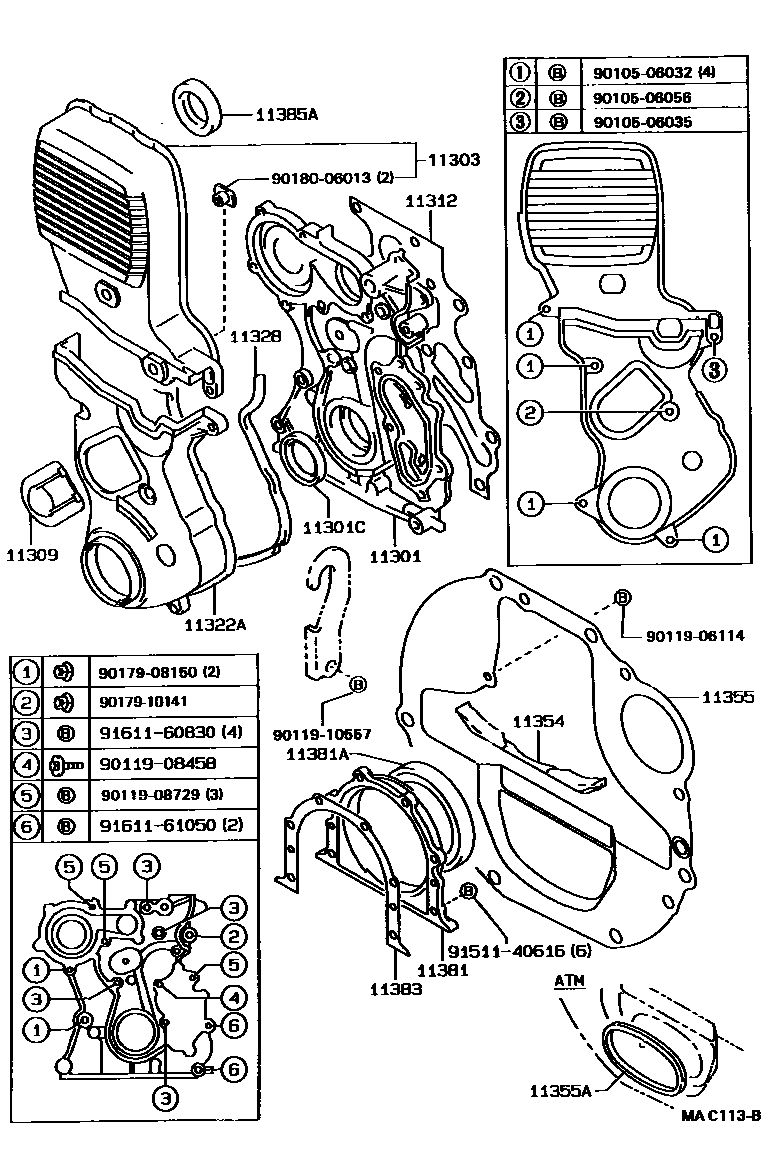

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-42010i7MGE..MX83198808-199302

main11311-54050i2L..LX80198808-199108

sub11311-54051

main11311-54051i2L..LX80199108-199302

sub11311-54052

sub15115-54022

main11311-70040i1GFE..GX81198808-199010

sub11311-79035

main11311-79035i1GFE..GX81199010-199302

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42003i7MGE..MX83198808-199302

sub90311-42026

main90311-42012i2L..LX80198808-199102

main90311-42026i2L..LX80199102-199302

main90311-45003i1GFE..GX81198808-199302

sub90311-45015

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-70020i1GFE..GX81198808-199302

11309COVER SUB-ASSY, TIMING BELT, NO.4

main11325-42010i7MGE..MX83198808-199302

main11325-88300i1GFE..GX81198808-199302

11312GASKET, FRONT END PLATE

main11312-42010i7MGE..MX83198912-199302

NO.1

main11312-43010i7MGE..MX83198808-198912

NO.1

sub11312-42010

main11312-54021i2L..LX80198808-199302

main11312-70013i1GFE..GX81198808-199009

sub11312-70014

main11312-70014i1GFE..GX81199009-199302

sub11312-70020

main11313-42010i7MGE..MX83198808-198912

NO.2

sub11313-42020

main11313-42020i7MGE..MX83198912-199302

NO.2

11322ACOVER, TIMING BELT, NO.1

main11302-70040i1GFE..GX81198808-199302

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-35020i22R..RX8#198808-199003

sub11328-35030

main11328-35030i22R..RX8#199003-199608

main11328-41010i5ME..MX81198808-199001

sub11328-43020

main11328-42010i7MGE..MX83198808-199302

main11328-43020i5ME..MX81199001-199302

main11328-54020i2L..LX80198808-198904

sub11328-54021

main11328-54021i2L..LX80198904-199302

main11328-70030i1GFE..GX81198808-199302

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i2L..LX80198808-199302

main11354-70010i1GFE..GX81198808-199302

11355PLATE, REAR END

main11355-35010i22R..RX8#..5F198808-199608

main11355-35030i22R..RX8#..4FC198808-199608

main11355-41010i5ME,7MGE..MX8#198808-199302

main11355-54030i2L..LX80..5F198808-199302

main11355-54040i2L..LX80..4FC198808-199302

main11355-70010i1GFE..GX81..5F198808-199302

main11355-70020i1GFE..GX81..4FC198808-199302

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01263i2L..LX80..4FC198808-199302

main90950-01307i1GFE..GX81..4FC198808-199302

main90950-01458i22R..RX8#..4FC198808-199608

11381RETAINER, ENGINE REAR OIL SEAL

main11381-38010i22R..RX8#198808-199608

main11381-43010i5ME,7MGE..MX8#198808-199302

main11381-54020i2L..LX80198808-199302

sub11381-54030

sub90116-08404

main11381-70010i1GFE..GX81198808-199302

11381ASEAL, ENGINE REAR OIL

main90311-75004i1GFE..GX81198808-198908

sub90311-75006

main90311-75007i1GFE..GX81198908-199302

main90311-80001i5ME,7MGE..MX8#198808-199302

main90311-80004i22R..RX8#198808-199006

sub90311-80010

main90311-80010i22R..RX8#199006-199608

main90311-85004i2L..LX80198808-199102

sub90311-85006

main90311-85006i2L..LX80199102-199209

sub90311-85009

main90311-85007i2L..LX80199209-199302

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-35020i22R..RX8#198808-199608

main11383-41010i5ME,7MGE..MX8#198808-199302

main11383-54020i2L..LX80198808-199107

sub11383-54030

main11383-54030i2L..LX80199107-199302

main11383-70010i1GFE..GX81198808-199009

sub11383-70011

main11383-70011i1GFE..GX81199009-199302

11385RETAINER, CAMSHAFT OIL SEAL

main11382-54020i2L..LX80198808-199302

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-35008i1GFE..GX81198808-199003

sub90311-35022

main90311-35013i1GFE..GX81199003-199302

ARS

sub90311-35022

main90311-35022i1GFE..GX81199003-199302

NOK

sub90311-35040

9010506032

main90105-06032

9010506035

main90105-06035

9010506056

main90105-06056

9011906114

main90119-06114

9011908458

main90119-08458

9011908729

main90119-08729

9011910557

main90119-10557

9017908150

main90179-08150

9017910141

main90179-10141

9018006013

main90180-06013

9151140616

main91511-40616

9161160830

main91611-60830

9161161050

main91611-61050

28 parts on this diagram · 6 diagrams in section
