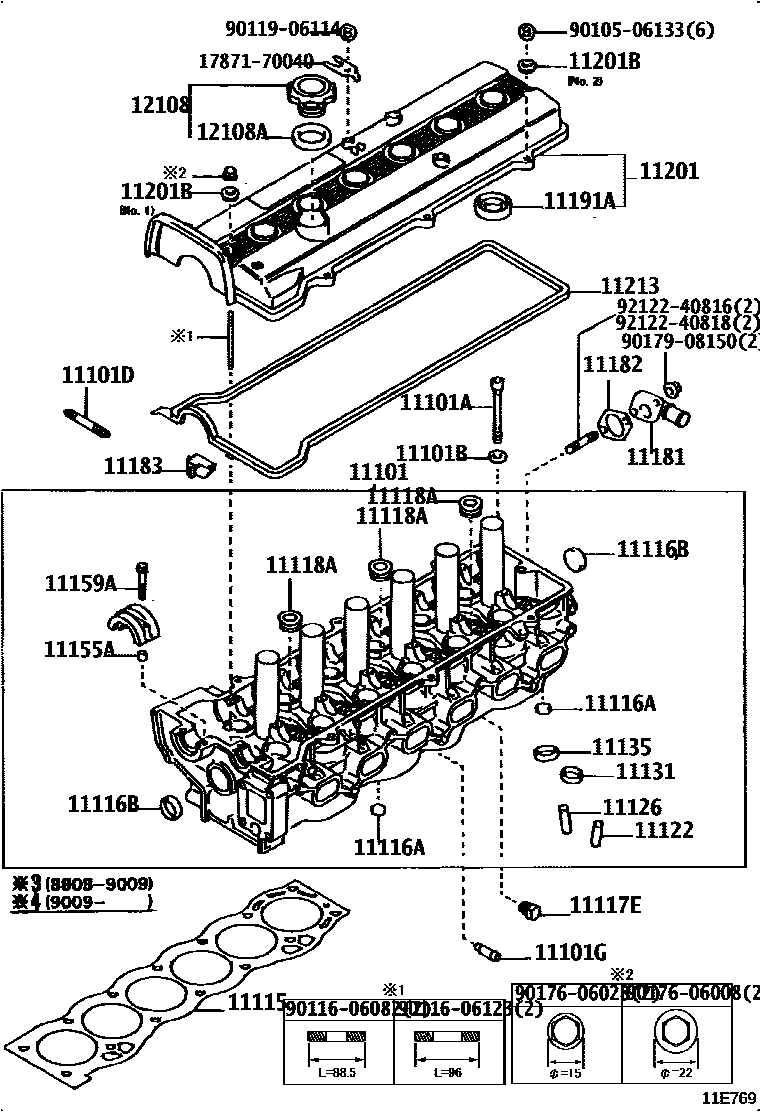

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1
NO.2
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101DBOLT, STUD(FOR WATER OUTLET)
11101GUNION(FOR CYLINDER HEAD)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11118APLUG, STRAIGHT, NO.1
11122BUSH, INTAKE VALVE GUIDE
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
STD
STD
O/S 0.05
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
11155APIN, RING W/HEAD
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
11183PLUG, SEMICIRCULAR
11191AGASKET(FOR SPARK PLUG TUBE)
11213GASKET, CYLINDER HEAD COVER
12108AGASKET(FOR OIL FILLER CAP)
1787170040STAY, AIR CONNECTOR
main17871-70040
9010506133
main90105-06133
9011606082
main90116-06082
9011606123
main90116-06123
9011906114
main90119-06114
9017606008
main90176-06008
9017606028
main90176-06028
9017908150
main90179-08150
9212240816
main92122-40816
9212240818
main92122-40818
36 parts on this diagram · 5 diagrams in section
