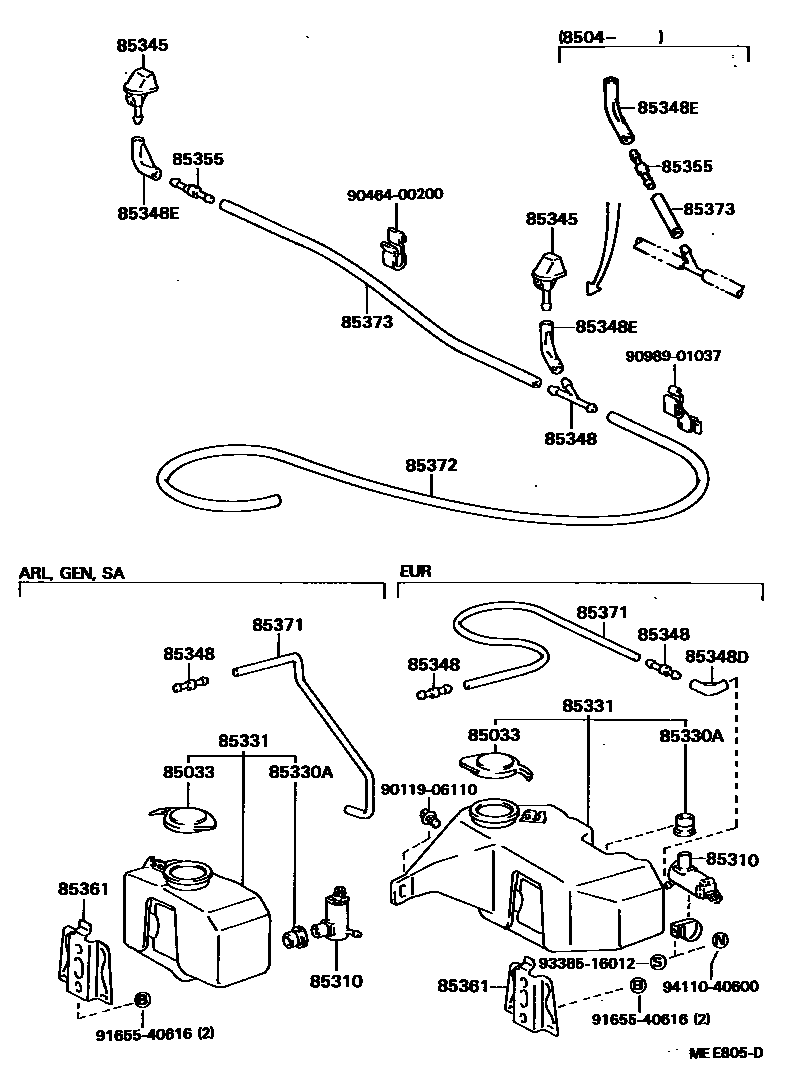

WINDSHIELD WASHER

0001 1 0002 1 0003 1

85033CAP ASSY, WINDSHIELD WASHER

main85332-12320iGX71,LX7#,MX7#,RX7#,YX70198408-198808

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA198408-198808

main85310-22080iGX71,LX7#,MX73..LHD..EUG198408-198608

W/O *HC

main85310-22130iGX71,LX7#,MX7#..LHD..EUR198411-198608

W/*HC

main85310-30080iMX73..RHD..EUG198408-198411

W/*HC

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGX71,LX7#,MX7#,RX7#,YX70198408-198808

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85331-22210iMX73..RHD..EUG198408-198608

W/*HC

main85331-22220iGX71,LX7#,MX7#..LHD..EUR198408-198608

W/*HC

main85331-22310iGX71,LX70,MX73,RX7#..LHD..(GEN,ME)198408-198808

main85331-22320iMX73..RHD..EUG198408-198608

W/O *HC

main85331-22340iGX71,LX7#,MX73..LHD..EUG198408-198608

W/O *HC

main85331-22360iGX71,MX73,RX70,72,YX70..RHD..(ARL,GEN,SA)198408-198808

85345NOZZLE, WINDSHIELD WASHER

main85035-22080iGX71,MX73,RX70..RHD198408-198411

sub85035-22160

main85035-22090iGX71,LX7#,MX73,RX70..(SED,WG)..LHD198408-198608

sub85035-22200

main85035-22150iGX71,MX73,RX70..HT198504-198608

sub85035-22220

main85035-22160iGX71,MX73,RX70,72,YX70..SA198411-198808

main85035-22190-01iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BLACK,BLACK

sub85035-22210

main85035-22190-05iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BEIGE-M,BEIGE METALLIC

sub85035-22210

main85035-22190-08iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

WHITE,SUPER WHITE 2

sub85035-22210

main85035-22200-01iGX71,LX70,MX73,RX7#..(SED,WG)..LHD198608-198808

BLACK,BLACK

sub85035-22220

main85035-22200-05iGX71,LX70,MX73,RX7#..(SED,WG)..LHD198608-198808

BEIGE-M,BEIGE METALLIC

sub85035-22220

main85035-22200-08iGX71,LX70,MX73,RX7#..(SED,WG)..LHD198608-198808

WHITE,SUPER WHITE 2

sub85035-22220

main85035-22220-01iMX73,RX72..HT198608-198808

BLACK,BLACK

main85035-22220-05iMX73,RX72..HT198608-198808

BEIGE-M,BEIGE METALLIC

main85035-22220-08iMX73,RX72..HT198608-198808

WHITE,SUPER WHITE 2

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iGX71,LX7#,MX7#,RX7#,YX70198408-198808

3 WAY

main85349-14010iGX71,LX7#,MX7#..LHD..EUR198408-198608

2 WAY,W/*HC

sub85334-22470

main85349-89122iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA198408-198808

2 WAY,NO.1

main85349-89122iGX71,LX7#,MX73..LHD..EUG198408-198608

2 WAY,W/O *HC

main85352-30221iGX71,MX73,RX72..RHD..(ARL,GEN)198709-198808

2 WAY,NO.2

main85355-87201iMX73..RHD..EUG198408-198608

2 WAY

sub85349-89122

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20070iMX73..RHD..EUG198408-198608

sub85355-14481

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481iGX71,LX7#,MX7#,RX7#,YX70198408-198808

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250iGX71,LX7#,MX7#,RX7#,YX70198408-198808

85361HOLDER, WINDSHIELD WASHER

main16611-22010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

main85961-22030iGX71,LX7#,MX7#..LHD..EUR198512-198608

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iGX71,LX7#,MX7#..LHD..EUR198408-198608

L=1100(*H,L=380),W/*HC

main90446-07001iGX71,LX70,MX73,RX7#..LHD198709-198808

L=1450(*H,L=70),NO.1,NO.2

main90446-07001iMX73..RHD..EUG198408-198508

L=1000(*H,L=240)

main90446-07001iGX71,LX7#,MX73..LHD..EUG198408-198608

L=1450(*H,L=300),W/O *HC

main90446-07001iMX73..RHD..EUG198508-198608

L=1800(*H,L=290)

main90446-07001iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,ME,SA198408-198808

L=1450(*H,L=320)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299iGX71,LX7#,MX7#,RX70,YX70198408-198504

L=1800(*H,L=450)

main90099-33299iGX71,MX73,RX70,72,YX70..RHD198504-198808

L=1800(*H,L=460)

main90099-33299iGX71,MX73,RX70,72,YX70..RHD198504-198808

L=1100(*H,L=500)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iGX71,LX7#,MX7#,RX70,YX70198408-198504

L=1000

main90446-06013iGX71,LX7#,MX7#,RX7#,YX70198504-198808

L=1450(*H,L=35)

9011906110

main90119-06110

9046400200

main90464-00200

9098901037

main90989-01037

9165540616

main91655-40616

9338516012

main93385-16012

9411040600

main94110-40600

19 parts on this diagram · 3 diagrams in section
