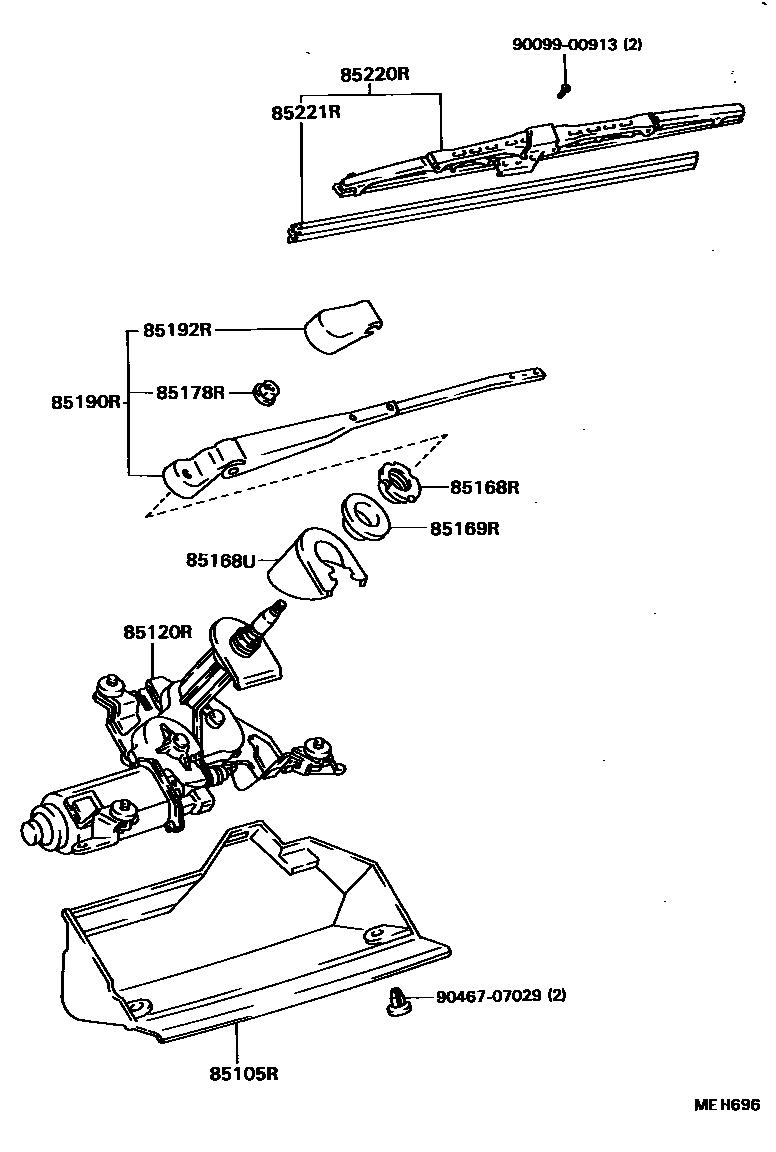

REAR WIPER

0001 1 0002 1

85105RPROTECTOR, REAR WIPER

main85105-22030iMX73..GTX198608-198808

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85110-22270iMX73..GTX198608-198804

sub85110-22271

main85110-22271iMX73..GTX198804-198808

main85120-22010iLX70,MX72,RX70,72..WG..GL198411-198805

sub85120-22011

main85120-22011iRX72..WG..GL198805-198808

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iRX72..WG..XL..ME198411-198808

main90179-22013iMX73..GTX198608-198808

85168UCOVER, REAR WIPER

main85168-22270-04iMX73..GTX198608-198808

BLUE,DARK BLUE

sub85168-22270

main85168-22270-12iMX73..GTX198608-198808

MAROON,MAROON

sub85168-22270

main85168-22270-15iMX73..GTX198608-198808

BEIGE,DARK BEIGE

sub85168-22270

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-22310iLX70,MX72,RX70,72..WG..GL198411-198808

main90210-28001iMX73..GTX198608-198808

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iRX70,72..WG..(GEN,SA)198411-198808

85190RARM ASSY, REAR WIPER

main85190-22470iMX73..GTX198608-198808

main85190-22570iRX70,72..WG..(GEN,SA)198411-198808

sub85241-23010

85192RCOVER, REAR WIPER ARM

main85192-14020iLX70,MX72,RX70,72..WG..GL198411-198808

sub85192-13060

85220RBLADE ASSY, REAR WIPER

main85220-12600iMX73..GTX198608-198808

sub85220-12601

main85220-22430iRX70,72..WG..(GEN,SA)198411-198808

sub85220-22531

85221RBLADE, REAR WIPER

main85221-16070iRX70,72..WG..(GEN,SA)198411-198808

sub85214-12H90

main85221-91C01iMX73..GTX198608-198808

sub85214-12H90

9009900913

main90099-00913

9046707029

main90467-07029

12 parts on this diagram · 2 diagrams in section
