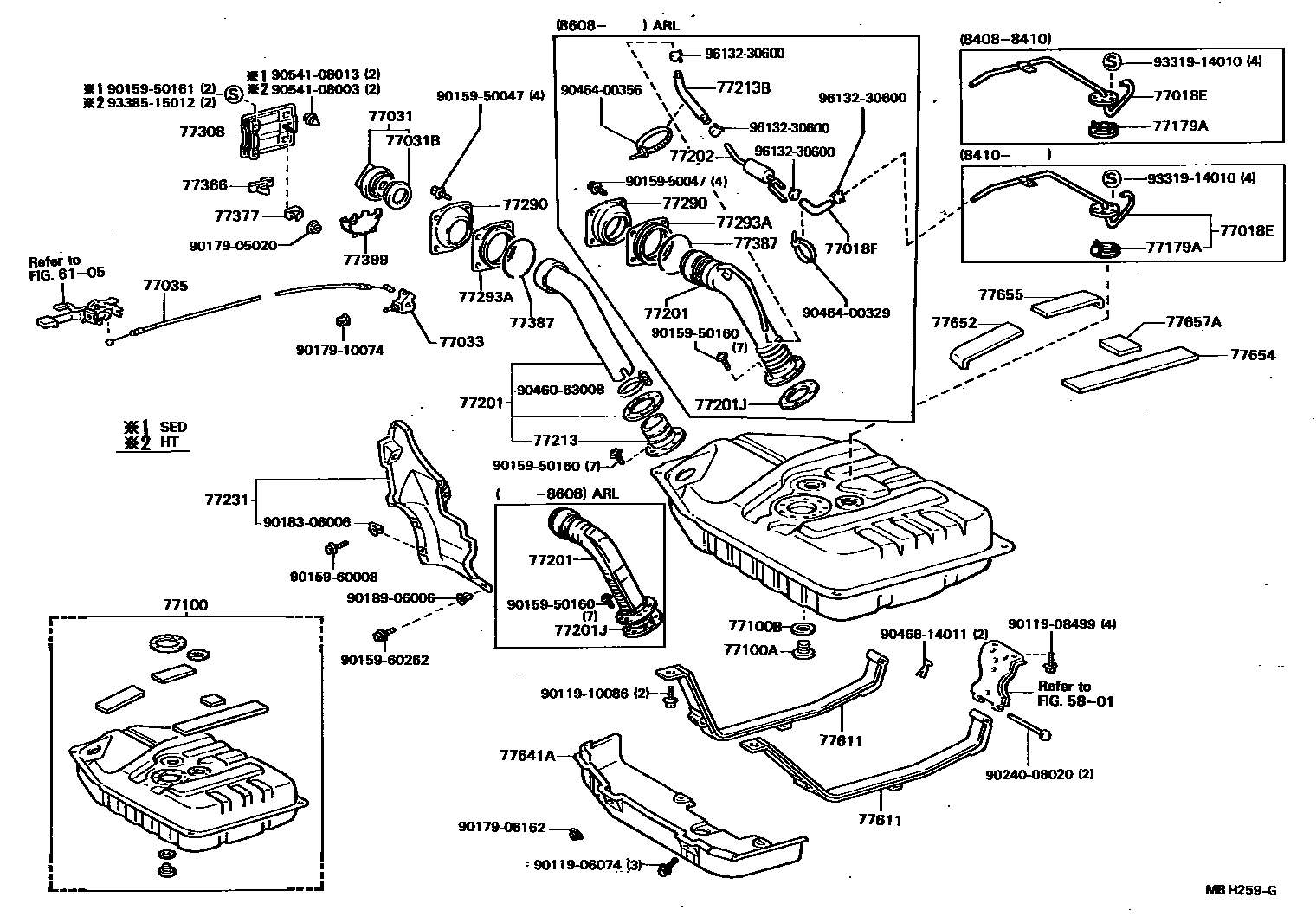

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0015 1 0016 1 0017 1

5801

6105

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-22020iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

sub77018-22030

main77018-23010iLX70,MX72,RX70,72..WG198411-198808

sub77018-23020

77018FHOSE, FUEL TANK EVAPORATION VENT

main77259-22050iMX73..ARL198608-198808

main95332-06010iRX72..WG..ME;LX70,MX72,RX70..WG198507-198702

L=100(*H,L=60)

sub95333-06010

main95333-06010iRX72198702-198808

L=100(*H,L=60)

77031CAP ASSY, FUEL TANK

main77310-12100iGX71,MX7#,RX70,YX70198408-198808

main77310-16011iMX73..ARL198508-198808

sub77310-12140

main77310-35061iLX7#198408-198808

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iGX71,LX7#,MX7#,RX70,YX70198408-198808

main77316-16010iMX73..ARL198508-198808

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

sub77037-90K00

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-22090iGX71,MX73,RX70,72,YX70..SA198408-198709

main77035-22110iGX71,LX7#,MX7#,RX70..LHD198408-198608

main77035-22130iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

sub77035-32070

main77035-22160iGX71,LX70,MX73,RX7#..LHD198608-198808

77100TANK ASSY, FUEL

main77001-23070iRX72..WG..ME198608-198808

main77001-29135iGX71,LX7#,MX73..HT,SED198408-198808

main77001-29155iRX70,YX70..HT,SED198408-198808

main77001-29185iRX70..WG198411-198506

main77001-29186iRX70..WG198506-198808

main77001-29195iLX70,MX72..EUR198411-198506

main77001-29196iLX70,MX72..EUR198506-198509

sub77001-29235

main77001-29235iLX70,MX72..EUR198509-198608

77100APLUG(FOR FUEL TANK)

main90341-20004iGX71,LX7#,MX7#,RX7#,YX70198408-198808

77100BGASKET(FOR FUEL TANK)

main90430-20007iGX71,LX7#,MX7#,RX7#,YX70198408-198808

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-14030iGX71,LX70,MX73,RX7#198408-198808

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22150iGX71,LX7#,MX73,RX70,YX70..HT,SED198408-198808

sub77201-22180

main77201-22160iMX73..ARL198508-198608

main77201-22161iMX73..ARL198608-198808

sub77201-22190

main77201-23010iLX70,MX72,RX70..WG198411-198506

main77201-23031iLX70,MX72,RX70,72..WG198509-198710

sub77201-23032

main77201-23032iRX72..WG198710-198808

main77201-23040iLX70,MX72,RX70..WG198506-198506

main77201-23050iLX70,MX72,RX70..WG198506-198509

77201JGASKET(FOR FUEL TANK INLET PIPE)

main77169-22020iMX73..ARL198508-198808

77202TUBE SUB-ASSY, BREATHER

main77015-22010iMX73..ARL198608-198808

main77224-23010iRX72..WG..ME;LX70,MX72,RX70..WG198507-198704

sub77224-23020

main77224-23020iRX70,72..WG198704-198808

77213HOSE, FUEL TANK SUB INLET

main77213-14090iGX71,LX7#,MX7#,RX70,YX70198408-198808

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-22070iMX73..ARL198608-198808

77231PROTECTOR, INLET TUBE

main77277-22050iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

main77277-23010iLX70,MX72,RX70,72..WG198411-198808

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-22020iGX71,LX7#,MX7#,RX7#,YX70..EUR,GEN,ME,SA198408-198808

main77290-22030iMX73..ARL198508-198808

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-22020iGX71,LX7#,MX7#,RX7#,YX70198408-198808

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-22060iGX71,MX73,RX70,72,YX70..SA198408-198808

sub77350-22080

main77350-22070iGX71,MX73,RX70..HT198504-198608

main77350-22080iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

main77350-22090iMX73,RX72..HT198608-198808

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iGX71,LX70,MX73,RX7#..ARL,GEN,ME198608-198808

main77377-22030iGX71,MX73,RX70,72,YX70..SA198408-198808

77387RING, FUEL INLET BOX

main77391-16010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

77399HANGER, FUEL TANK CAP

main77399-22010iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

77611BAND, FUEL TANK

main77601-22090iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

RH

main77601-23010iLX70,MX72,RX70,72..WG198411-198808

FR,RH

main77602-22110iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

LH

main77602-23010iLX70,MX72,RX70,72..WG198411-198808

FR,LH

main77603-23010iLX70,MX72,RX70,72..WG198411-198808

RR,RH

main77604-23010iLX70,MX72,RX70,72..WG198411-198808

RR,LH

77641APROTECTOR, FUEL TANK, NO.1

main77641-22060iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

main77641-23010iLX70,MX72,RX70,72..WG198411-198808

77652CUSHION, FUEL TANK, NO.1

main77651-22060iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

main77651-23010iLX70,MX72,RX70..WG198411-198502

sub77652-23010

77654CUSHION, FUEL TANK, NO.2

main77652-16080iRX72..WG198805-198808

main77652-22050iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

main77652-23010iLX70,MX72,RX70,72..WG198411-198805

sub77652-16080

77655CUSHION, FUEL TANK, NO.3

main77653-22050iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

main77653-23010iLX70,MX72,RX70,72..WG198411-198808

sub77652-23010

77657ACUSHION, FUEL TANK, NO.5

main77655-22060iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

main77655-23010iLX70,MX72,RX70,72..WG198411-198808

sub77652-23010

9011906074

main90119-06074

9011908499

main90119-08499

9011910086

main90119-10086

9015950047

main90159-50047

9015950160

main90159-50160

9015950161

main90159-50161

9015960008

main90159-60008

9015960262

main90159-60262

9017905020

main90179-05020

9017906162

main90179-06162

9017910074

main90179-10074

9018306006

main90183-06006

9018906006

main90189-06006

9024008020

main90240-08020

9046063008

main90460-63008

9046400329

main90464-00329

9046400356

main90464-00356

9046814011

main90468-14011

9054108003

main90541-08003

9054108013

main90541-08013

9331914010

main93319-14010

9338515012

main93385-15012

9613230600

main96132-30600

54 parts on this diagram · 14 diagrams in section
